Using the Carport Feature:
(Not available with Carefree One Touch
Awnings.)
1. Unlock and extend the awning as described
under "To Unlock the Awning" and under
"To Extend Awning."

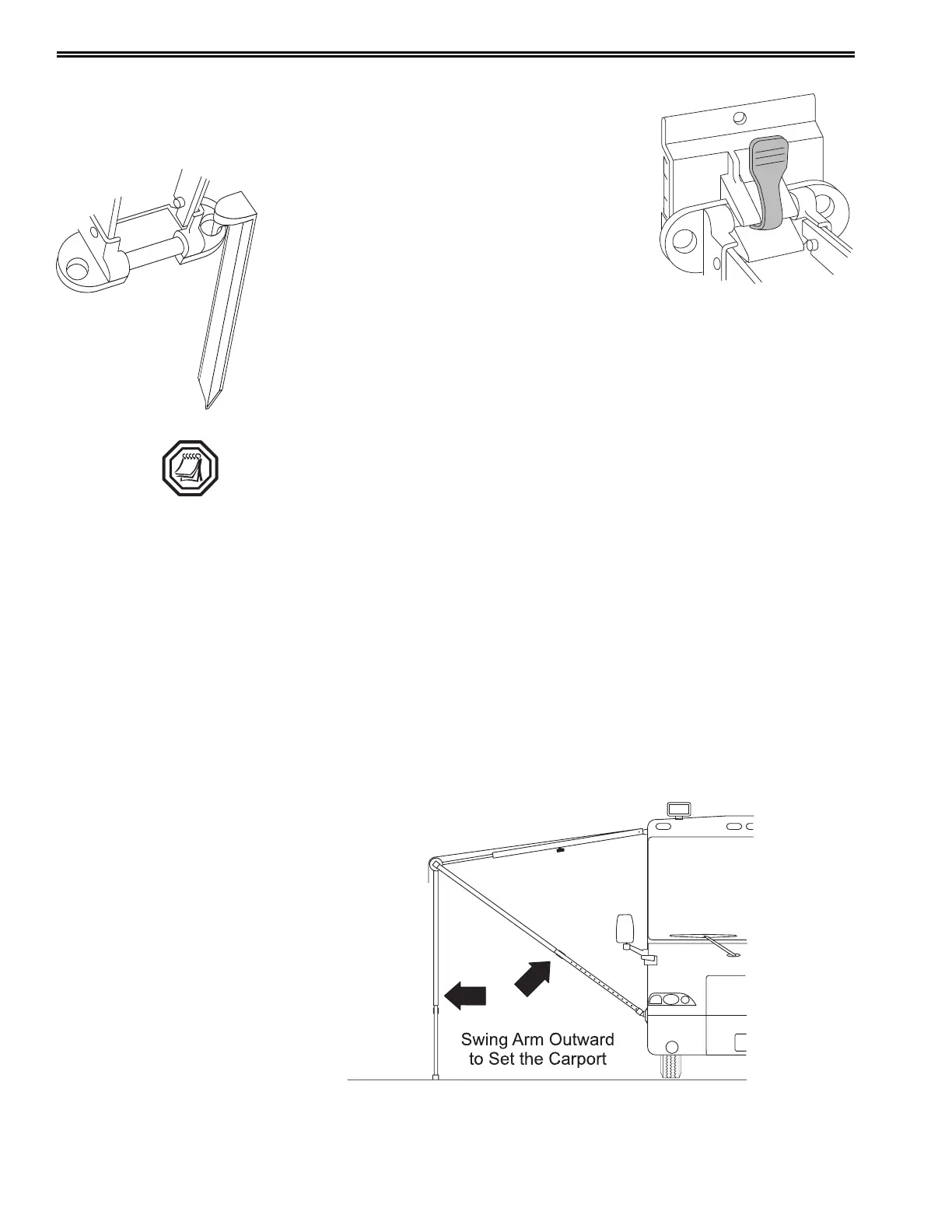

2. Unlatch the bottom of the rear arm by
pushing in on the lock handle on the arm
bracket. Swing the arm away from the
motorhome to an upright position.
3. Drive the stakes through the bottom holes in the arm.
4. Raise the rear arm extension lock handle all the way up or
to the desired height and lower the lock handle to lock the
arms in place.
5. Repeat instructions 2 through 4 for the front arm.
NOTE: To move the awning out of the carport position
reverse the above steps.
Securing the Awning for Travel:
Before traveling, check the following:
1. The awning is fully retracted against the sides of the
motorhome.
2. The black locking knobs are tightened.
3. The brake control is in the full down (locked) position, and no
red warning is showing.
4. The storage locks are down and in the locked position.
5. The bottom of the front and rear arms is latched properly into
the bottom brackets.
6. The awning pull rod is stored away.
