216 | Section 5 Equipment -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ----------------- Monarch SE 2004

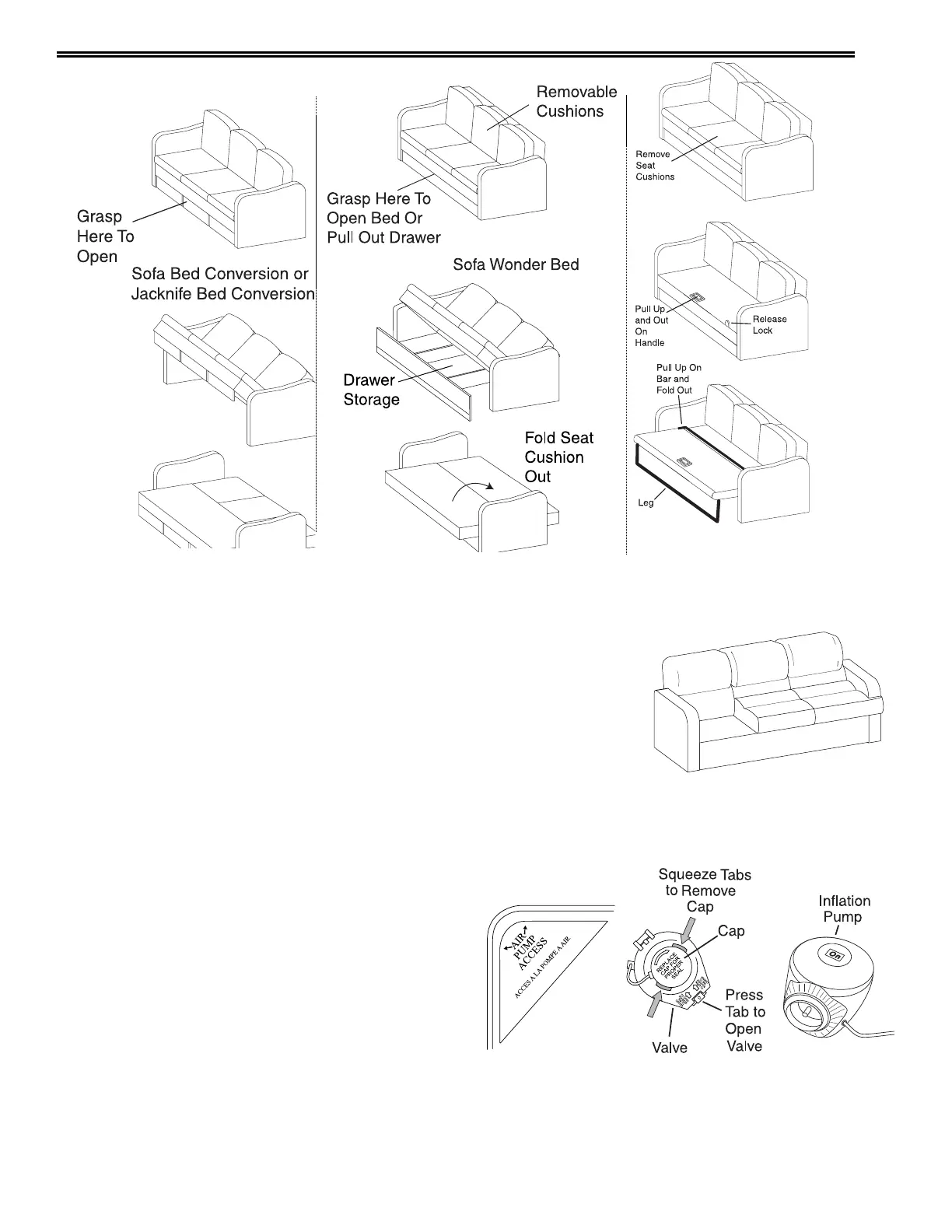

Air Coil Mattress:
The Air Coil Mattress inflates and deflates in a
matter of seconds. Use the hand-held electric
pump to inflate the mattress. The pump operates
from any 120 Volt AC outlet.
To Inflate the Mattress:
1. Remove and store the seat cushions.
2. Open the Convertible Sofa allowing the mattress to lie flat.
3. Unzip the corner of the mattress labeled Air Valve Access
to access the valve.
4. Ensure the valve is locked
firmly in place.
5. Open the cap on the valve.
6. Place the pump on the valve
and turn ¼ turn locking the
pump in the valve.
7. Plug in the pump motor to
inflate to a desired firmness.
8. Remove the handheld pump,
replace the valve cap
and zip the mattress cover.
9. Place bedding items on the mattress.
020222e
Standard Sofa Bed
Magic Bed
Convertible Sofa
020222f
020222d
020260
020260b
