Monarch SE 2004------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ S e ction 2 Driving & Safety | 81

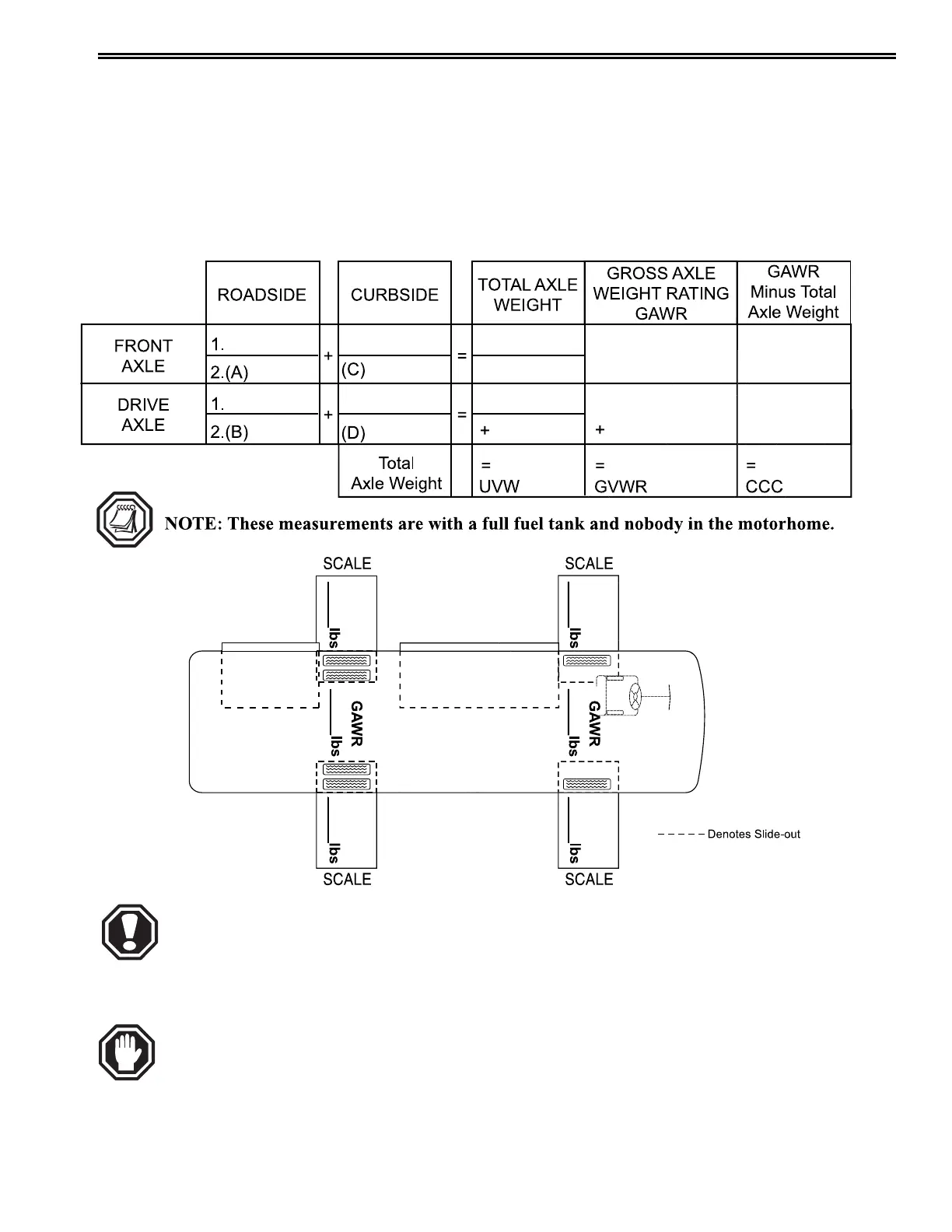

• Refer to the Tire Chart (Tire size 295/80R22.5). Use the highest actual
weight, Scale B or D, line 2. Example 7,100 lbs. Determine the proper tire
pressure for each tire using the Load Inflation chart. Example: 115 psi or
stamp on the sidewall of the tire.
• Repeat above procedures to determine front axle Scale A and C, tire pressures.
WARNING: Improperly inflated or overloaded tires can cause a
blowout. An overloaded axle can cause a component failure of the
suspension system. Tire blowout or broken suspension components
can lead to loss of vehicle control resulting in property damage,
personal injury or death.
CAUTION: If actual weight carried by any tire is below the tire
chart weight specification minimum tire pressure the minimum
inflation pressure must be maintained. Tire pressure below the
minimum inflation pressure can overheat and damage the tire
casing leading to premature tire failure or blowout.
6,500 6,500 13,000
5,000 4,000 9,000 13,000 4,000
10,000 10,000 20,000
7,100 6,900 14,000 20,000 6,000
23,000 33,000 10,000
020255b
