M Series AC Servo
User Manual
119
Rev. 1.1
9/13/2021
400-820-9661

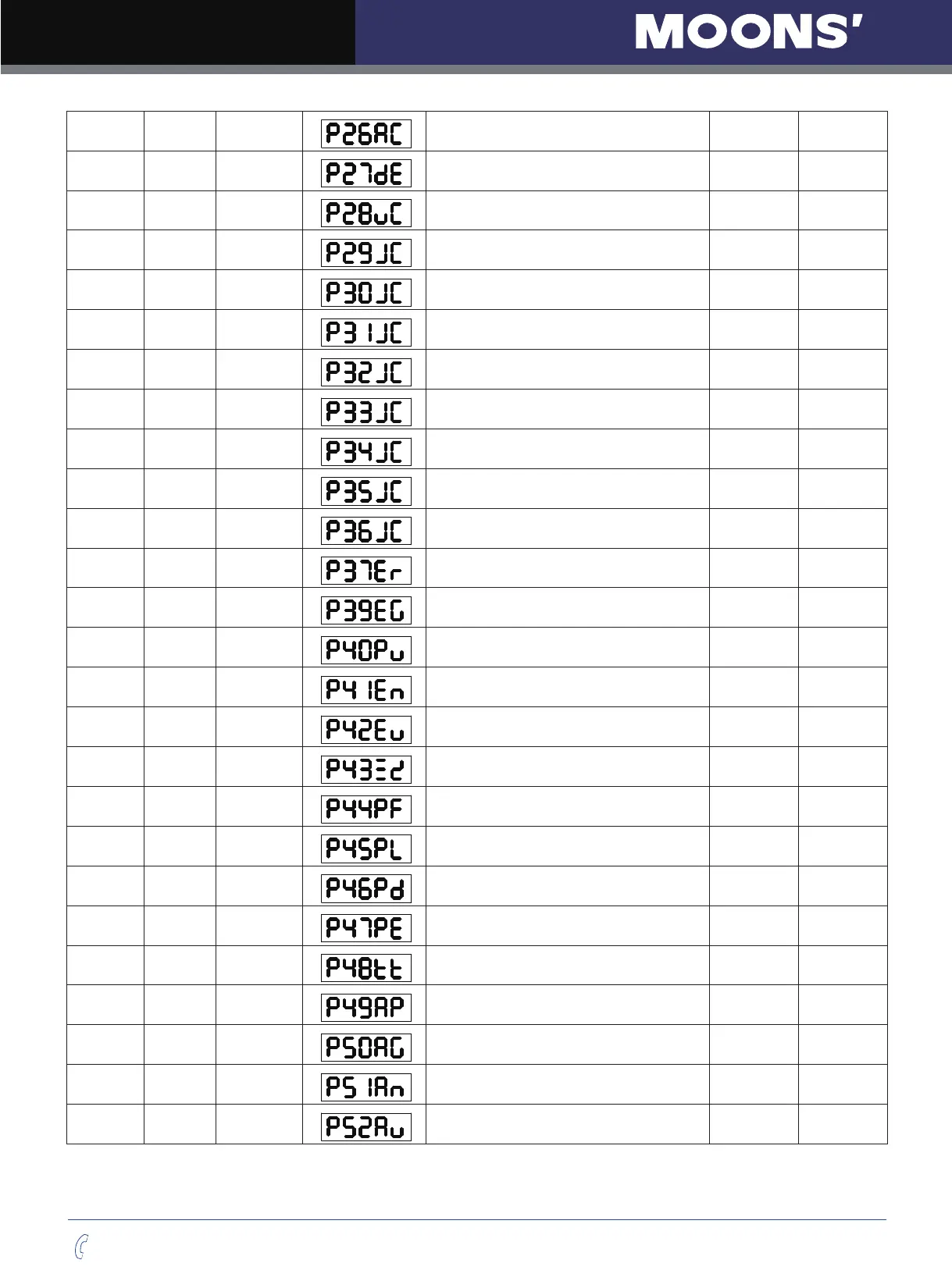

P26 Prole AC Point to point acceleration 100.00 rps/s
P27 Prole DE
Point to point deceleration 100.00 rps/s
P28 Prole VC
Point to point secondary velocity 2.000 rps
P29 Prole JC1
Jog mode speed 1 2.000 rps
P30 Prole JC2
Jog mode speed 2 10.000 rps
P31 Prole JC3
Jog mode speed 3 20.000 rps
P32 Prole JC4
Jog mode speed 4 25.000 rps
P33 Prole JC5
Jog mode speed 5 30.000 rps
P34 Prole JC6
Jog mode speed 6 35 rps
P35 Prole JC7
Jog mode speed 7 40.000 rps
P36 Prole JC8
Jog mode speed 8 50.000 rps
P37 Cong ER
Encoder resolution 10000 counts/rev
P39 Cong EG
Electronic gearing 10000 counts/rev
P40 Cong PV
Secondary Electronic gearing 10000 counts/rev
P41 Cong EN
Numerator of electronic gearing ratio 1000
P42 Cong EU
Denominator of electronic gearing ratio 1000
P43 Cong SZ
Input Pulse Setting 1792
P44 Cong PF
Position Fault limit 2000 counts
P45 Cong PL
Dynamical Position error Range 10 counts
P46 Cong PD
In Position Error Range 10 counts
P47 Cong PE
In position duration count 10 counts
P48 Cong TT
Pulses Input Completion count 2 ms
P49 Analog AP
Analog Position Gain 8000 counts
P50 Analog AG
Analog Velocit Gain 20.000 rps
P51 Analog AN
Analog Torque Gain 1.00 A
P52 Analog AV1
Analog input1 o󰀨set 0.000 V
* : This parameter depends on motor models.
