Motorola ASTRO XTSTM 2500 Basic Service Manual

Radio Alignment Procedures
32
4. Repeat the above process for all frequencies.
Click on the “Program All” button to save the tuned values in the radio.
Bit Error Rate
Definition This screen is used to test the Bit Error Rate (BER) of the radio’s receiver at a
desired frequency.
Bit Error Rate
Fields
This screen contains the following fields:
Rx Frequency:
This field selects the Receive Frequency directly in MHz.

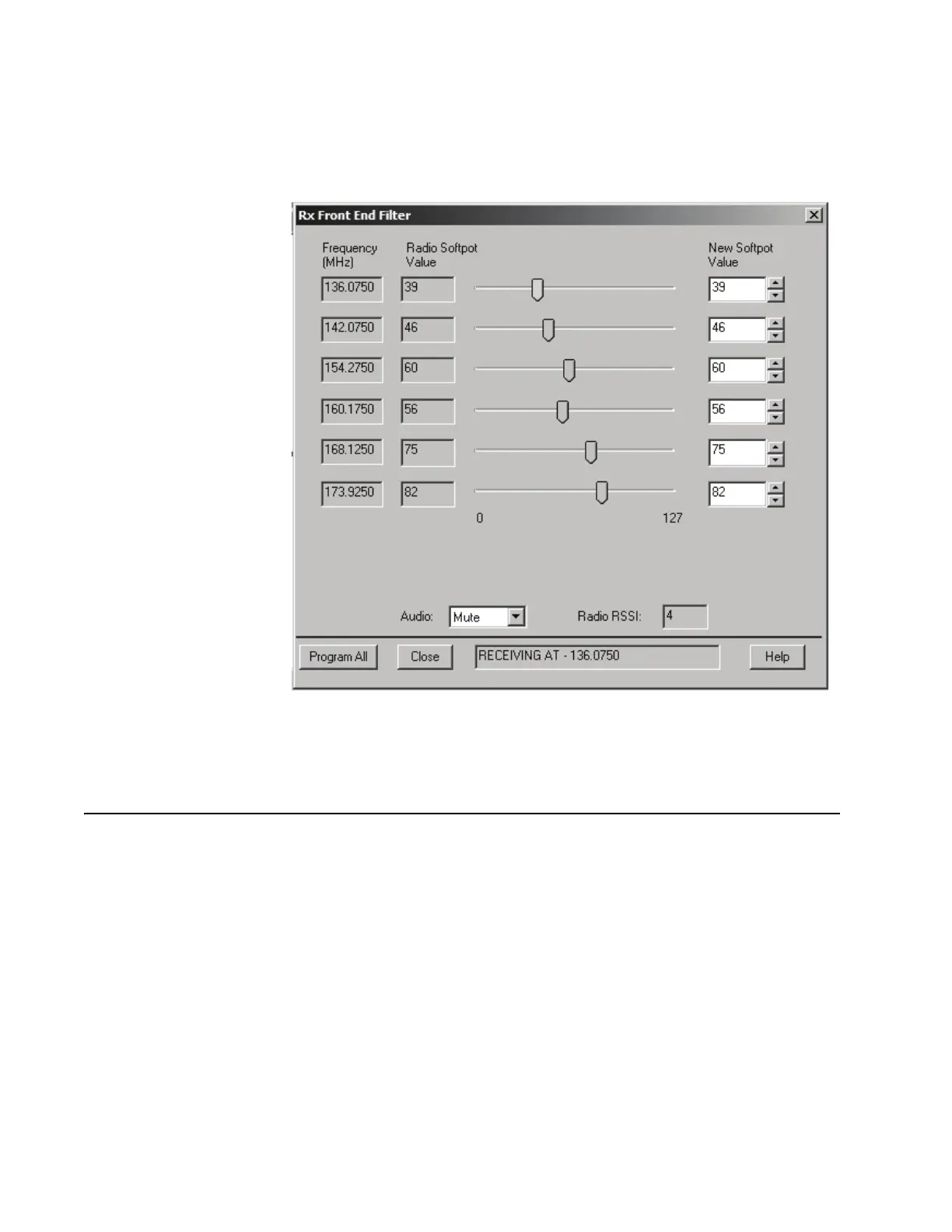

Figure 12. Front End Filter Alignment Screen
