Disassembly/Assembly
44
Remove the Belt
Clip
1. Use a flat-bladed object to press the belt clip tab away from the battery.
2. Slide the belt clip upward to remove it.
Universal
Connector Cover
The universal connector cover is located on the antenna side of the radio. It is used
to cover the connector when not in use.
NOTE: To prevent damage to the connector, shield it with the connector
cover when not in use.
Remove the
Universal
Connector Cover
1. Insert a flat-blade screwdriver into the area between the bottom of the cover
and the slot below the connector.
2. Hold the top of the cover with your thumb while you pry the bottom of the
cover away from the radio with the screwdriver.

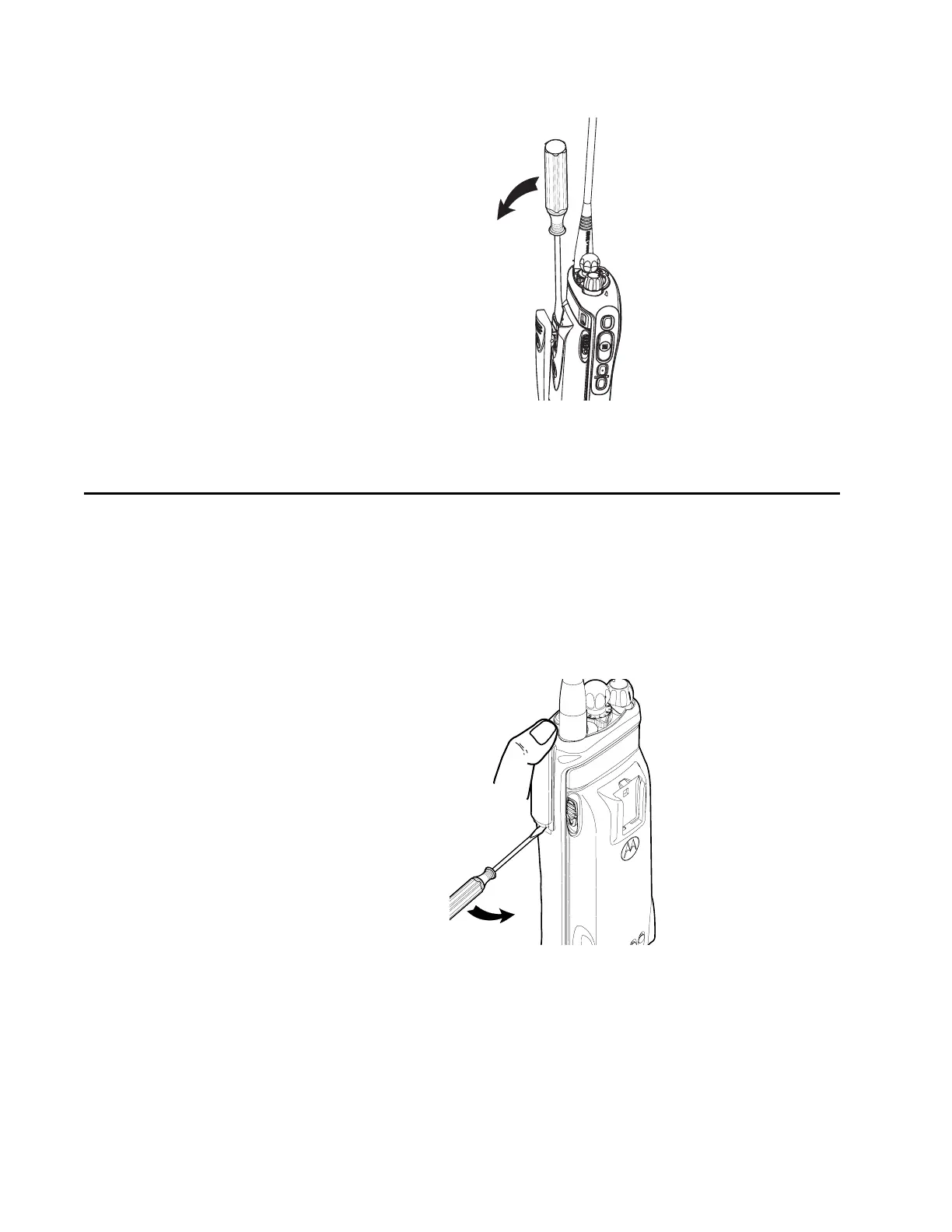

Figure 22. Removing the Belt Clip
Figure 23. Removing the Universal Connector Cover
