Motorola ASTRO XTSTM 2500 Basic Service Manual

XTS 2500/XTS 2250/XTS 1500/ MT 1500/PR 1500 Exploded Views and Parts Lists
39

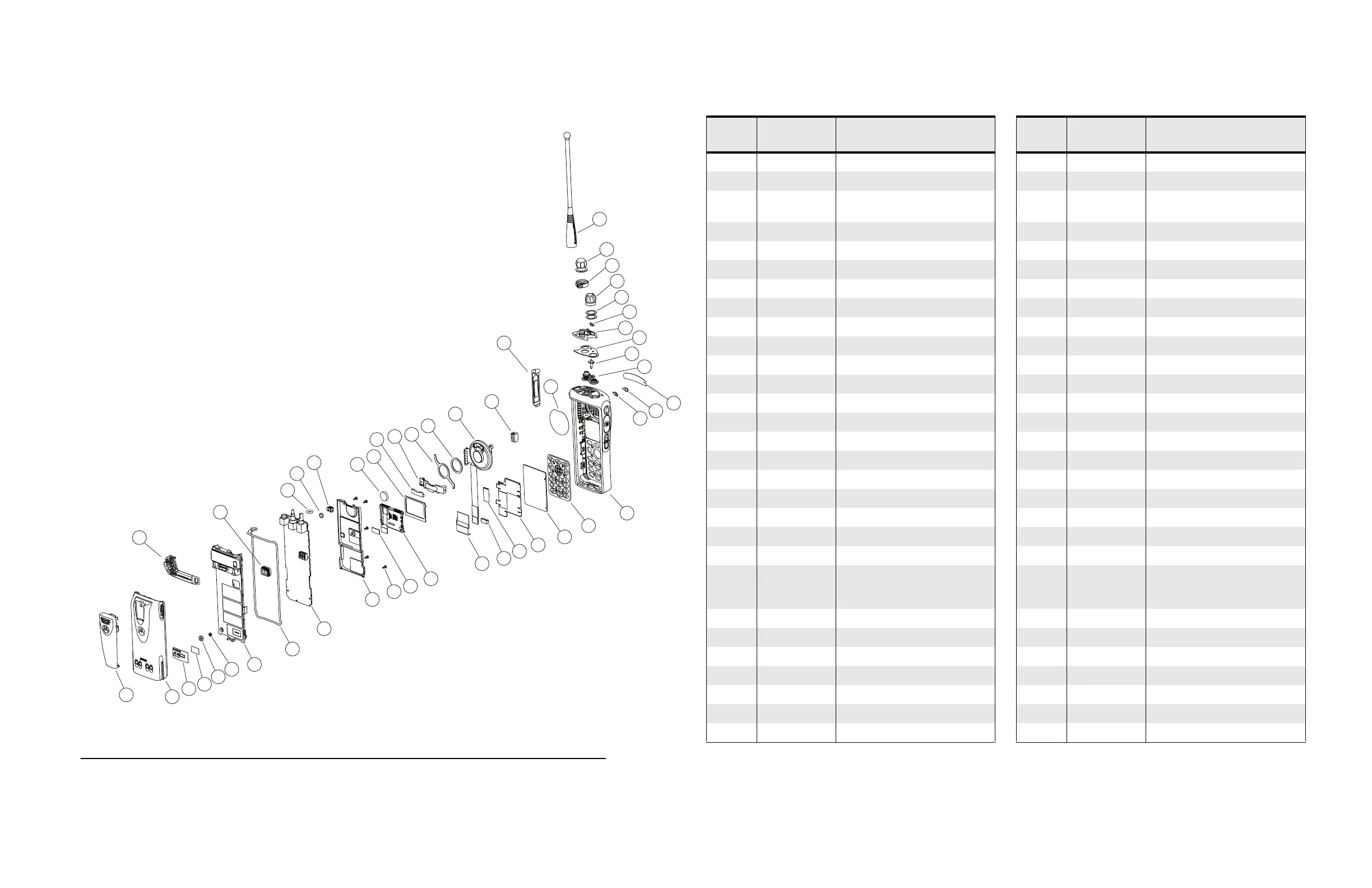

XTS 2500 Model III / XTS 2250 Advanced Model Exploded View
21
22
23
24
25
26
27
28
29
30
31
32
33
48
47
46
45
44
43
42
41
40
39
38
37
36
35
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
34
Table 15. XTS 2500 Model III / XTS 2250 Advanced Model Exploded View Parts List
Item
Number
Motorola Part
Number
Description
Item
Number
Motorola Part
Number
Description
1 1578458A04 Cover, Assy, Front Model III 27 7585915C01 Pad Shock LCD
2 7516330H01 Keypad, Full 28 7585737D01 Pad Shock
3 0104021J68 Assem Board Model III Full
Keypad
29 4385717D01 Spacer, Plastic
4 4216345H01 Retainer 30 4285446D01 Retainer Speaker
5 2671104L01 Gasket, EMI/FRI, Plas-Polyu 31 7516153H01 Pad, Speaker Retainer
6 2616342H02 EMI Shield, Elec Cond. Gasket 32 8416579H01 Board, Circuit, Flex Speaker Mic
7 8416620H01 Board Flex Jumper 33 1485218D01 Boot, Mic
8 7285726C04 Disp, Flat Panel, LCD MDL 34 3585339D01 Speaker Mesh
9 7585011E01 Pad, LCD IC 35 3216389H01 Membrane, Microphone
10 0385563D01 Screw 36 3516396H01 Mesh Microphone, Front
11 2616192H02 Shield Main 37 3316396H01 Nameplate, Front
12 Typical Main Board 38 3216348H01 Sel, Top Control
13 3216366H01 Seal, Main 39 6116359H01 Light Pipe
14 PMLN5005_ Chassis Assembly (Immersible) 40 1116352H01 Adhesive, Top Control
PMLN5006_ Chassis (Standard) 41 1385783C01 Escutcheon, Top
15 3216463H01 Seal Base Plate 42 1385855C01 Label, ABC
16 0286165A03 Nut, Spanner 43 0485667D01 Washer Teflon
0216965H01 Nut, Spanner (Non-Submersible) 44 3680529Z01 Knob, Volume
17 3216155H02 Seal, Port 45 4585782C01 Lever Secure
18 3316152H01 Label, Seal 46 3685779C01 Knob Frequency (w / d-clip)
19 Typical Battery 47 Typical Antenna
NNT6263_ NiMH ultra-high-capacity, Factory
Mutual Intrinsically Safe,
Immersible
48 1505579Z01 Cover, Dust, Universal Connector
20 Typical Belt Clip
21 4385665D01 Adaptor, Remote Speaker Mic
22 3280534Z03 Seal, Cust, Slcn Rub
23 3285027E01 O-Ring Freq Switch
24 6003710K08 Battery, Backup
25 4285633D01 Retaining Clip
26 7516825H01 Shield, Poron
