Motorola ASTRO XTSTM 2500 Basic Service Manual

Disassembly/Assembly
55
the speaker or the microphone, or both, do it while the flex circuit is removed from
the front cover.
Radio
Reassembly—
Detailed
The following steps describe how to reassemble the radio. This includes the
following major components:
• Keypad/option board
• Display
• Speaker, microphone, universal connector flex
• Chassis
• Backup Battery
• Chassis and front cover

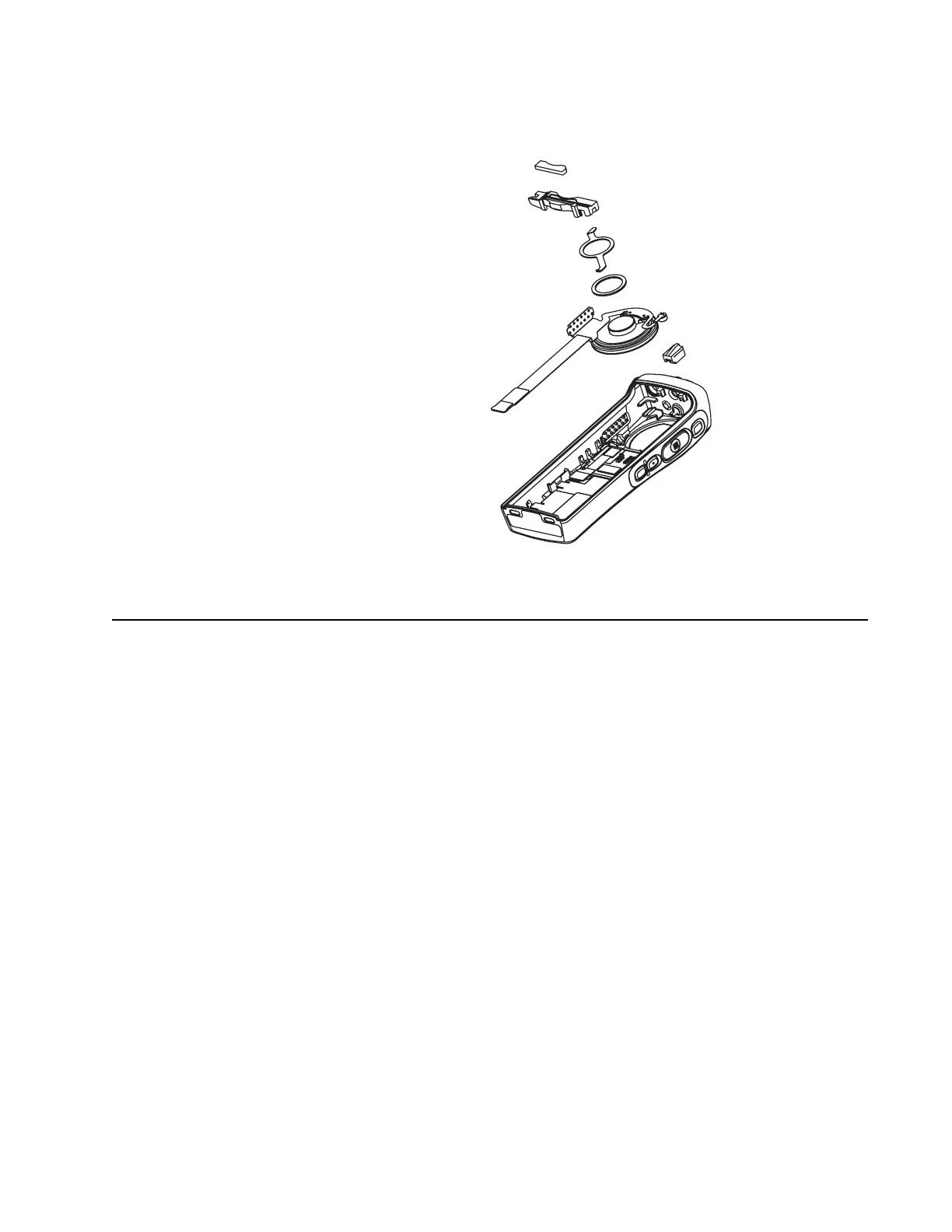

Figure 37. Speaker-Microphone Removal
