Radio Alignment Procedures
34
NOTE: When Continuous Operation = No, a wait cursor will be displayed
while the test is in progress and return to normal when the test is
done.
Transmitter Test
Pattern
Definition This screen is used to transmit specific test patterns at a desired frequency so that
the user can perform tests on the radio’s transmitter.
Transmitter Test
Fields
This screen contains the following fields:
Tx Frequency:
This field selects the Transmit Frequency directly in MHz.
Channel Spacing:
This field allows the user to select the desired transmit deviation.
Test Pattern Type:
This field represents the type of test pattern which will be transmitted by the radio
when “PTT TOGGLE” button is pressed.

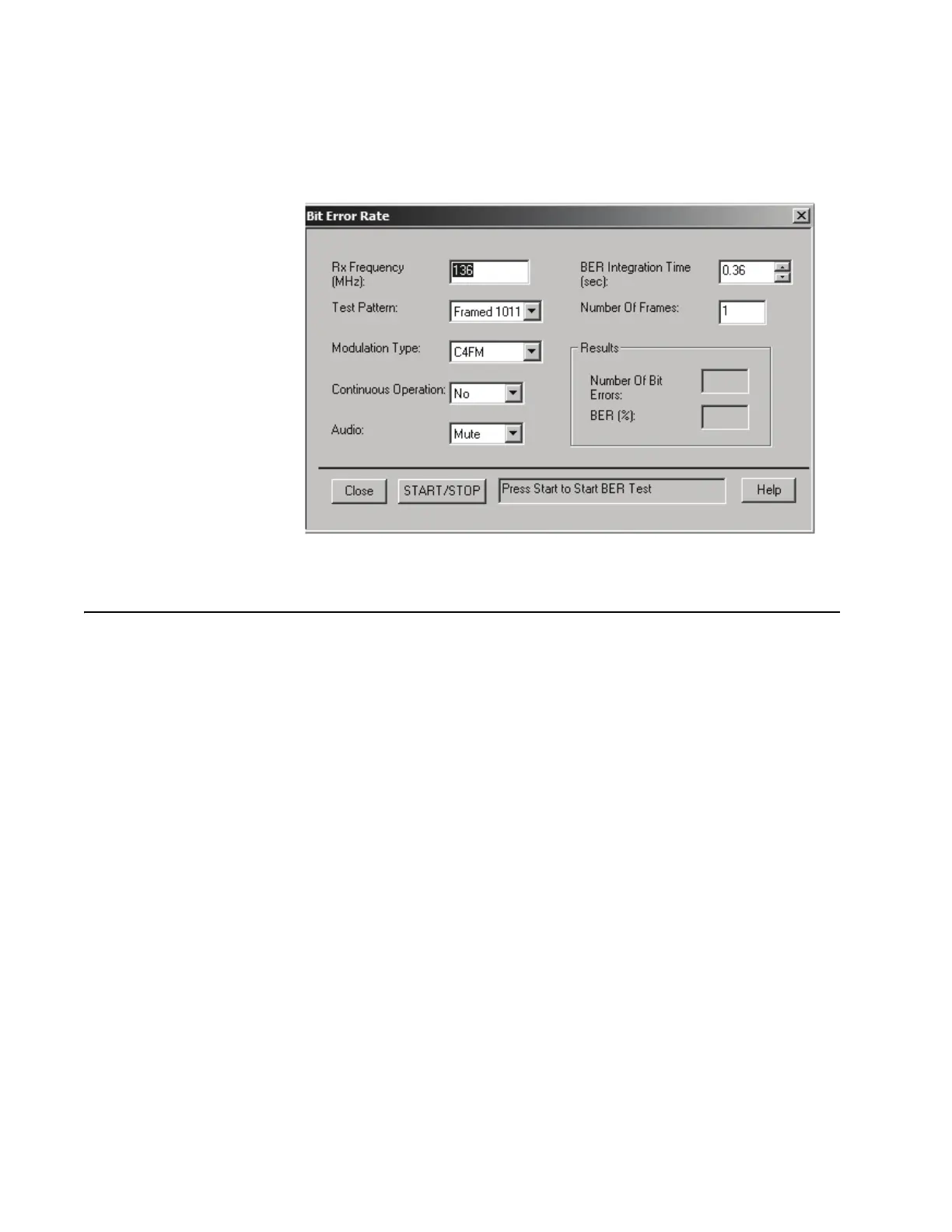

Figure 13. Bit Error Rate Screen
To Next Page
