Motorola ASTRO XTSTM 2500 - Attach the Universal Connector Cover; Remote Speaker Microphone Adapter; Figure 24. Attaching the Universal Connector Cover; Figure 25. Removing the RSM Adapter

Disassembly/Assembly
45
Attach the
Universal
Connector Cover
1. Insert the, hooked end of the cover into the top of the connector.
2. Press downward on the top of the cover to seat it into the slot.
3. Press the lower tab of the cover below the connector until it snaps in place.
Remote Speaker
Microphone
Adapter
The Remote Speaker Microphone (RSM) adapter is located on the back of the
radio, just above the battery. It must be used to connect the RSM to the radio.
If the RSM is not used, the adapter must be removed.
Remove the
Adapter
Lift the larger side (below the antenna port) of the adapter away from the radio
using your finger.
If you cannot easily remove the adapter with your finger, use a small, flat bladed
screwdriver to pry the larger end side of the adapter away from the radio.

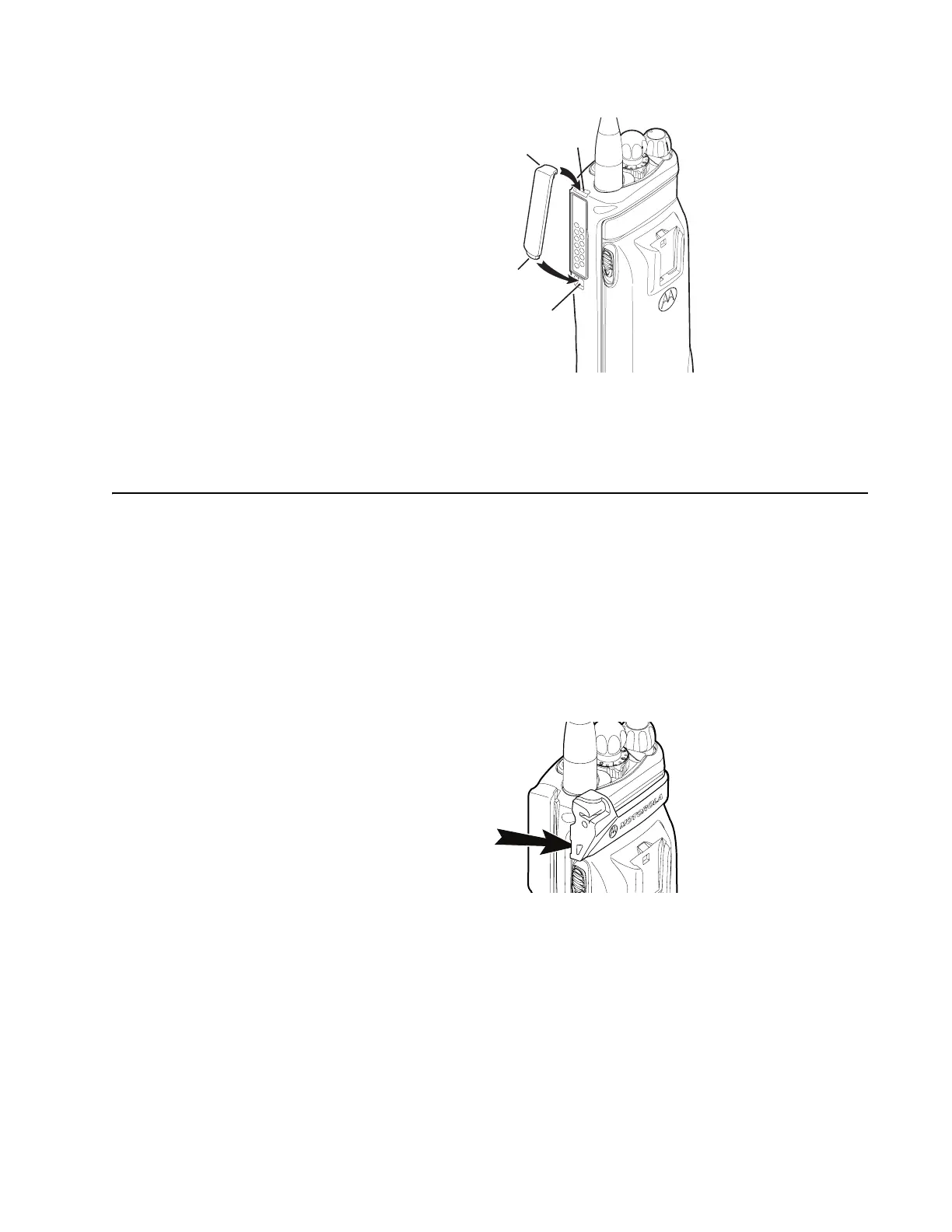

Figure 24. Attaching the Universal Connector Cover
To p
Slot
Bottom
Tab
Slot
Hooked End
Figure 25. Removing the RSM Adapter
