Motorola ASTRO XTSTM 2500 Basic Service Manual

XTS 2500/XTS 2250/XTS 1500/ MT 1500/PR 1500 Exploded Views and Parts Lists
40

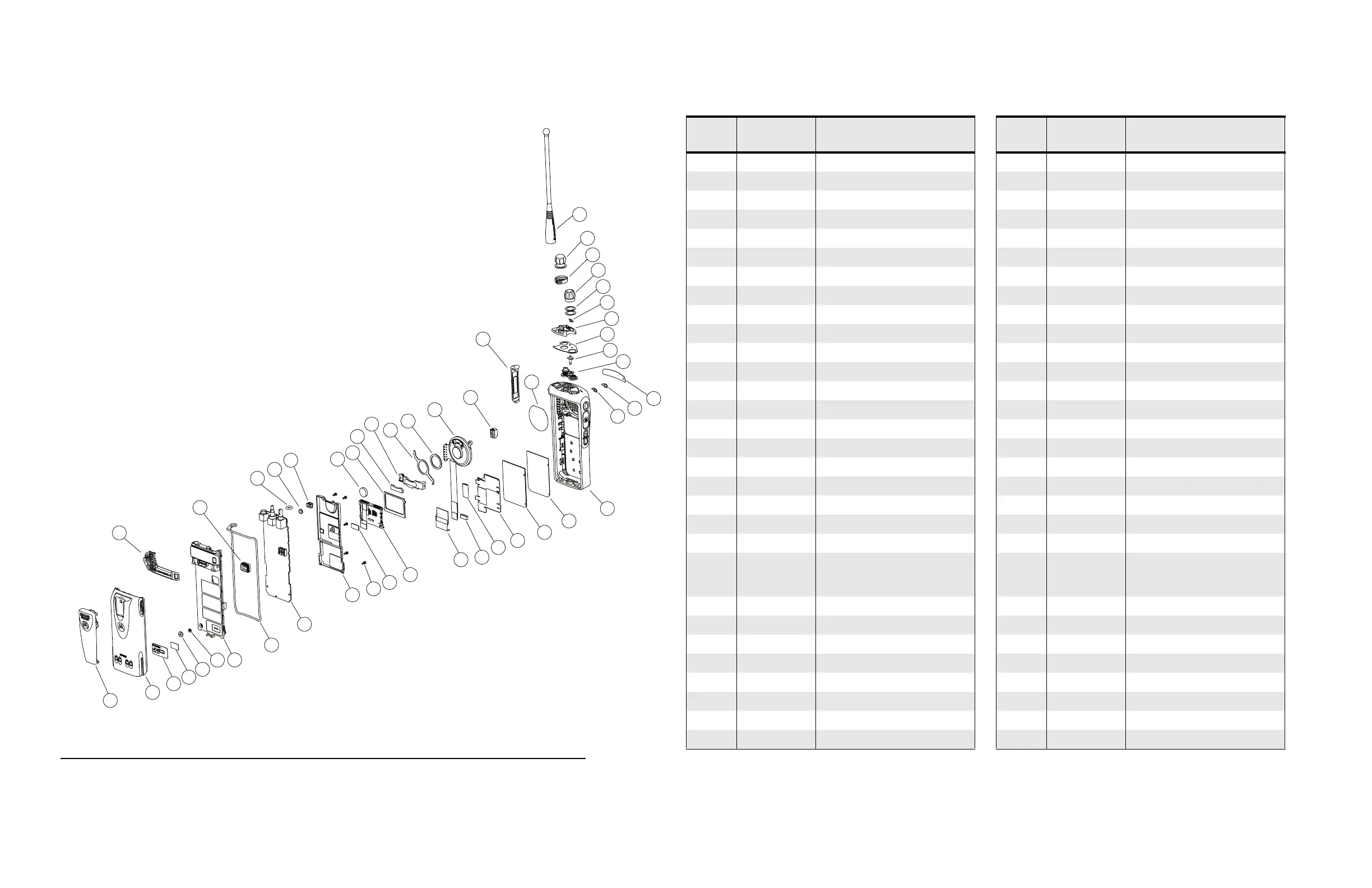

XTS 2500 / XTS 2250 Model 1.5 Exploded View
21
22
23
24
25
26
27
28
29
30
31
32
33
48
47
46
45
44
43
42
41
40
39
38
37
36
35
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
34
Table 16. XTS 2500 / XTS 2250 Model 1.5 Exploded View Parts List
Item
Number
Motorola Part
Number
Description
Item
Number
Motorola Part
Number
Description
1 1578458A02 Cover, Assy, Front Model 1.5 28 7585737D01 Pad Shock
2 7515058H01 Spcr, SQ61.7MML, 8MMThk 29 4385717D01 Spacer, Plastic
3 0104021J66 Assembly PWA, Keypad 30 4285446D01 Retainer Speaker
4 4216345H01 Retainer 31 7516153H01 Pad, Speaker Retainer
5 2671104L01 Gasket, EMI/FRI, Plas-Polyu 32 8416579H01 Board, Circuit, Flex Speaker Mic
6 2616342H02 EMI Shield, Elec Cond. Gasket 33 1485218D01 Boot, Mic
7 8416620H01 Board Flex Jumper 34 3585339D01 Speaker Mesh
8 7285726C04 Disp, Flat Panel, LCD MDL 35 3216389H01 Membrane, Microphone
9 7585011E01 Pad, LCD IC 36 3516396H01 Mesh Microphone, Front
10 0385563D01 Screw 37 3316396H01 Nameplate, Front
11 2616192H02 Shield Main 38 3216348H01 Sel, Top Control
12 Typical Main Board 39 6116359H01 Light Pipe
13 3216366H01 Seal, Main 40 1116352H01 Adhesive, Top Control
14 PMLN5005_ Chassis Assembly (Immersible) 41 1385783C01 Escutcheon, Top
PMLN5006_ Chassis (Standard) 42 1385855C01 Label, ABC
15 3216463H01 Seal Base Plate 43 0485667D01 Washer Teflon
16 0286165A03 Nut, Spanner 44 3680529Z01 Knob, Volume
0216965H01 Nut, Spanner (Non-Submersible) 45 4585782C01 Lever Secure
17 3216155H02 Seal, Port 46 3685779C01 Knob Frequency (w / d-clip)
18 3316152H01 Label, Seal 47 Typical Antenna
19 Typical Battery 48 1505579Z01 Cover, Dust, Universal Connector
NNT6263_ NiMH ultra-high-capacity, Factory
Mutual Intrinsically Safe,
Immersible
20 Typical Belt Clip
21 4385665D01 Adaptor, Remote Speaker Mic
22 3280534Z03 Seal, Cust, Slcn Rub
23 3285027E01 O-Ring Freq Switch
24 6003710K08 Battery, Backup
25 4285633D01 Retaining Clip
26 7516825H01 Shield, Poron
27 7585915C01 Pad Shock LCD
