Disassembly/Assembly
47
Front Cover from
Chassis
Disassembly
For this section, please refer to the Model III exploded view and parts list on page
39 for part numbers and more information on the location of parts in the radio.
1. Turn off the radio.
2. Remove the battery completely from the radio (see Figure 19 and Figure 20
on page 43).
3. Remove the antenna (see Figure 16 on page 42).
4. Pull the 16-Position Select and the On/Off/Volume Control knobs off their
shafts using the Chassis Opener tool.
5. After you remove the On/Off/Volume Control knob, remove the Teflon
®
washer and set it aside.
6. Separate the chassis from the front cover by inserting the chassis opener
between the thin, plastic retaining wall and the metal chassis at the bottom of
the radio.
Table 17. Front Cover from Chassis Disassembly
Exploded
View
Item
Number
Motorola Part Number Description
2 7516330H01 Keypad, Full
3 0104021J68 Assembly Board Model III Full Keypad
4 4216345H01 Retainer
8 7285726C04 Display, Flat Panel, LCD MDL
13 3216366H01 Seal, Main
32 8416579H01 Board Circuit Flex Speaker Mic

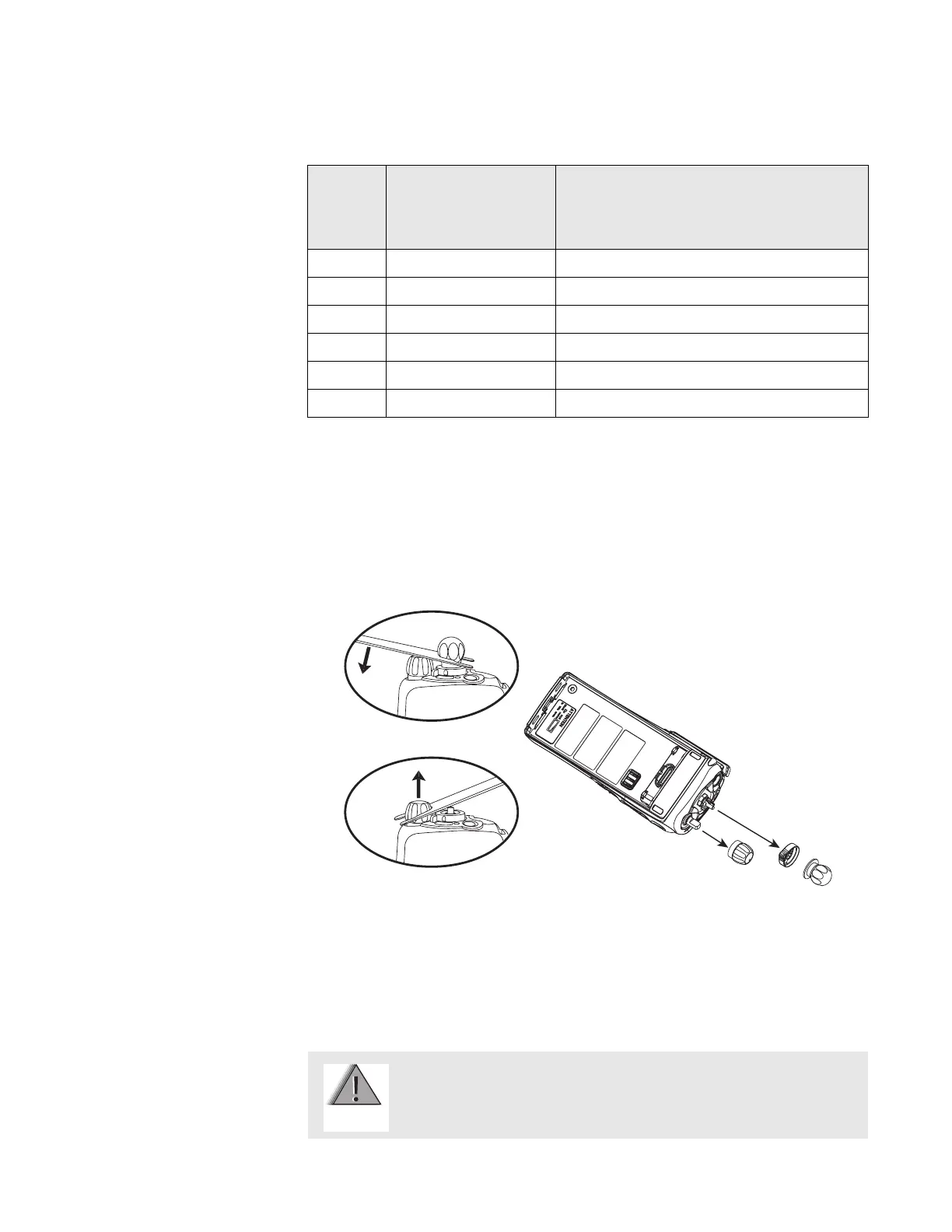

Figure 28. Knob Removal
Be careful not to mar the O-ring sealing area on the housing.
Marring the front cover O-ring sealing areas will prevent the
radio from sealing properly.
W A R N I N G
