XTS 2500/XTS 2250/XTS 1500/
MT 1500/PR 1500 Exploded Views
and Parts Lists 7

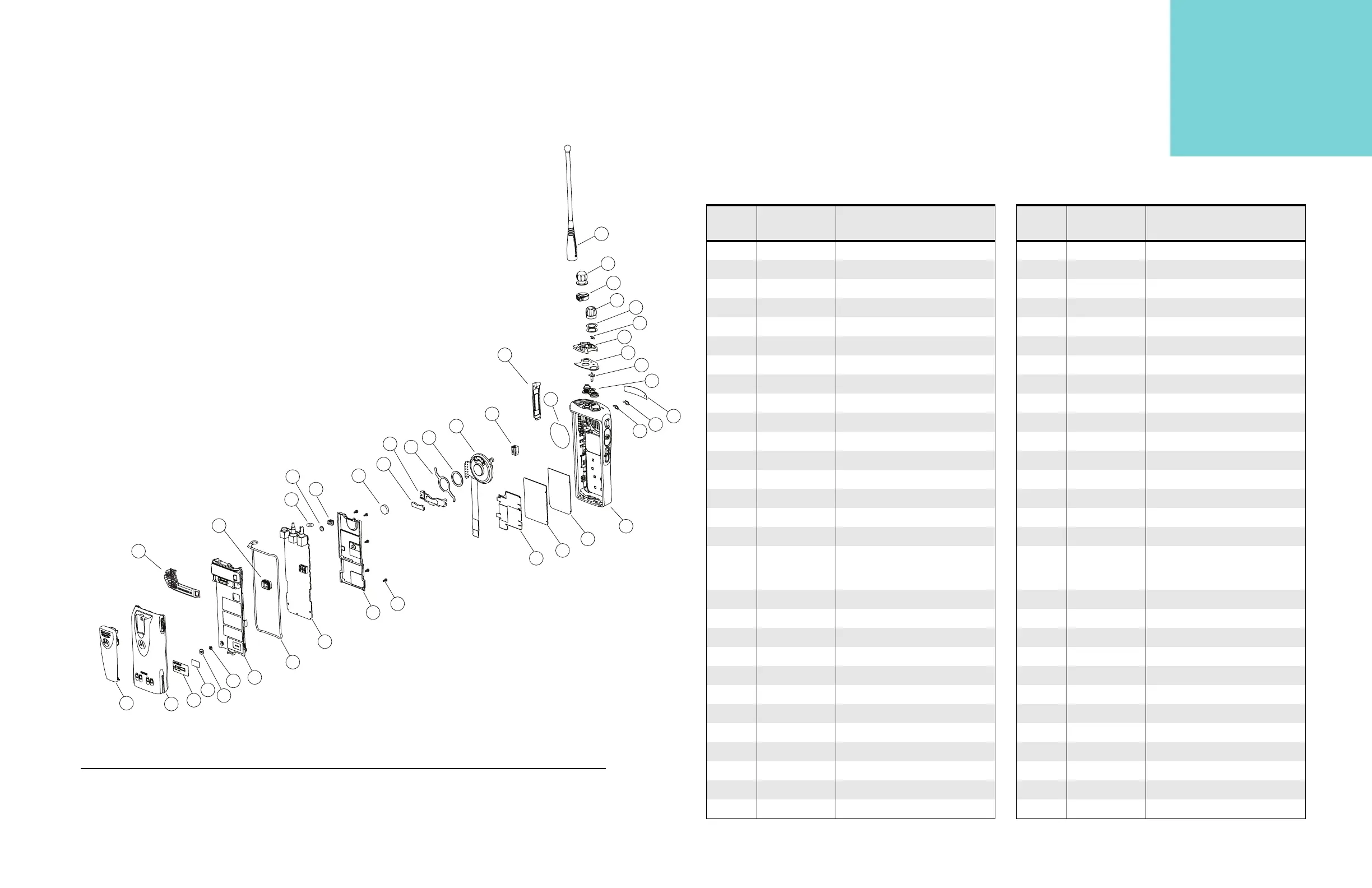

XTS 2500/XTS 2250/XTS 1500/MT 1500/PR 1500 Model I Exploded View
16
17
18
20
21
22
23
24
25
26
27
42
28
41
40
39
38
36
35
34
33
32
31
30
29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
37
19
Table 13. XTS 2500 Model I / XTS 2250 Basic Model / XTS 1500 / MT 1500 / PR1500 Exploded View Parts List
Item
Number
Motorola Part
Number
Description
Item
Number
Motorola Part
Number
Description
1 1578458A01 Cover, Assy, Front Model 1 27 1485218D01 Boot, Mic
2 7515058H01 Spcr, SQ61.7MML, 8MMThk 28 3585339D01 Speaker Mesh
3 8416317H01 PCB, Dummy Keypad 29 3216389H01 Membrane, Microphone
4 4216345H01 Retainer 30 3516396H01 Mesh Microphone, Front
5 0385563D01 Screw 31 3316396H01 Nameplate, Front
6 2616192H02 Shield, Main 32 3216348H01 Sel, Top Control
7 Typical Main Board 33 6116359H01 Light Pipe
8 3216366H01 Seal, Main 34 1116352H01 Adhesive, Top Control
9 PMLN5005_ Chassis Assembly (Immersible) 35 1385783C01 Escutcheon, Top
PMLN5006_ Chassis (Standard) 36 1385855C01 Label, ABC
10 3216463H01 Seal Base Plate 37 0485667D01 Washer Teflon
11 0286165A03 Nut, Spanner 38 3680529Z01 Knob, Volume
0216965H01 Nut, Spanner (Non-Submersible) 39 4585782C01 Lever Secure
12 3216155H02 Seal, Port 40 3685779C01 Knob Frequency (w / d-clip)
13 3316152H01 Label, Seal 41 Typical Antenna
14 Typical Battery 42 1505579Z01 Cover, Dust, Universal Connector
NNT6263_ NiMH ultra-high-capacity, Factory
Mutual Intrinsically Safe,
Immersible
15 Typical Belt Clip
16 4385665D01 Adaptor, Remote Speaker Mic
17 3280534Z03 Seal, Cust, Slcn Rub
18 3285027E01 O-Ring Freq Switch
19 6003710K08 Battery, Backup
20 4285633D01 Retaining Clip
21 7516825H01 Shield, Poron
22 7585737D01 Pad Shock
23 4385717D01 Spacer Plastic
24 4285446D01 Retainer Speaker
25 7516153H01 Pad, Speaker Retainer
26 8416579H01 Board, Circuit, Flex Speaker Mic
To Next Page
