9.5-36 900MHz Schematics, Board Overlays, and Parts Lists
February 14, 2012 6816985H01-F
Notes:
1. For optimum performance, order replacement diodes, transistors, and circuit
modules by Motorola part number only.
2. When ordering crystals, specify carrier frequency, crystal frequency, crystal type number, and
Motorola part number.
3. Part value notations:
p=10
-12
n=10
-9
µ=10
-6
m=10
-3
k=10
3
M=10
6

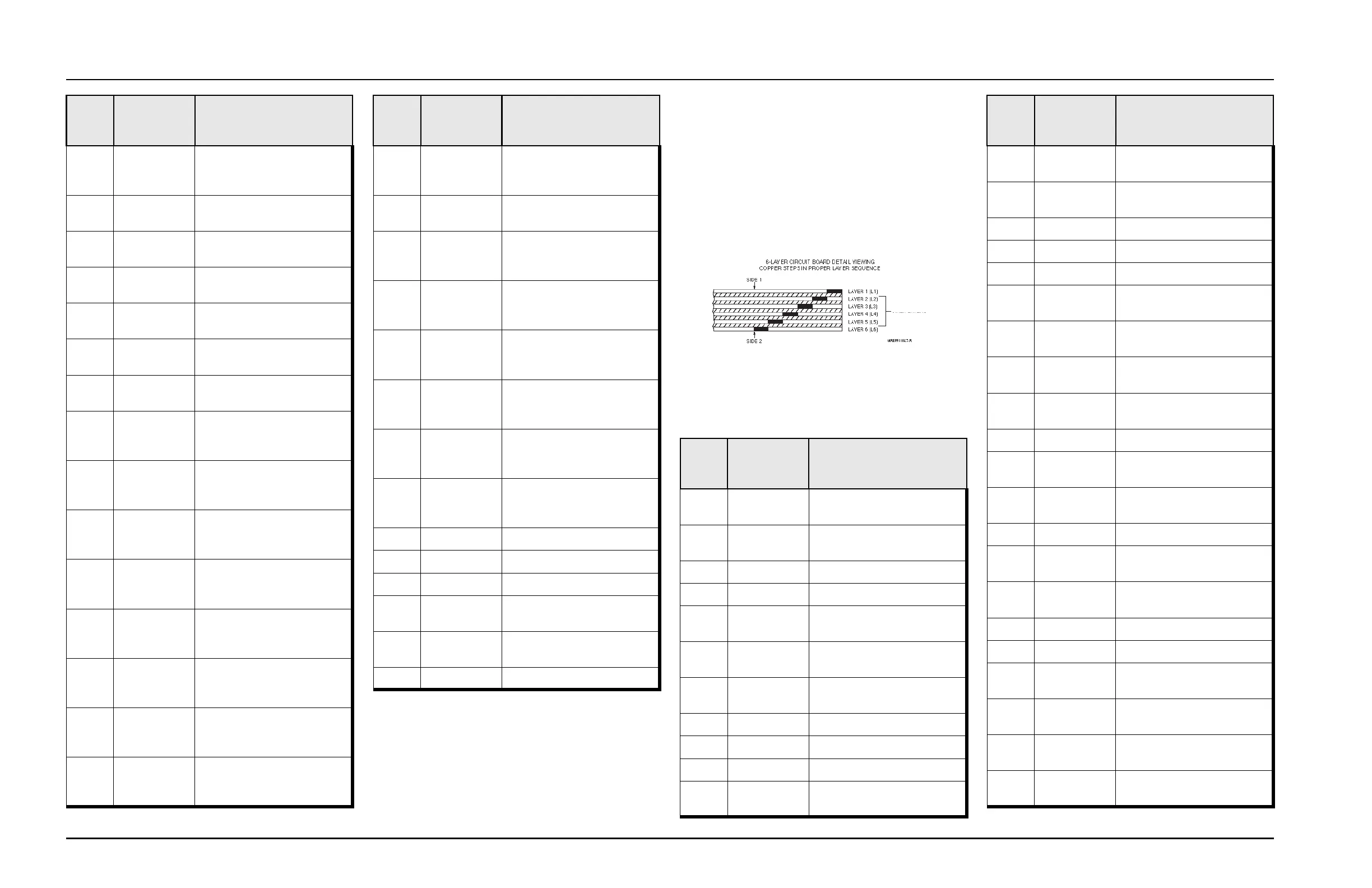

4. ITEM refers to the component reference designator. SIDE refers to the
location of the component on the board; S1=Side 1, S2=Side 2.
5. The PMLD4303A RF Board uses a 6-layer printed circuit board.
PMLF4036B Main Circuit Board
Electrical Parts List
VR501 4813977M19
DIODE,ZEN,MBZ5240,SM,
SOT-23,10V,10MA, .225W,
ZEN,PB-FREE
VR502 4809788E21
DIODE, ZENER, SOD-323,
SMD, W18 COMPLIANT
VR503 4809788E21
DIODE, ZENER, SOD-323,
SMD, W18 COMPLIANT
VR504 4809788E21
DIODE, ZENER, SOD-323,
SMD, W18 COMPLIANT
VR505 4809788E21
DIODE, ZENER, SOD-323,
SMD, W18 COMPLIANT
VR506 4809788E21
DIODE, ZENER, SOD-323,
SMD, W18 COMPLIANT
VR507 4809788E21
DIODE, ZENER, SOD-323,
SMD, W18 COMPLIANT
VR591 4813977A43
PB-FREE, ZENER, SM, DUAL
5.6V COM ANODE, SOT23
T&R
VR592 4813977A43
PB-FREE, ZENER, SM, DUAL
5.6V COM ANODE, SOT23
T&R
VR593 4813977A43
PB-FREE, ZENER, SM, DUAL
5.6V COM ANODE, SOT23
T&R
VR594 4813977A43
PB-FREE, ZENER, SM, DUAL
5.6V COM ANODE, SOT23
T&R
VR595 4813977A43
PB-FREE, ZENER, SM, DUAL
5.6V COM ANODE, SOT23
T&R
VR596 4813977A43
PB-FREE, ZENER, SM, DUAL
5.6V COM ANODE, SOT23
T&R
VR650 4813979P12
DIODE ARRAY,TRANSIENT
PROTECTION,SM, SOT-457,
12V,.225W, ZEN, 4,PB
VR651 4813977A43
PB-FREE, ZENER, SM, DUAL
5.6V COM ANODE, SOT23
T&R
ITEM
MOTOROLA
PART
NUMBER
DESCRIPTION
VR652 4813977A43
PB-FREE, ZENER, SM, DUAL
5.6V COM ANODE, SOT23
T&R
VR657 4809788E21
DIODE, ZENER, SOD-323,
SMD, W18 COMPLIANT
VR658 4813977C23
DIODE,ZEN,MMSZ5243,SM,
SOD-123,13V,10MA,.5W, ZEN,
PB-FREE
VR659 4813979P10
DIODE ARRAY,TRANSIENT
PROTECTION,SM, SOT-457,
5.6V,.225W,ZEN, 4,P
VR662 4813979P10
DIODE ARRAY,TRANSIENT
PROTECTION,SM,S OT-457,
5.6V,.225W,ZEN, 4,P
VR663 4813977M18
DIODE,ZEN,MBZ5239,SM,
SOT-23,9.1V,10MA,.225W,
ZEN,PB-FREE
VR678 4866544A01
DIODE ARRAY,ZEN,
SR05.TCT,SM,5V,5,LOW
CAPACITANCE TVS DIO
VR701 4813977M11
DIODE,ZEN,MBZ5232,SM,
SOT-23,5.6V,10MA,.225W,
ZEN,PB-FREE
Y200 4802245J68
OSC, REF 16.8 MHZ 1.5 PPM
Y202 4805911Z02
RESONATOR CERAMIC
Y203 4885426C16
CER RESONATOR 1025 MHZ
Y701 4809995L05
XTAL QUARTZ 32.768KHZ
CC4V-T1
Y702 4864005H01
RESONATOR, CRYSTAL
24.576 MHZ
PCB 8416005H01
PC BOARD, MAIN 900MHZ
ITEM
MOTOROLA
PART
NUMBER
DESCRIPTION
ITEM
MOTOROLA
PART
NUMBER
DESCRIPTION
B500 0986237A02
CONNECTOR (CONTACT
BATTERY)
C1 2113945Y02
CAP,FXD,.1UF,+10%,-10%,
16V-DC,0402
C2 2113944A32
CAP CER CHP 39.0PF 50V 5%
C3 2113946F03
CAP CER CHP 4.7UF 6.3V 10%
C4 2113944A42
CAP CER CHP 150.0PF 50V
5%
C5 2113944A14
CAPACITOR,CHIP,3.6PF,
.25PF+/-
C6 2113944A19
CAP CER CHP 5.6PF 50V
+/- 0.5PF
C7 2113944A32
CAP CER CHP 39.0PF 50V 5%
C8 2113944A32
CAP CER CHP 39.0PF 50V 5%
C9 2113944A32
CAP CER CHP 39.0PF 50V 5%
C10 0613952R66
CER CHIP RES 0.0
+/-0.050 OHM
INNER LAYERS
C11 2113945B04
CAP,FXD,.022UF,+10%, -10%,
25V-DC,0402
C12 2113944A85
CAP,FXD,51PF,+5%, -5%,5
0V-DC
C13 NOT PLACED
–
C14 NOT PLACED
–
C16 2113944A33
CAP CER CHP 47.0PF 50V 5%
C17 2113944A08
CAP CER CHP 2.0PF 50V
+/- 0.25PF
C18 2113944A01
CAP CER CHP 1.1PF 50V
+/- 0.25PF
C19 2113944C67
CAP,FXD,1.5PF,.1PF+/-,
50V-DC ,0603
C20 2113944A09
CAP CER CHP 2.2PF 50V
+/- 0.25PF
C22 2113944A32
CAP CER CHP 39.0PF 50V 5%
C23 2113945B04
CAP,FXD,.022UF,+10%, -10%,
25V-DC,0403
C25 2113945B04
CAP,FXD,.022UF,+10%, -10%,
25V-DC,0404
C26 2113944A32
CAP CER CHP 39.0PF 50V 5%
C27 2113945B04
CAP,FXD,.022UF,+10%,-10%,
25V-DC,0405
C28 2313960M51
CAP,FXD,10UF,+10%, -10%,
6.3V-DC
C29 2113944A36
CAP CER CHP 68.0PF 50V 5%
C100 2113944C37
CAP CER CHP 39.0PF 50V 5%
C101 2113944A40
CAP CER CHP 100.0PF 50V
5%
C102 2113944A21
CAP CER CHP 6.8PF 50V
+/- 0.5PF
C103 2113945Y02
CAP,FXD,.1UF,+10%, -10%,
16V-DC,0402
C104 2113945B02
CAP CER CHP 10,000PF 25V
10%
ITEM
MOTOROLA
PART
NUMBER
DESCRIPTION
