1-3
N
N
o
o
t
t
e
e
:
:
The NEMA4 housing option is for Portable Radios ONLY. For the
NEMA4 housing specification refer to the Installation section.
Backup
Battery
Portable
Radio
NEMA4
Plastic
Housing
I/O
Modules
CPU
Module
Grounding
Strip
Power
Supply
Module
(More)
Main
Power
Transformer
45 VA
Main
Power
Fuse

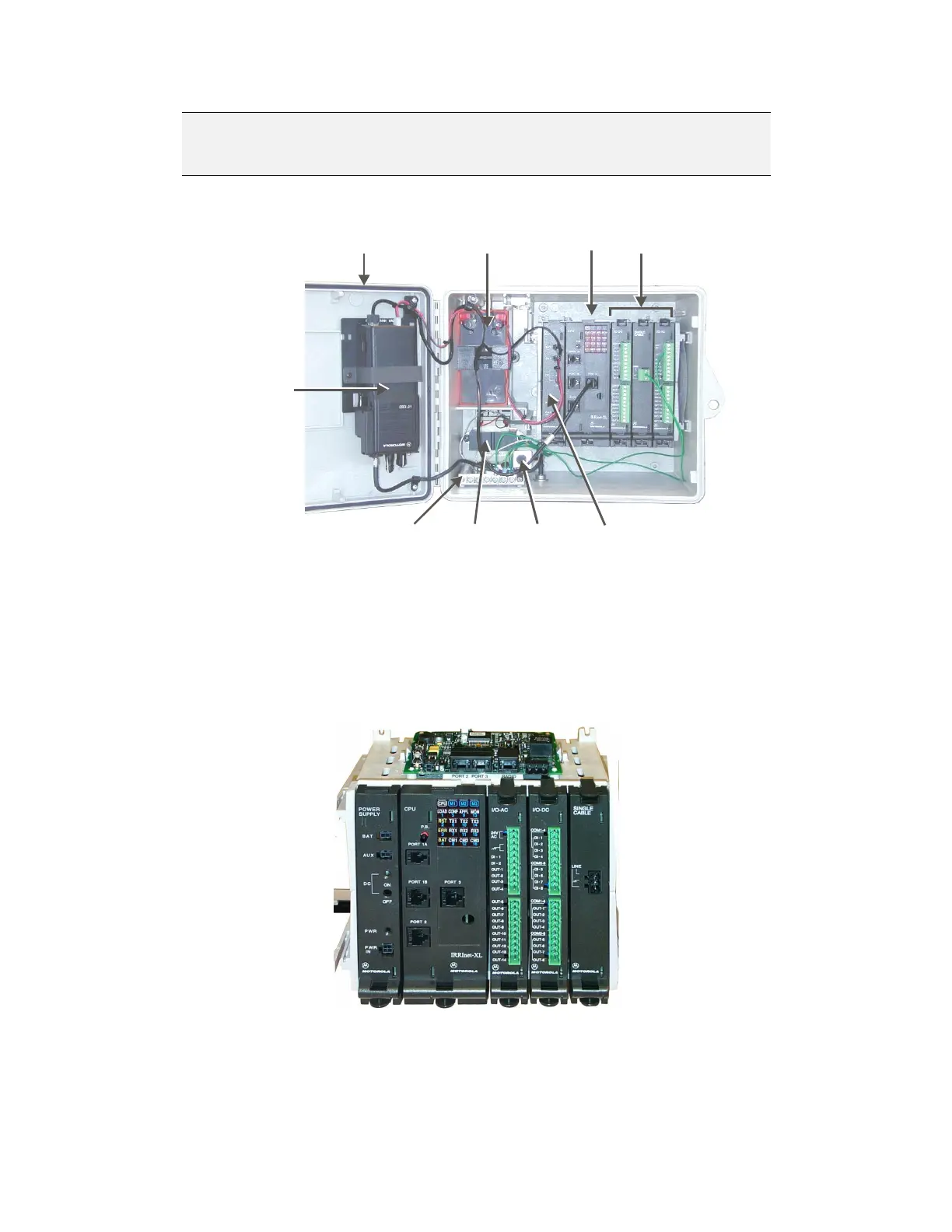

Figure 1-4 NEMA4 Housing Style – Portable
Figure 1-5 shows the External Radio Ready setup. This includes a multi-slot I/O card
cage with 3 I/O plug-in modules, CPU Module, Power Supply Module, and the CMU
Module (Mounted on the top of the I/O card-cage).
Figure 1-5 External Radio Ready Setup
