Motorola IRRInet-XL - 5 AH Backup Battery Field Replaceable Parts; Figure 2-14 5 AH Backup Battery Connection; Table 2-4 5 AH Backup Battery Field Replaceable Parts

2-15
Assembly Instructions:
1. Connect the loose end of the battery cable to the “BATT – J1” connector on
the 8 Ampere Power Supply as shown in the Figure 2-14.

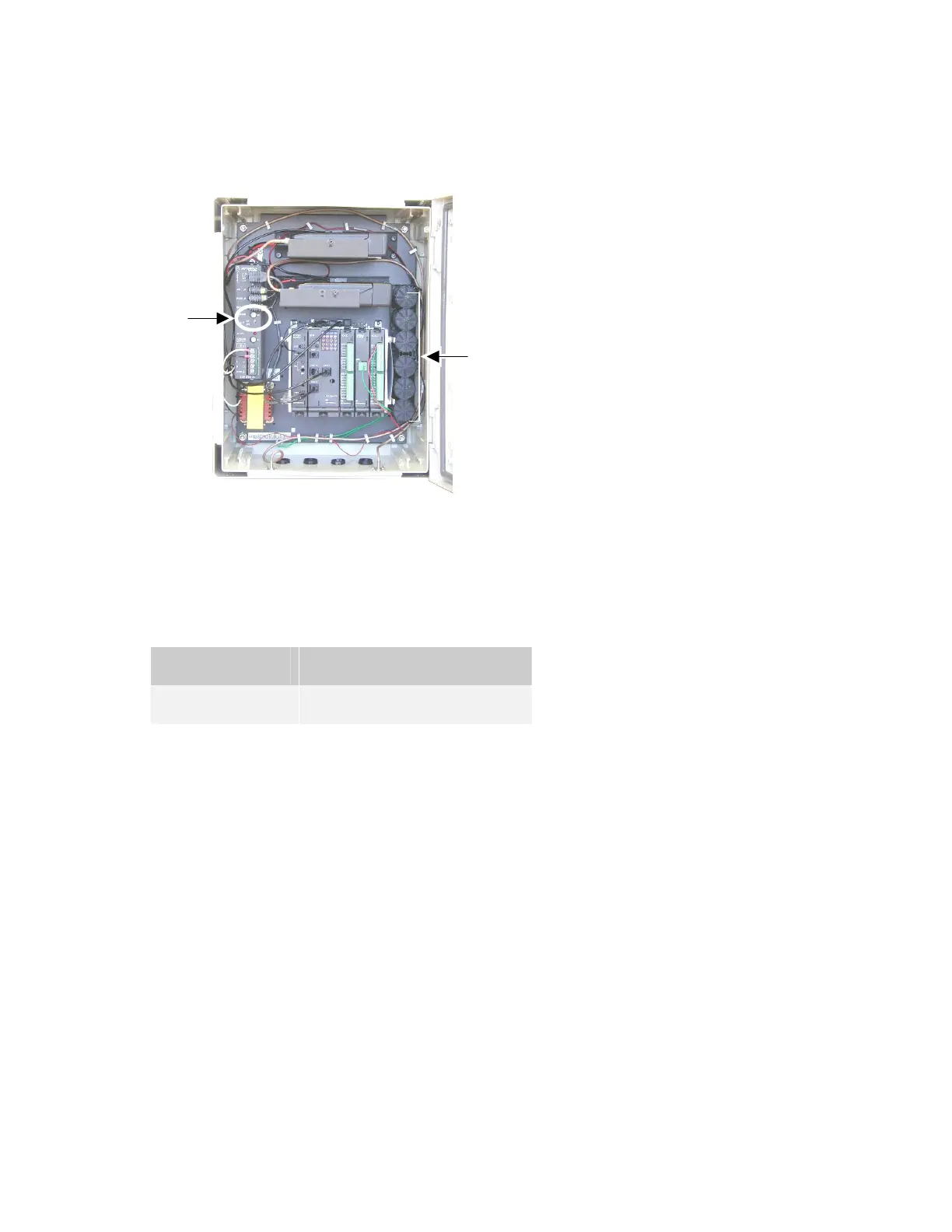

Figure 2-14 5AH Backup Battery Connection
2.6.2 5AH Backup Battery Field Replaceable Parts
Table 2-4 5AH Backup Battery Field Replaceable Parts
Part No. Description
6580283E05 10 Amp Fuse Blade
Backup Battery
Backup
Battery User
Connector
