2-2
2.2 Wall Mounting of RTU Without Housing Enclosure
Convenient installation of the IRRInet-XL RTU without a housing enclosure requires the
following available space:
• Width 36.50 cm (14.37 inch)
• Height 46.75 cm (18.41 inch)
• Depth 25.00 cm (10.00 inch)
Four holes are provided, one in each corner of the RTU, for wall mounting of the RTU.

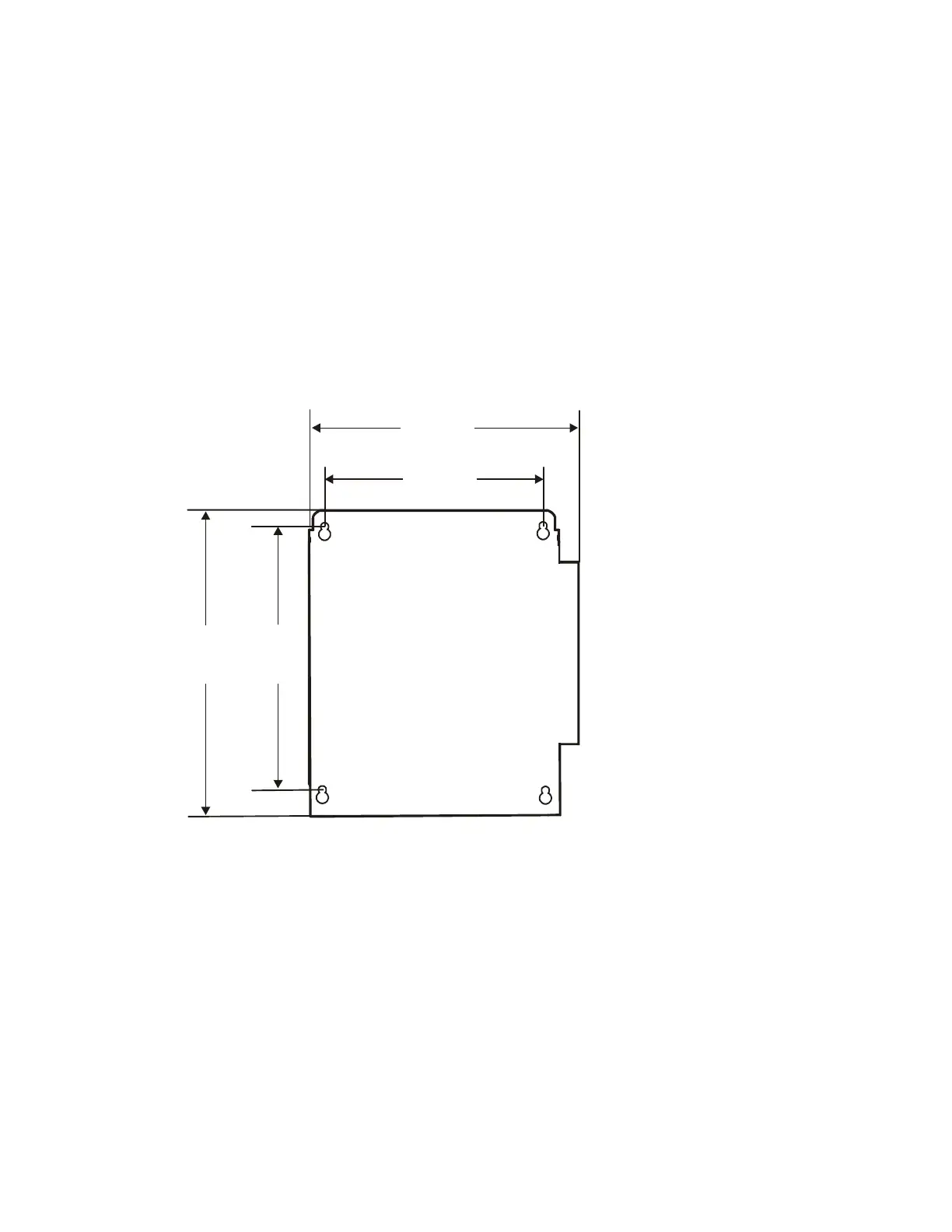

Figure 2-2 shows the distances between the holes.
Choose the mounting means (screws, etc.) appropriate for mounting the RTU on the
wall.
32.50cm
(12.79”)
36.50cm
(14.37”)
(18.41”)
46.75cm
(16.73”)
42.50cm
Figure 2-2 RTU 3-slot Chassis Installation Dimensions
