Motorola IRRInet-XL - 2.6 Backup Battery Connections; 2.6.1 5 AH Backup Battery

2-14
AC Input
To
Grounding
Stri p
Fuse
Black (115 V AC)
Brown (230 V AC)
White (115 V AC)
Blue (230 V AC)
To Power Supply Module
PWR Connector
Cable FKN4463
0

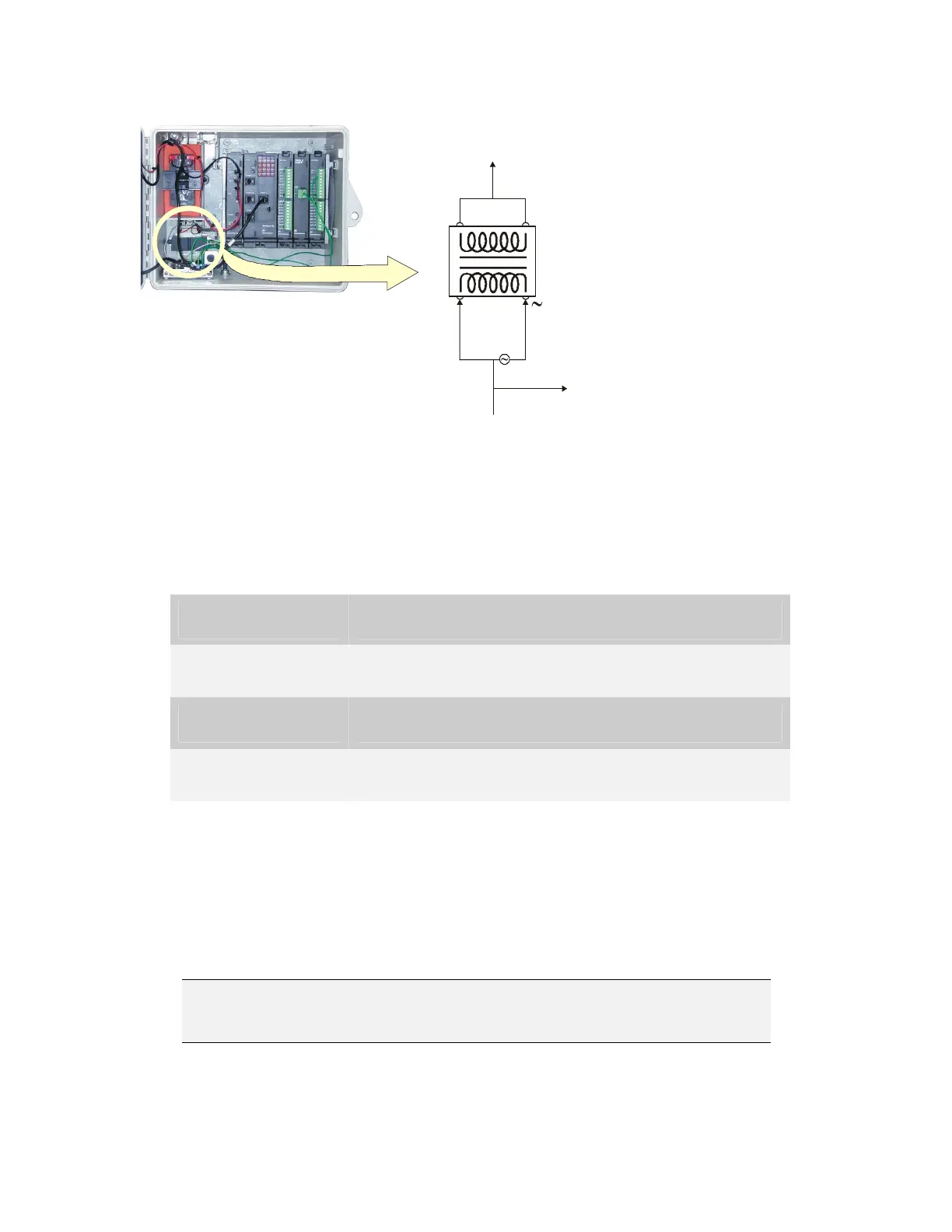

Figure 2-13 Connecting the 45 VA Transformer in NEMA4 Housing Enclosure
2.5.6 45 VA Transformer Field Replaceable Parts
Table 2-3 45 VA Transformer Field Replaceable Parts
Part No. Description
FPN5554 45 VA Main Power Transformer (115 VAC)
FPN5598 45 VA Main Power Transformer (230 VAC)
6500052281 Fuse 1.0 Amp 250 V Fast Blow
2.6 Backup Battery Connections
2.6.1 5AH Backup Battery
The 5AH Backup Battery (p/n: FLN4666) is assembled ONLY on the chassis wall
mount or with the NEMA4X housing enclosure.
N
N
o
o
t
t
e
e
:
:
The IRRInet-XL RTU is supplied with the backup battery cable
disconnected in order to prevent battery leakage during shipping.
