2-3
2.3 Wall Mounting of RTU in NEMA4X Housing Enclosure
The size of the NEMA4X plastic housing is as follows:
• Width 41.0 cm (16.14 inch)
• Height 51.0 cm (20.08 inch)
• Depth 25.0 cm (10.0 inch)
The following available space is required to install the NEMA4 plastic housing:
• Width 47.0 cm (18.5 inch)
• Height 57.0 cm (22.5 inch)
• Depth 30.0 cm (11.8 inch)
When mounted on the wall, four mounting brackets that are provided support the RTU
box. Refer to Figure
2-3 and Figure 2-4.
To mount the RTU on the wall perform the following:
1. Choose the appropriate screws for mounting the RTU on the wall.
2. Fasten the mounting brackets on the back corners of the housing. Use the
brackets supplied in the plastic bag.
36.2 cm
(14.25")
56.2 cm
(22.12")
46.2 cm
(18.19")
46.2 cm
(18.18")
51.0 cm
(20.08”)
41.0 cm
(16.14")

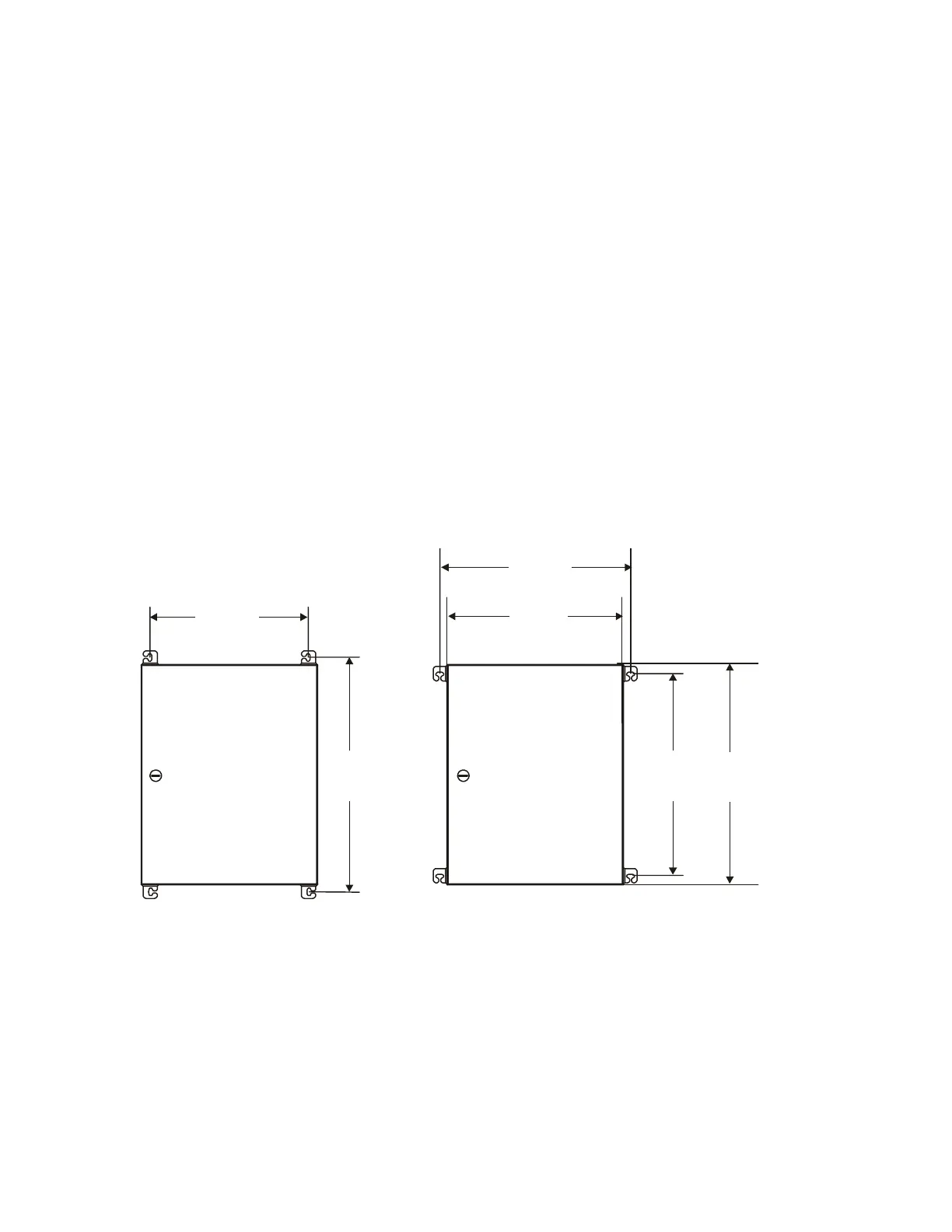

Figure 2-3 NEMA4X Plastic Housing - Installation Dimensions
To Next Page
