Motorola IRRInet-XL - 2.11 Radio Antenna Placement

2-28
N
N
o
o
t
t
e
e
:
:

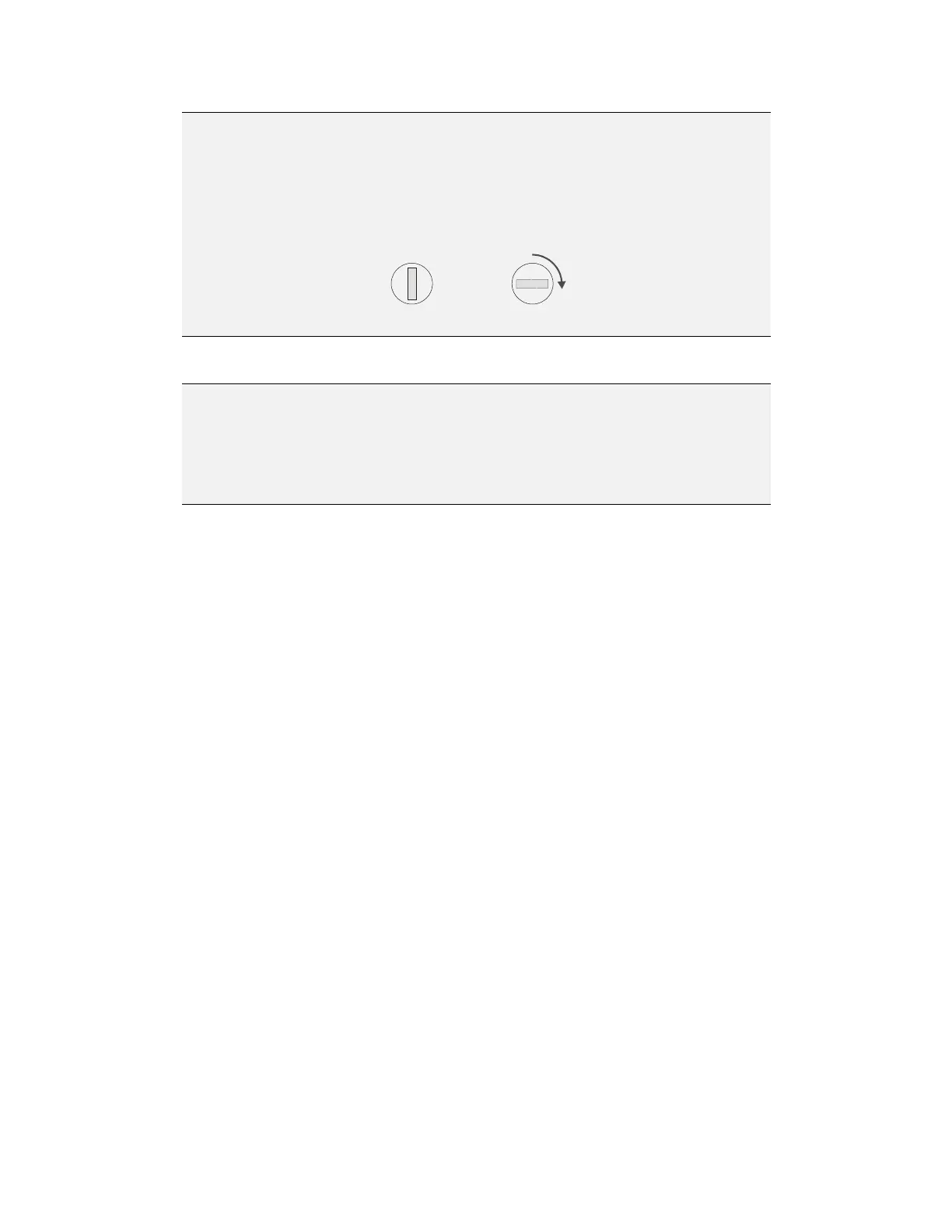

The door of the NEMA4 housing does not latch shut when the lock is
in a horizontal position. To close the housing properly use a coin or
screwdriver to turn the latch 90 degrees counter-clockwise to a
vertical position. In the vertical position the door latches shut when
swung closed. Once the door is latched, verify that the lock is
vertically positioned, as shown below.
Open
Close
2.11 Radio Antenna Placement
W
W
a
a
r
r
n
n
i
i
n
n
g
g
!
!
The radio antenna should not be placed on top of the plastic
housing. An antenna placed on top of the plastic housing
produces strong electromagnetic fields that may be harmful to
the people in the vicinity and to the electronics of the IRRInet-
XL.
