5 - 8 MC70 User Guide
•
provides a serial port for data communication between an EDA and an external device (e.g., a printer)
•
re-charges the battery in the EDA
•
re-charges a standard capacity or extended capacity spare battery.
Charging the EDA Battery
Insert the EDA into the vehicle cradle to begin charging. A click indicates that the EDA button release locking
mechanism is enabled and the EDA is locked in place.

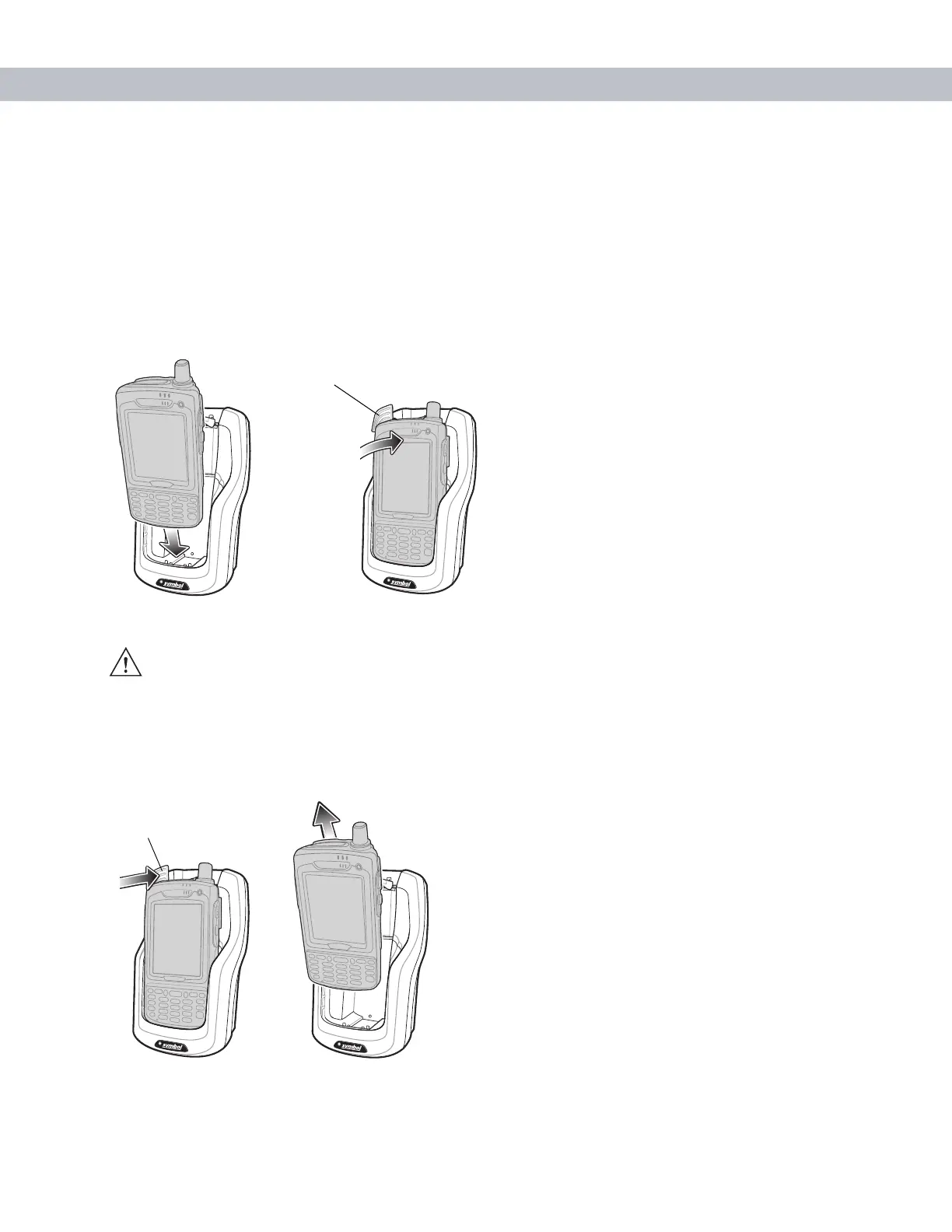

Figure 5-7
EDA Battery Charging
Removing the EDA
To remove the EDA, hold back the release lever on the cradle and pull the EDA up and out of the cradle.
Figure 5-8
Removing the EDA
CAUTION Ensure the EDA is fully inserted in the cradle. Lack of proper insertion may result in property damage or
personal injury. Symbol Technologies, Inc. is not responsible for any loss resulting from the use of the
products while driving.
Release Lever
Release Lever
