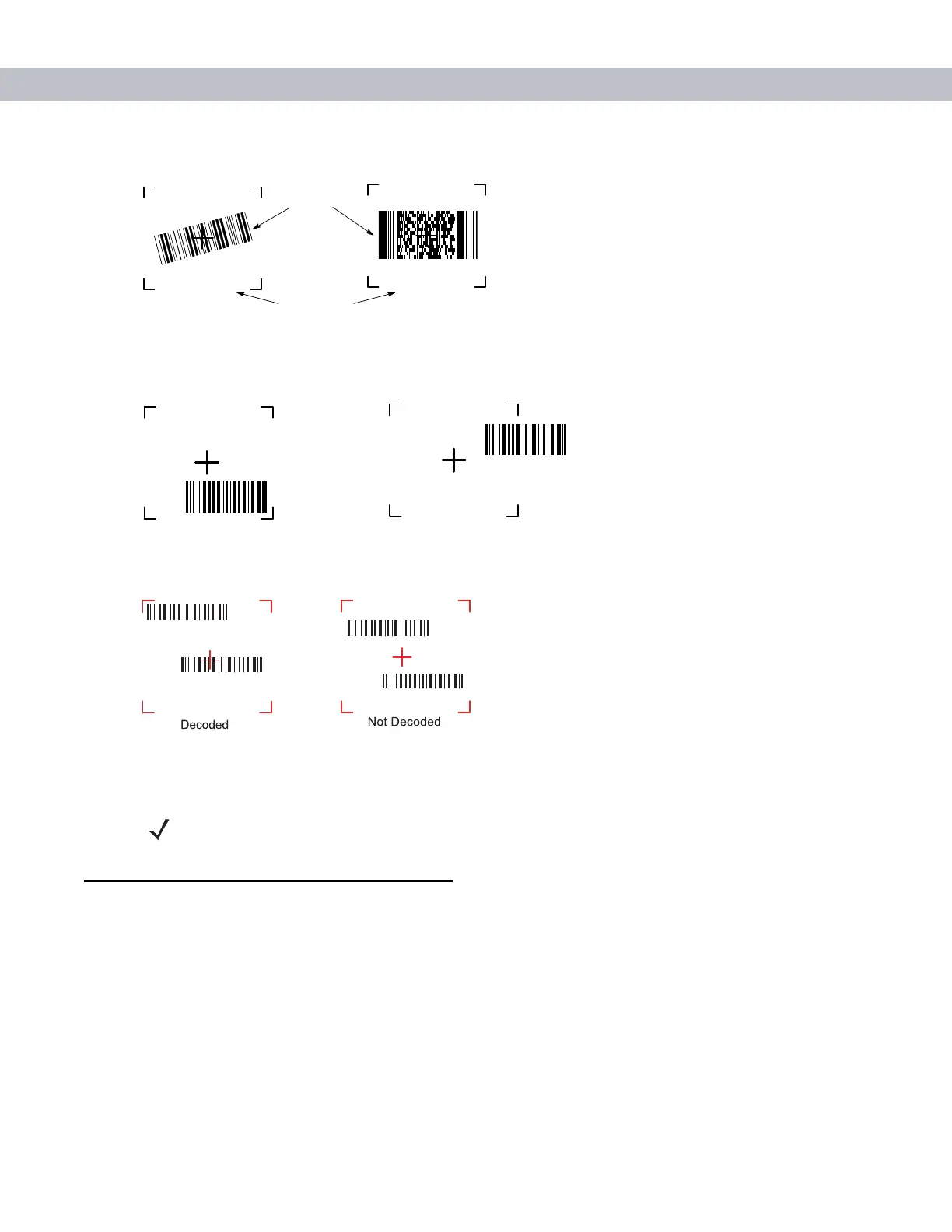

Figure 2-20

Imager Aiming Pattern: Bar Code Centered

Figure 2-21

Imager Aiming Pattern: Bar Code Not Centered

Figure 2-22

Pick List Mode with Multiple Bar Codes in Aiming Pattern

4. Release the scan button.

Resetting the EDA

There are two reset functions, warm boot and cold boot. A warm boot restarts the EDA by closing all running

programs. A cold boot also restarts the EDA, and also resets the clock. Data saved in flash memory or a

memory card is not lost.

Perform a warm boot first. If the EDA still does not respond, perform a cold boot.

Performing a Warm Boot

Hold down the Power button for approximately five seconds. As soon as the EDA starts to boot release the

Power button.

Linear bar code

PDF417 symbol

Symbol

View Finder

(Aiming Pattern)

Correct

Incorrect

NOTE Imager decoding usually occurs instantaneously. The EDA repeats the steps required to take a digital

picture (image) of a poor or difficult bar code as long as the scan button remains pressed.
