2 - 8 MC70 User Guide
LED Indicators
The MC70 has three LED indicators. The Scan/Decode LED indicates status for scanning. The Charge Status
LED indicates status for main battery charging. The Radio Power Status LED indicates radio status. Table 2-3
describes the LED indications.

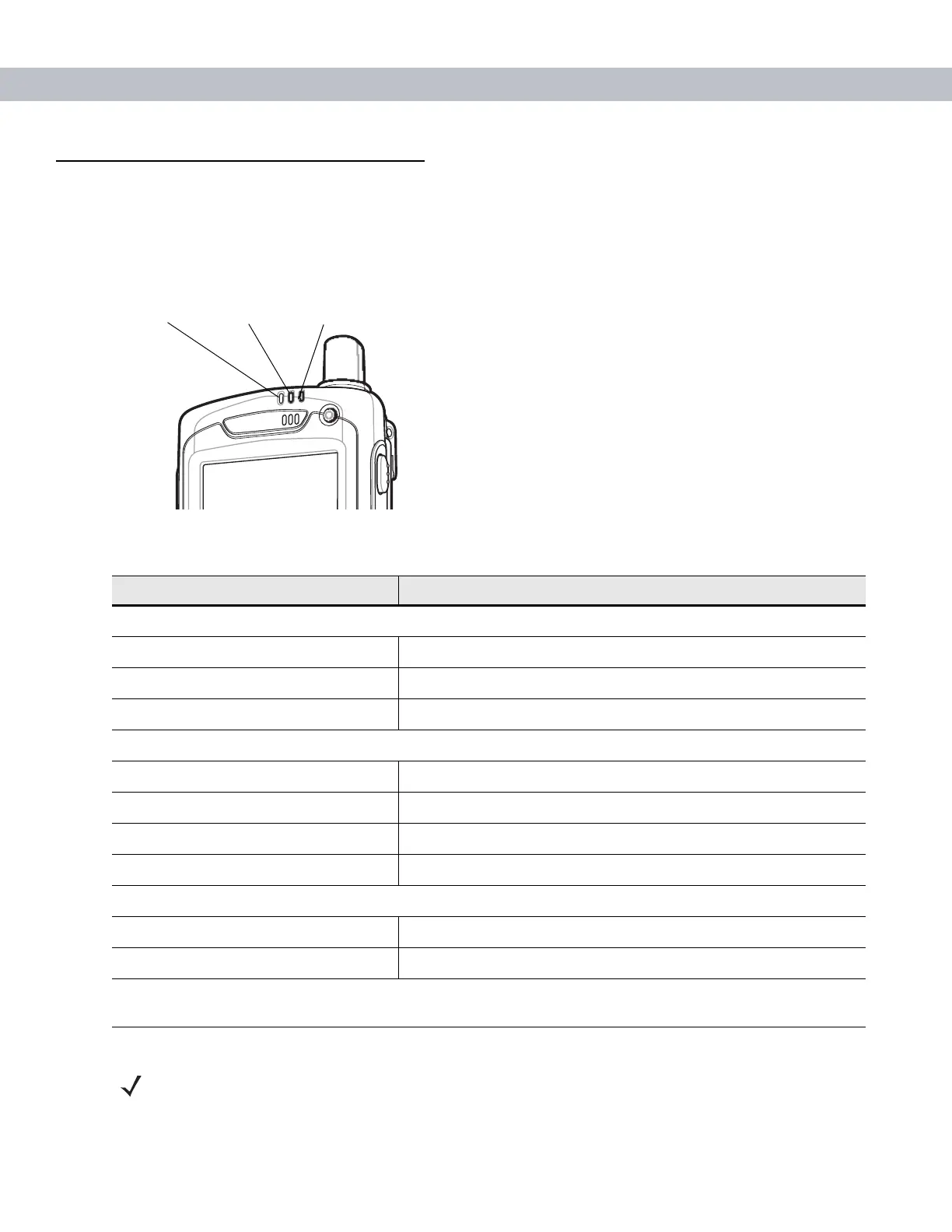

Figure 2-11
LED Indicators
Table 2-3
LED Indications
LED State Indication
Scan/Decode LED
Solid Green Successful decode/capture.
Solid Red Laser enabled, scanning/imaging in process.
Off Not enabled.
Charge Status LED
Slow Blinking Amber Main battery in EDA is charging.
Solid Amber Main battery in EDA is fully charged.
Fast Blinking Amber Charging error.
Off Not charging.
Radio Power Status LED*
Slow Blinking Green Any one of the radios is on.
Off No radio is on.
*The Radio Power Status LED is disabled by default. A registry setting change is required to make this LED
functional. Refer to the MC70 Integrator Guide.
Radio Power
Status LED
Scan/Decode
LED
Charge
Status LED
NOTE For information about scanning/decoding, see Data Capture on page 2-20. For information about radio
status and settings, see Chapter 3, Using Bluetooth, Chapter 4, Using the MC7004/94/95 Phone, or refer
to the MC70 Integrator Guide.
