Motorola MTH800 User Manual

MTH800
Quick Reference Guide
Turning the MTH800 On/Off
To power the MTH800 on/off, press and
hold .
Using the MTH800 Menu System
• To enter the menu, press .
• To scroll through the menu, press /
.
• To select a menu item, press Select
soft key or .
• To return to previous level, press
Back or .
• To exit the menu items, press .
Selecting Trunked/Direct Mode
Operation
• Your terminal may be configured with
a One-touch button to switch between
TMO/DMO. Contact your Service
Provider for more information.
• From the Home display press Optns,
select Trunked Mode/Direct Mode.
Making a TMO Group Call
From the Home display navigate to the
desired group. Press Select soft key (if
configured). Press and hold PTT. Wait
for the talk permit tone (if configured)
and talk. Release PTT to listen.
Making a DMO Group Call
Enter DMO. Navigate to the desired
group. Press Select soft key (if
configured). Press and hold PTT. Wait
for the talk permit tone (if configured)
and talk. Release PTT to listen.
Making a TMO Emergency Group
Call
Enter TMO. Press and hold the
Emergency button. Emergency alarm is
sent automatically. Press and hold PTT.
Wait for the talk permit tone (if
configured) and talk. Release PTT to
listen. If using “Hot Mic” feature, wait for
the Emgncy Mic On message to
appear on the display and talk without
pressing PTT.
To exit Emergency Mode, press and
hold Exit soft key.
Making a DMO Emergency Group
Call
Enter DMO. Press and hold the
Emergency button. Press and hold
PTT. Wait for the talk permit tone (if
configured) and talk. Release PTT to
listen. To exit Emergency Mode press
and hold Exit soft key.
Making a TMO Half-duplex Private
Call
From the Home display dial a number.
Press CType to select the call type.
Press and release PTT. Ringing
sounds. Called party answers. Wait for
the called party to finish speaking.
Press and hold PTT. Wait for the talk
permit tone (if configured) and talk.
Release PTT to listen. Press to
terminate call.
Next

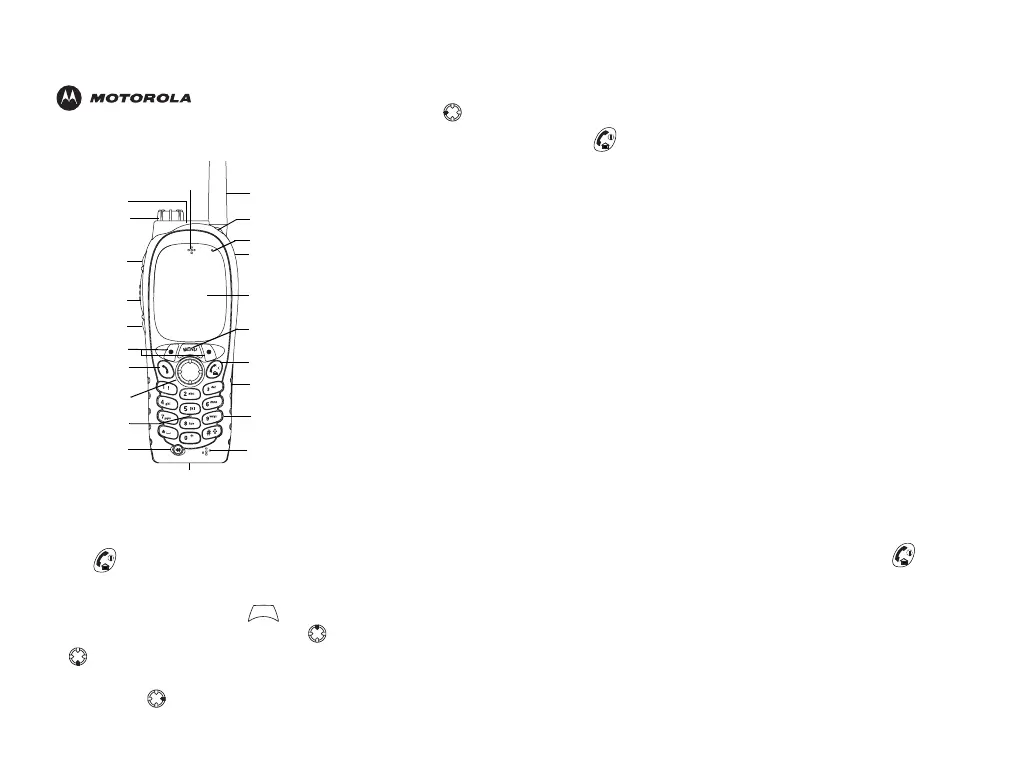

Antenna
LED
Top Microphone
External Antenna
Connector
(at the back)
Colour
Display
Menu key
On-Off/End/
Home Key
Audio Accessory
Connector
Alphanumeric
Keypad
Bottom
Microphone
Accessory Connector
(at the base)
Speaker Control
Key
Speaker
Four-Way
Navigation Key
Send Key
Soft Keys (2)
Programmable
Side Key
PTT Button
Programmable
Side Key
Rotary Knob
(on top)
Emergency Key
(on top)
Earpiece
M
E
N
U

Motorola MTH800 Specifications

General

Frequency Range	380-430 MHz
Operating Temperature	-30°C to +60°C
Ingress Protection	IP54
RF Power Output	1W
Battery Type	Li-Ion
Channels	1000
