Motorola MTH800 User Manual

9
Getting Started

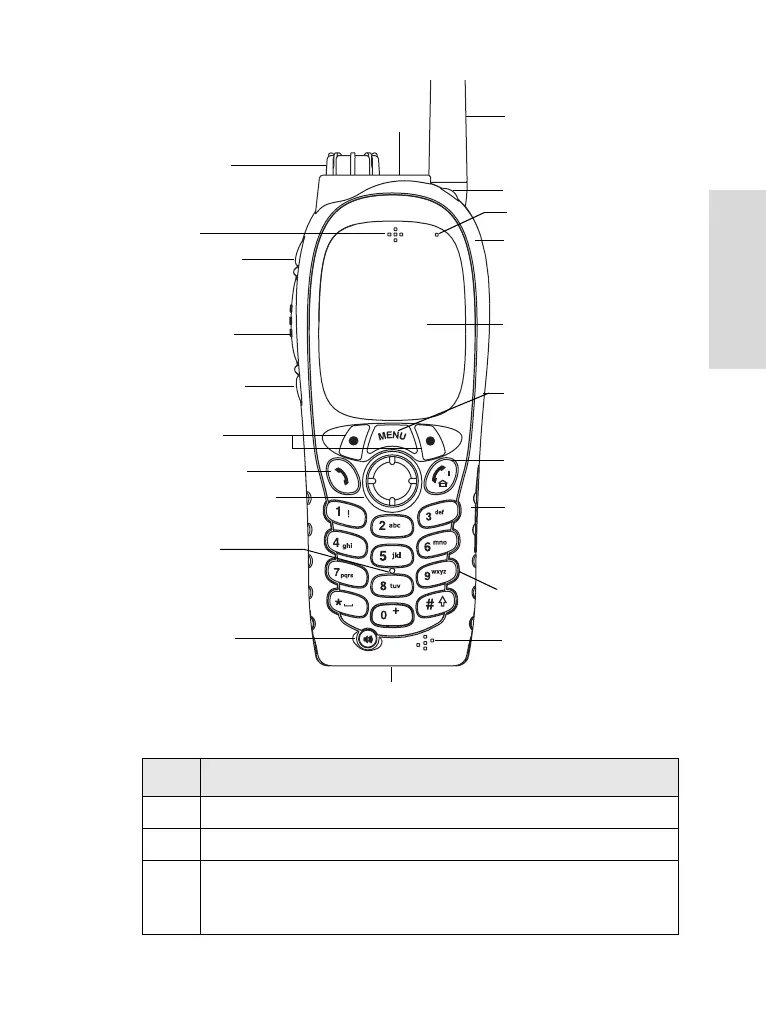

Controls and Indicators
Item Description
1 Antenna
2 LED (Indicator)
3 Top Microphone
Activated during half-duplex, high-audio calls such as
Group Calls.
Next
21. Emergency Key
(on top of the MTH800)
20. Rotary Knob
(on top of the MTH800)
19. Earpiece
18. PTT Button
(at the side of the MTH800)
17a. Programmable
Side Key
(at the side of the MTH800)
16.Soft Keys (2)
15. Send Key
14. Four-Way Navigation
Key
13. Speaker
(under keypad)
12. Speaker Control
Key
11. Accessory Connector
(at the base of the MTH800)
1. Antenna
2. LED
3. Top Microphone
4. External Antenna
Connector
(back of the MTH800)
5. Alphanumeric
Display
6. Menu Key
7. On-Off/End/Home
key
8. Audio Accessory
Connector
(at the side of the
MTH800)
9. Alphanumeric
Keypad
10. Bottom Microphone

Motorola MTH800 Specifications

General

Frequency Range	380-430 MHz
Operating Temperature	-30°C to +60°C
Ingress Protection	IP54
RF Power Output	1W
Battery Type	Li-Ion
Channels	1000
