Network Setup
4-57
3. Select a WLAN from the table displayed in the Statistics screen and click the Details button.

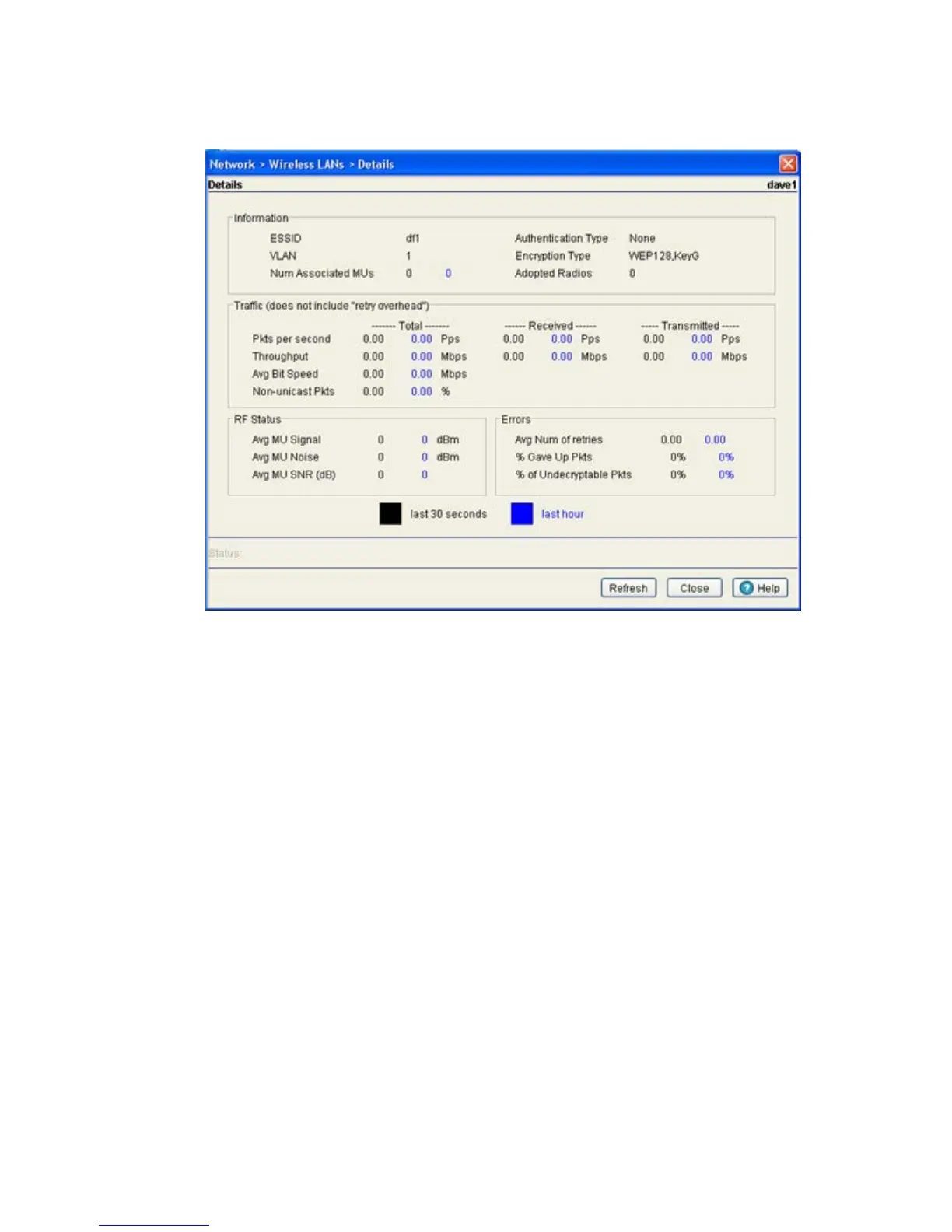

The Details screen displays the WLAN statistics of the selected WLAN. The Details screen contains
the following fields:
• Information
• Traffic
• RF Status
• Errors
Information in black represents the statistics from the last 30 seconds and information in blue
represents statistics from the last hour.
4. Refer to the Information field for the following:
ESSID Displays the Service Set ID (SSID) for the selected WLAN.
VLAN Displays the name of the VLAN the WLAN is associated with.
Num Associated
Stations
Displays the total number of MUs currently associated with the
selected WLAN.
Authentication Type Displays the authentication method deployed on the WLAN.
Encryption Type Displays the encryption type deployed on the selected WLAN.
Adopted Radios Displays the radios adopted by the selected WLAN.
