NPort 6000 Series Getting Started
2-4

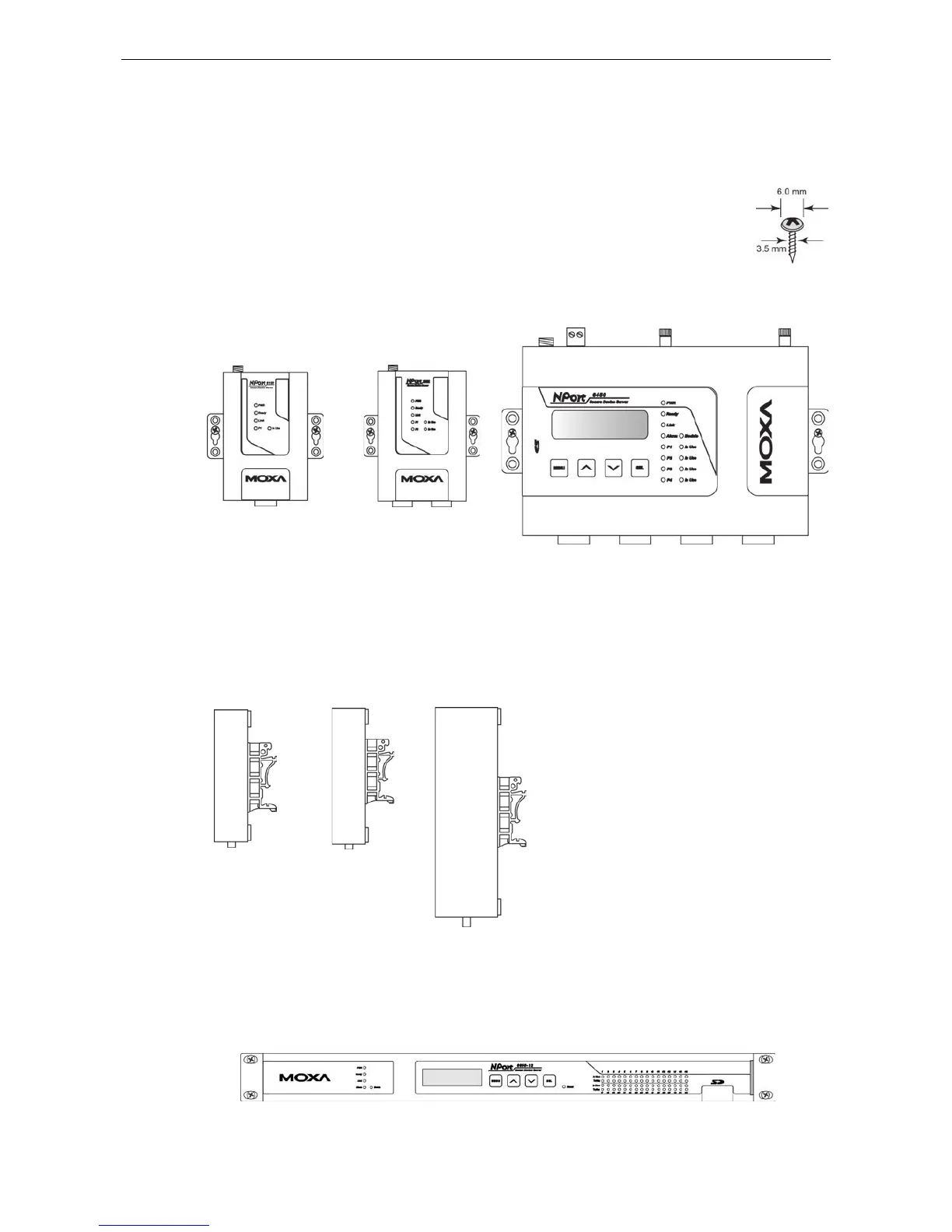

Panel, DIN-Rail, and Rack Mounting
Wall or Cabinet Mounting
The NPort 6150, 6250, and 6450 device servers have built
-in
“ears” for attaching
the device server to a wall or the inside of a cabinet. We suggest using two screws
per ear to attach the device servers to a wall or the inside of a cabinet. The heads
of the screws should be less than 6.0 mm in diameter, and the shafts should be
less than 3.5 mm in diameter, as shown in the figure at the right.
NPort 6150 NPort 6250 NPort 6450
DIN-Rail Mounting
DIN-rail attachments can be purchased separately to attach the NPort 6150, 6250, and 6450 to a DIN-rail.
When the snapping the attachments to the DIN-rail, make sure that the stiff metal springs are at the top.
NPort 6150 NPort 6250 NPort 6450
Rack Mounting
Use four screws to attach the NPort 6610/6650 to a standard rack.
NPort 6610/6650
