MP Aquinity 2 E - Page 103

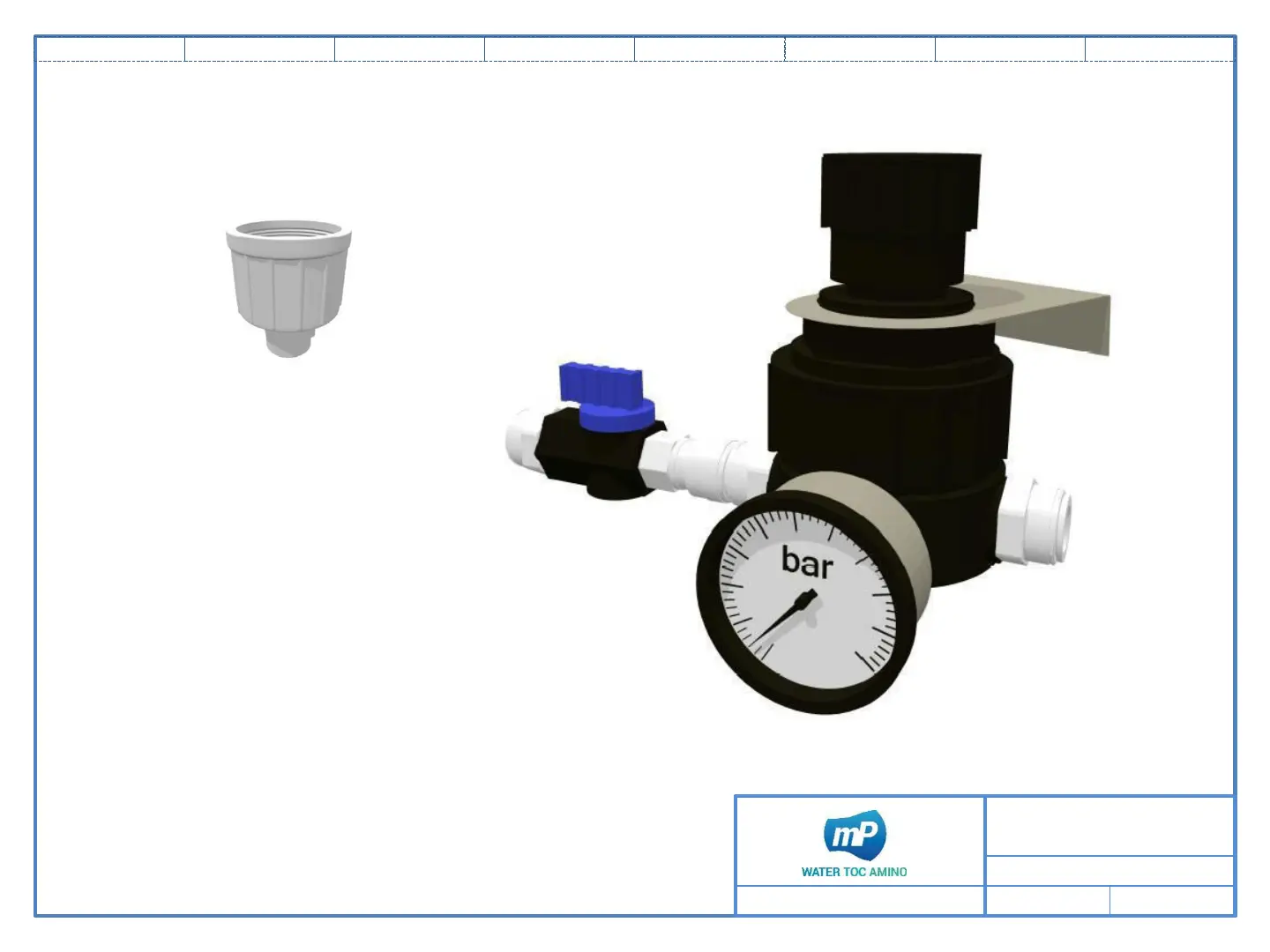

Exploded view v.1.0.
2018.04.11HaSInstallationkit (180-0072)
a b c d e f g h
Astacus² rev.2
Pressure regulator
180-0069
Female adapter NPTF thread
800-1174
Manometer
900-0107
800-1173
800-0957
800-0957
800-1170
Ball valve ¼“ NPT, PP
180-0004
Mounting bracket
810-0479
Pressure regulator 0-4 bar,
1/8“ NPTF, PP
830-0564
