Service setup

Page 60

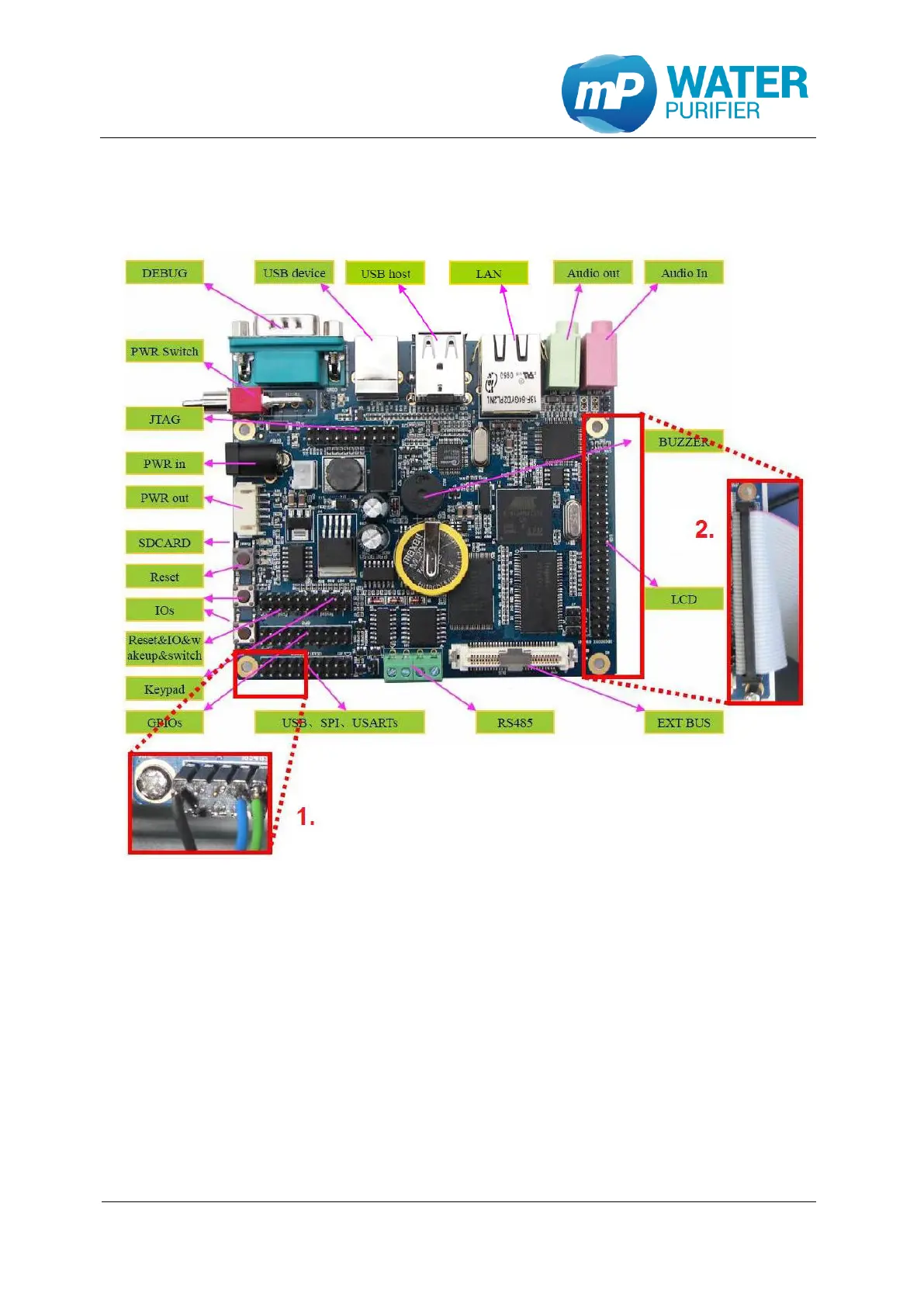

9.4 Single board computer

1. Attach connector communication control board as shown (black cable to the

outside)

2. Attach LCD connector as shown (red stripe toward Audio in/out)
