MP Aquinity 2 E - First Start; Direct Access

Service setup
Page 53

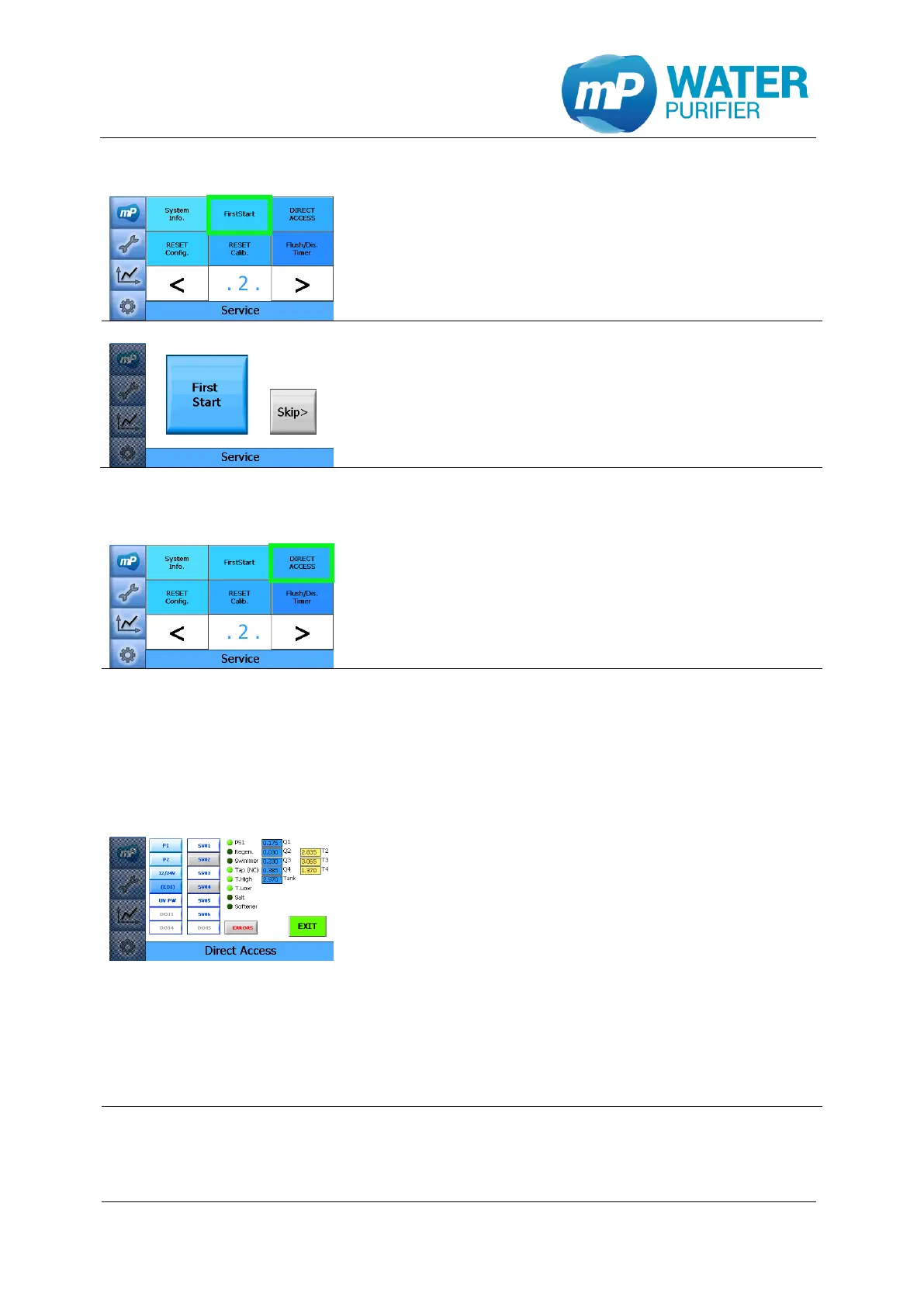

9.1.8 First start
- Press the button „FirstStart”
- This is a tool where the system can perform the
initialization process manually (see chapter 4.11)
without restarting the system
9.1.9 Direct access
- Press the button „Direct Access”
- This is a tool where each components functionality
can be checked manually
o Actuators:
 P1: pump 1 (input water)
 P2: pump 2 (pure water)
 12/24V: voltage of P2
 (EDI): electro-deionized cell (only Aquinity²E)
 UV PW: UV-lamp in pure water
 SV01~SV06: solenoid ventile 1…6
o Digital input:
 PS1: pressure sensor of input water
 Regen.: self-regeneration EDI-cell
 Swimmer: overflow detector
 Tap (NC): dispenser (normal-close)
 T.High: tanklevel sensor (top) (only Aq²P10)
 T.Low: tanklevel sensor (bottom) (only Aq²P10)
 Salt: salt detector
 Softener: softener detector
o Analog input:
 Q1-Q4: conductivity sensor 1…4
 T2-T4: temperature sensor 2…4
 Tank
