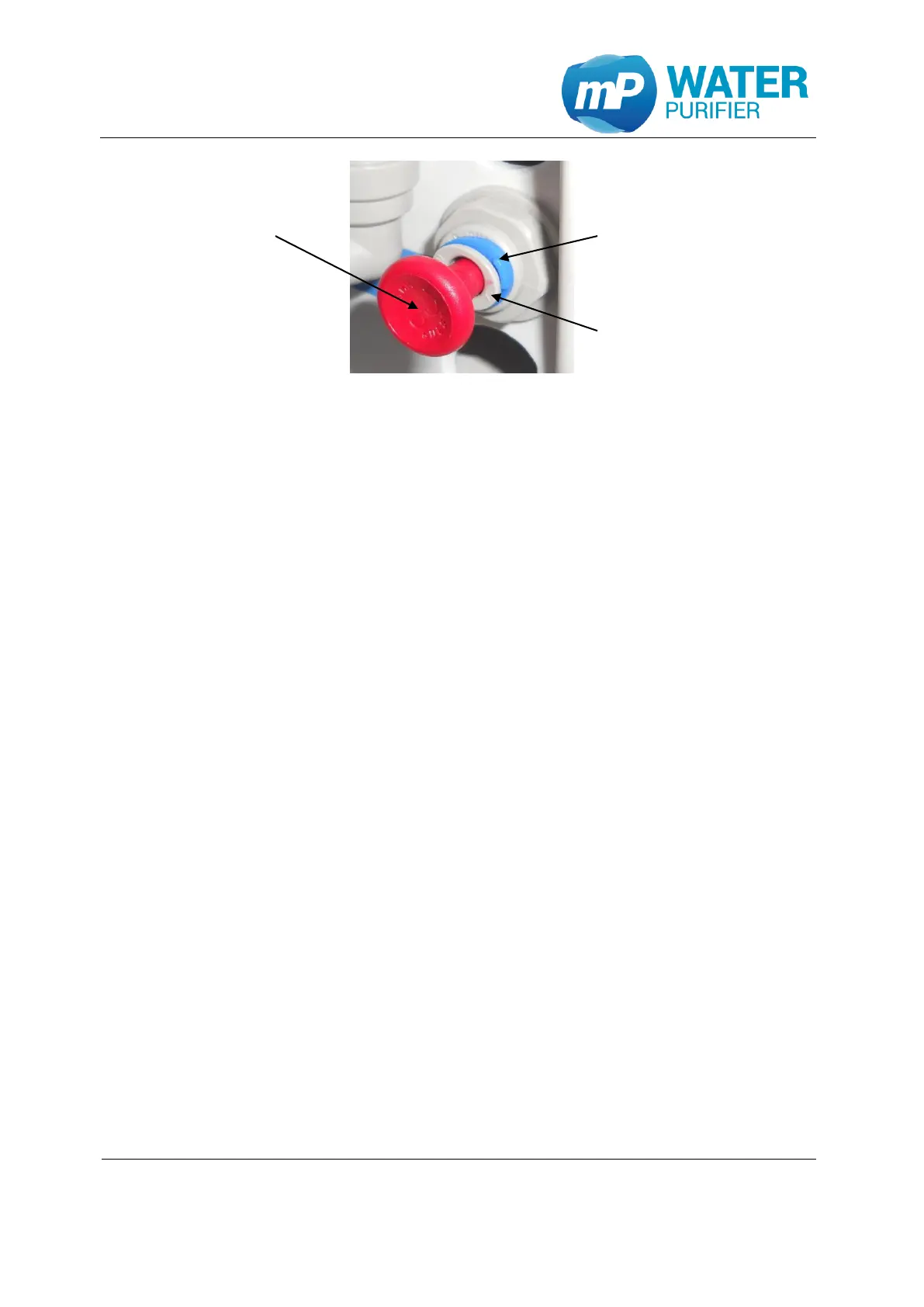

Figure 11: Sealing plug
4.6 Connections
All waste tubes must be led with a downward gradient toward the waste water drain. Any
reduction of the diameter, loops, siphons or breaks in the line must be avoided.
A minimum safety distance of 2 cm (3/4-inch) must be between tube end and waste water
to prevent siphoning. An air gap of a minimum distance of double inner tube diameter is
recommended.
- Plug the tubes in until stop position. The tube must bottom out in connecter. Tubes
have to be locked with the union nut.
- Connect the tubes correspondently to their markings and push them to the stop.
- Plug the socket of the level sensor to the tank and fasten it.
- Screw the tap to the provided opening at the front of the tank. Please note that the
tap is supposed to point downwards.
- Screw the cap onto the tank
2. Depress fastening ring
