page 30

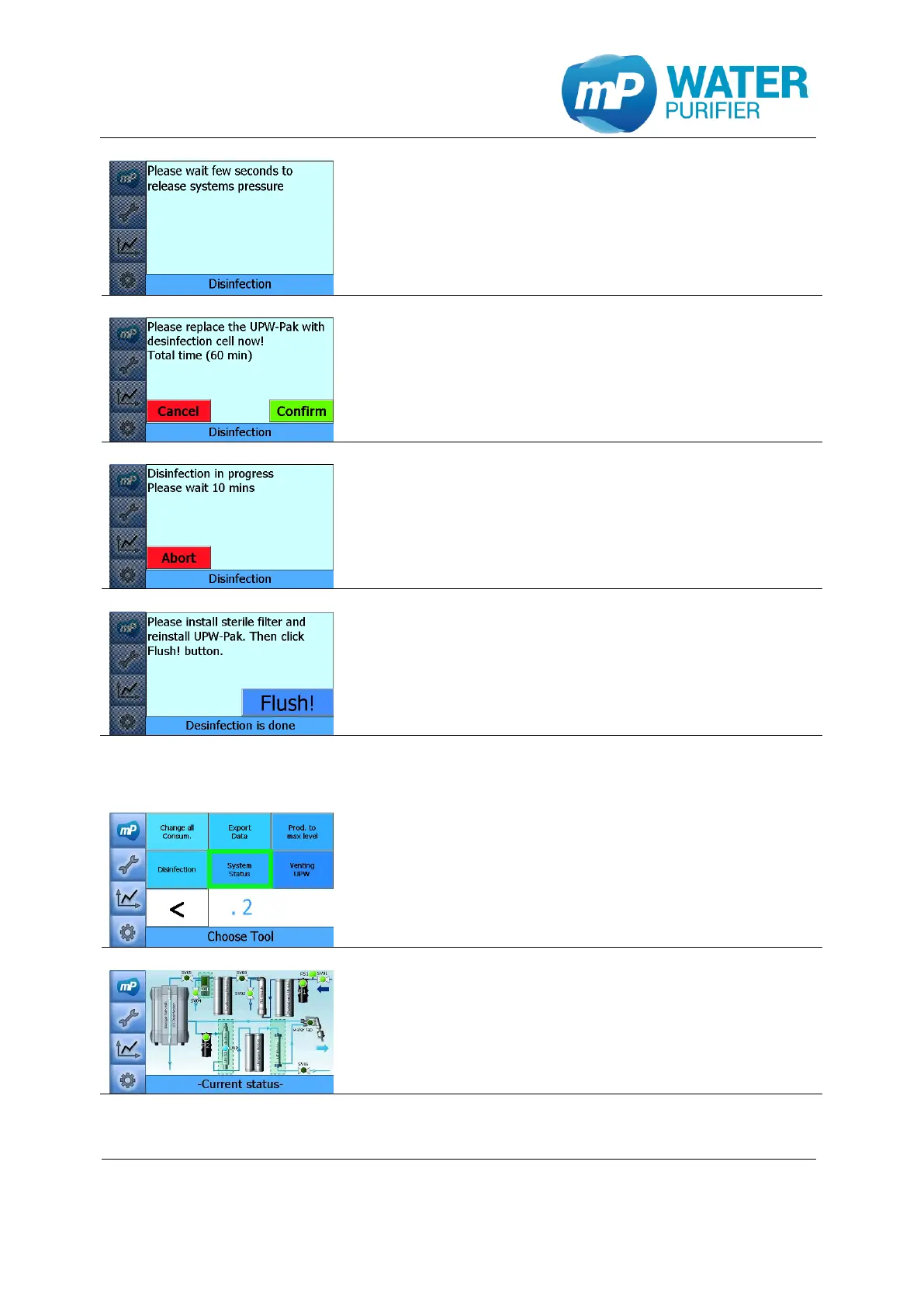

- Waiting few seconds to release system pressure
- Replace the polisher module UPW-Pak with the
disinfection cell (see chapter 6.7)
- Then click “Confirm”
- Running the desinfection process for ca. 60 mins
- Install the sterile filter (see chapter 4.9)
- Reinstall the polisher module UPW-Pak
- Flushing the pure water section by clicking the
“Flush!” button
5.2.8 Process visualization (system-status)
- Press the button „System-Status”
- The entire process is illustrated schematically. The
state of all active components is displayed
