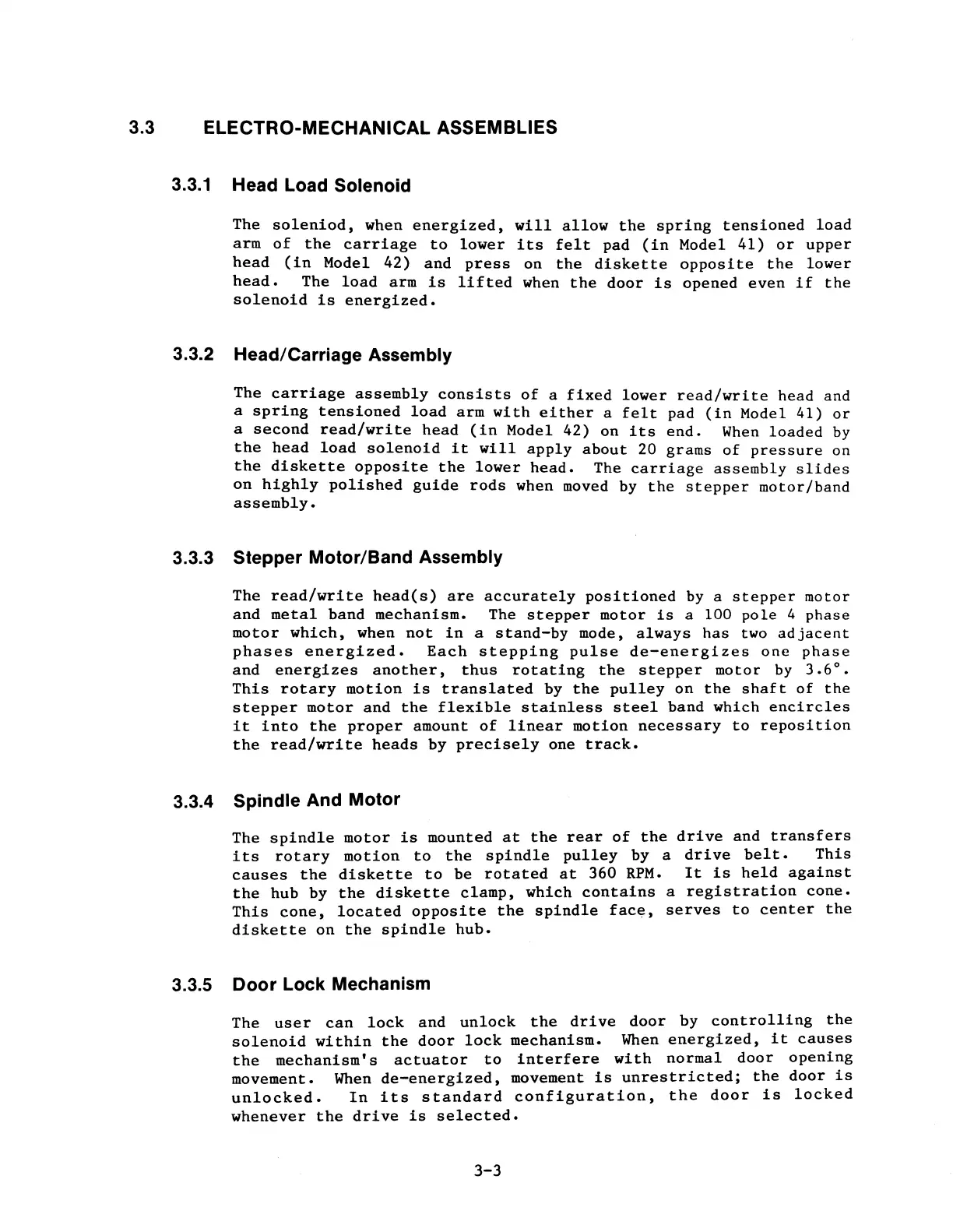

3.3 ELECTRO-MECHANICAL ASSEMBLIES
3.3.1
Head Load Solenoid
The
soleniod,
when
energized,
will
allow
the
spring
tensioned
load
arm
of
the
carriage
to
lower
its
felt
pad
(in
Model
41)
or
upper
head
(in
Model
42)
and
press
on
the
diskette
opposite
the
lower
head.
The
load
arm
is
lifted
when
the
door
is
opened
even
if
the
solenoid
is
energized.
3.3.2 Head/Carriage Assembly
The
carriage
assembly
consists
of
a
fixed
lower
read/write
head and
a
spring
tensioned
load
arm
with
either
a
felt
pad
(in
Model 41)
or
a
second
read/write
head
(in
Model
42)
on
its
end.
When
loaded
by
the
head
load
solenoid
it
will
apply
about
20 grams
of
pressure
on
the
diskette
opposite
the
lower
head.
The
carriage
assembly
slides
on
highly
polished
guide
rods
when
moved
by
the
stepper
motor/band
assembly.
3.3.3 Stepper Motor/Band Assembly
The
read/write
head(s)
are
accurately
positioned
by a
stepper
motor
and
metal
band
mechanism. The
stepper
motor
is
a 100
pole
4
phase
motor
which,
when
not
in
a
stand-by
mode,
always
has
two
adjacent
phases
energized.
Each
stepping
pulse
de-energizes
one
phase
and
energizes
another,
thus
rotating
the
stepper
motor
by
3.6°.
This
rotary
motion
is
translated
by
the
pulley
on
the
shaft
of
the
stepper
motor
and
the
flexible
stainless
steel
band
which
encircles
it
into
the
proper
amount
of
linear
motion
necessary
to
reposition
the
read/write
heads
by
precisely
one
track.
3.3.4 Spindle And Motor
The
spindle
motor
is
mounted
at
the
rear
of
the
drive
and
transfers
its
rotary
motion
to
the
spindle
pulley
by a
drive
belt.
This
causes
the
diskette
to
be
rotated
at
360
RPM.
It
is
held
against
the
hub by
the
diskette
clamp,
which
contains
a
registration
cone.
This
cone,
located
opposite
the
spindle
fac~,
serves
to
center
the
diskette
on
the
spindle
hub.
3.3.5 Door Lock Mechanism
The
user
can
lock
and
unlock
the
drive
door
by
controlling
the
solenoid
within
the
door
lock
mechanism.
When
energized,
it
causes
the
mechanism's
actuator
to
interfere
with
normal
door
opening
movement.
When
de-energized,
movement
is
unrestricted;
the
door
is
unlocked.
In
its
standard
configuration,
the
door
is
locked
whenever
the
drive
is
selected.
3-3
