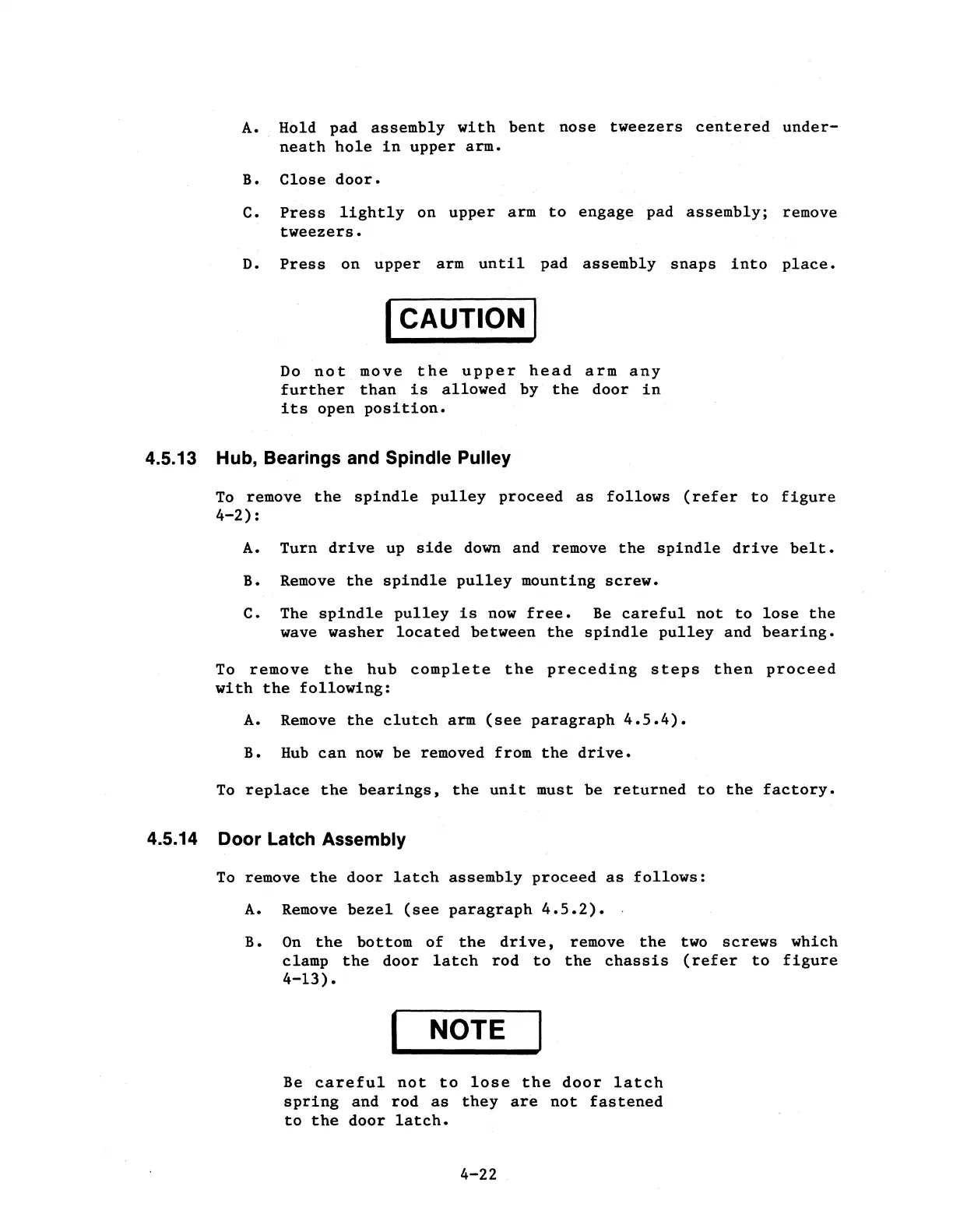

A. Hold pad assembly with bent nose tweezers centered under-
neath hole in upper arm.
B. Close door.
C. Press lightly on upper arm to engage pad assembly; remove
tweezers.
D. Press on upper arm until pad assembly snaps into place.
I CAUTION I
Do not move the upper head arm any
further than is allowed by the door in
its open position.
4.5.13 Hub, Bearings and Spindle Pulley
To remove the spindle pulley proceed as follows (refer to figure
4-2):
A. Turn drive up side down and remove the spindle drive belt.
B. Remove the spindle pulley mounting screw.
C. The spindle pulley is now free. Be careful not to lose the
wave washer located between the spindle pulley and bearing.
To remove the hub complete the preceding steps then proceed
with the following:
A. Remove the clutch arm (see paragraph 4.5.4).
B. Hub can now be removed from the drive.
To replace the bearings, the unit must be returned to the factory.
4.5.14 Door Latch Assembly
To remove the door latch assembly proceed as follows:
A. Remove bezel (see paragraph 4.5.2). .
B. On the bottom of the drive, remove the two screws which
clamp the door latch rod to the chassis (refer to figure
4-13).
I NOTE
Be careful not to lose the door latch
spring and rod as they are not fastened
to the door latch.
4-22
