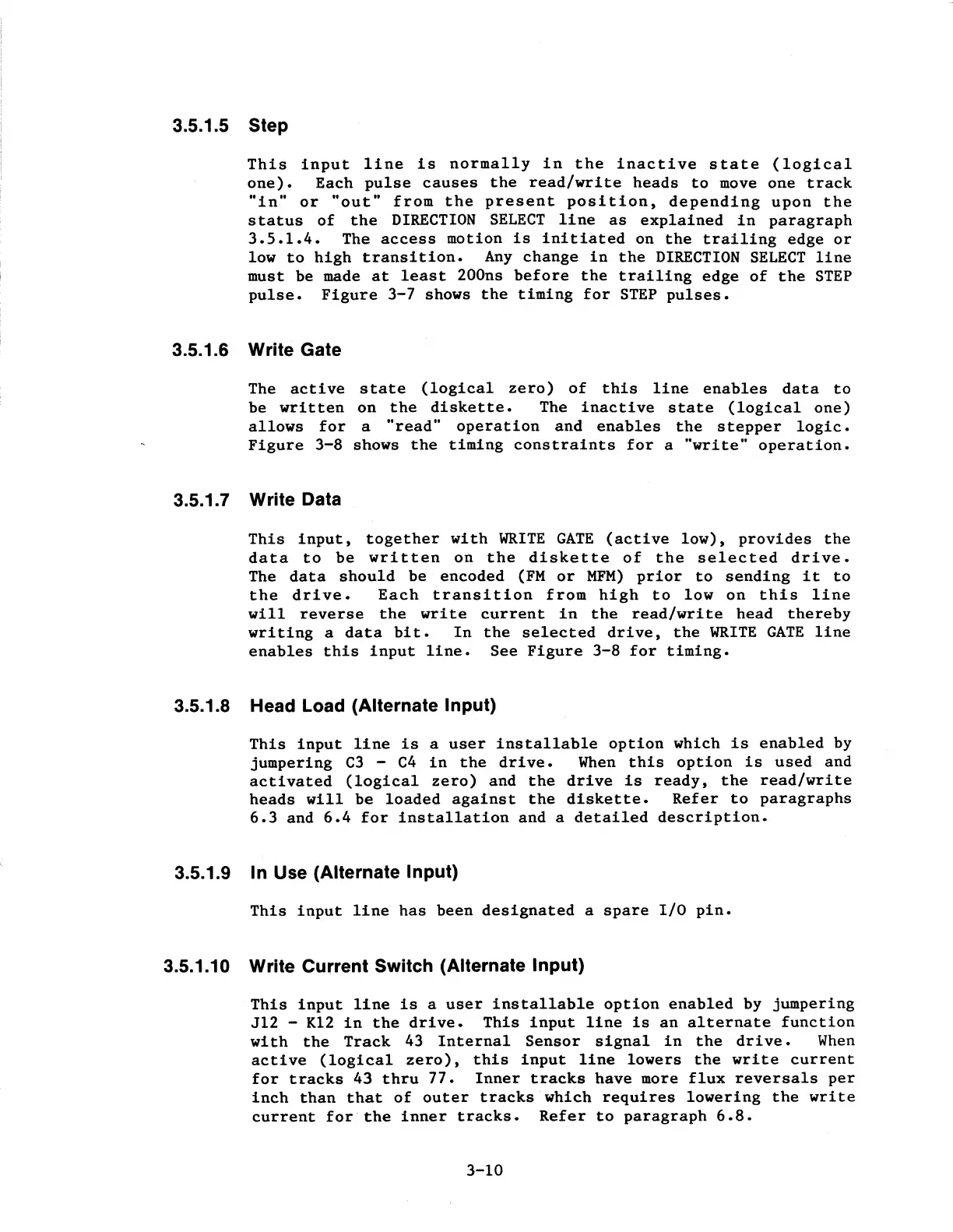

3.5.1.5 Step
This
input
line
is
normally
in
the
inactive
state
(logical
one).
Each
pulse
causes
the
read/write
heads
to
move
one
track
"in"
or
"out"
from
the
present
position,
depending
upon
the
status
of
the
DIRECTION
SELECT
line
as
explained
in
paragraph
3.5.1.4.
The
access
motion
is
initiated
on
the
trailing
edge
or
low
to
high
transition.
Any
change
in
the
DIRECTION
SELECT
line
must be made
at
least
200ns
before
the
trailing
edge
of
the
STEP
pulse.
Figure
3-7
shows
the
timing
for
STEP
pulses.
3.5.1.6 Write Gate
The
active
state
(logical
zero)
of
this
line
enables
data
to
be
written
on
the
diskette.
The
inactive
state
(logical
one)
allows
for
a
"read"
operation
and
enables
the
stepper
logic.
Figure
3-8
shows
the
timing
constraints
for
a
"write"
operation.
3.5.1.7 Write Data
This
input,
together
with
WRITE
GATE
(active
low),
provides
the
data
to
be
written
on
the
diskette
of
the
selected
drive.
The
data
should
be
encoded
(FM
or
MFM)
prior
to
sending
it
to
the
drive.
Each
transition
from
high
to
low
on
this
line
will
reverse
the
write
current
in
the
read/write
head
thereby
writing
a
data
bit.
In
the
selected
drive,
the
WRITE
GATE
line
enables
this
input
line.
See
Figure
3-8
for
timing.
3.5.1.8 Head Load (Alternate Input)
This
input
line
is
a
user
installable
option
which
is
enabled
by
jumpering
C3
-
C4
in
the
drive.
When
this
option
is
used
and
activated
(logical
zero)
and
the
drive
is
ready,
the
read/write
heads
will
be
loaded
against
the
diskette.
Refer
to
paragraphs
6.3
and
6.4
for
installation
and a
detailed
description.
3.5.1.9 In Use (Alternate Input)
This
input
line
has
been
designated
a
spare
I/O
pin.
3.5.1.10 Write Current Switch (Alternate Input)
This
input
line
is
a
user
installable
option
enabled
by
jumpering
J12
-
K12
in
the
drive.
This
input
line
is
an
alternate
function
with
the
Track
43
Internal
Sensor
signal
in
the
drive.
When
active
(logical
zero),
this
input
line
lowers
the
write
current
for
tracks
43
thru
77.
Inner
tracks
have
more
flux
reversals
per
inch
than
that
of
outer
tracks
which
requires
lowering
the
write
current
for
the
inner
tracks.
Refer
to
paragraph
6.8.
3-10
