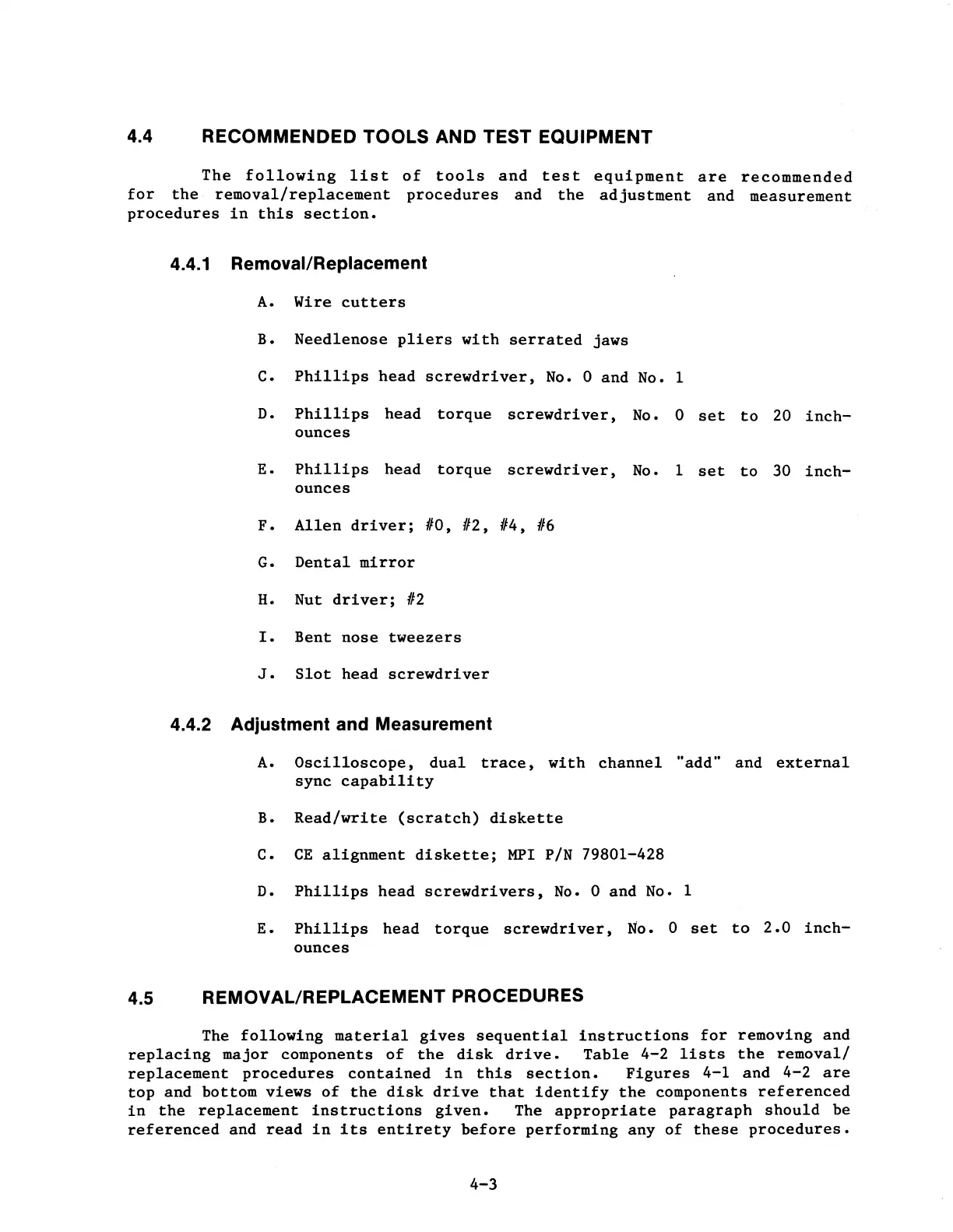

4.4

RECOMMENDED

TOOLS

AND

TEST

EQUIPMENT

The

following

list

of

tools

and

test

equipment

are

recommended

for

the

removal/replacement

procedures

and

the

adjustment

and

measurement

procedures

in

this

section.

4.4.1 Removal/Replacement

A.

Wire

cutters

B.

Needlenose

pliers

with

serrated

jaws

c.

Phillips

head

screwdriver,

No. 0

and

No. 1

D.

Phillips

head

torque

screwdriver,

No. 0

set

to

20

inch-

ounces

E.

Phillips

head

torque

screwdriver,

No. 1

set

to

30

inch-

ounces

F.

Allen

driver;

#0, #2, #4,

#6

G.

Dental

mirror

H.

Nut

driver;

#2

I.

Bent

nose

tweezers

J.

Slot

head

screwdriver

4.4.2 Adjustment and Measurement

A.

Oscilloscope,

dual

trace,

with

channel

"add"

and

external

sync

capability

B.

Read/write

(scratch)

diskette

c.

CE

alignment

diskette;

MP!

P/N 79801-428

D.

Phillips

head

screwdrivers,

No. 0

and

No. 1

E.

Phillips

head

torque

screwdriver,

No. 0

set

to

2.

0

inch-

ounces

4.5 REMOVAL/REPLACEMENT PROCEDURES

The

following

material

gives

sequential

instructions

for

removing

and

replacing

major

components

of

the

disk

drive.

Table

4-2

lists

the

removal/

replacement

procedures

contained

in

this

section.

Figures

4-1

and

4-2

are

top

and

bottom

views

of

the

disk

drive

that

identify

the

components

referenced

in

the

replacement

instructions

given.

The

appropriate

paragraph

should

be

referenced

and

read

in

its

entirety

before

performing

any

of

these

procedures.

4-3
