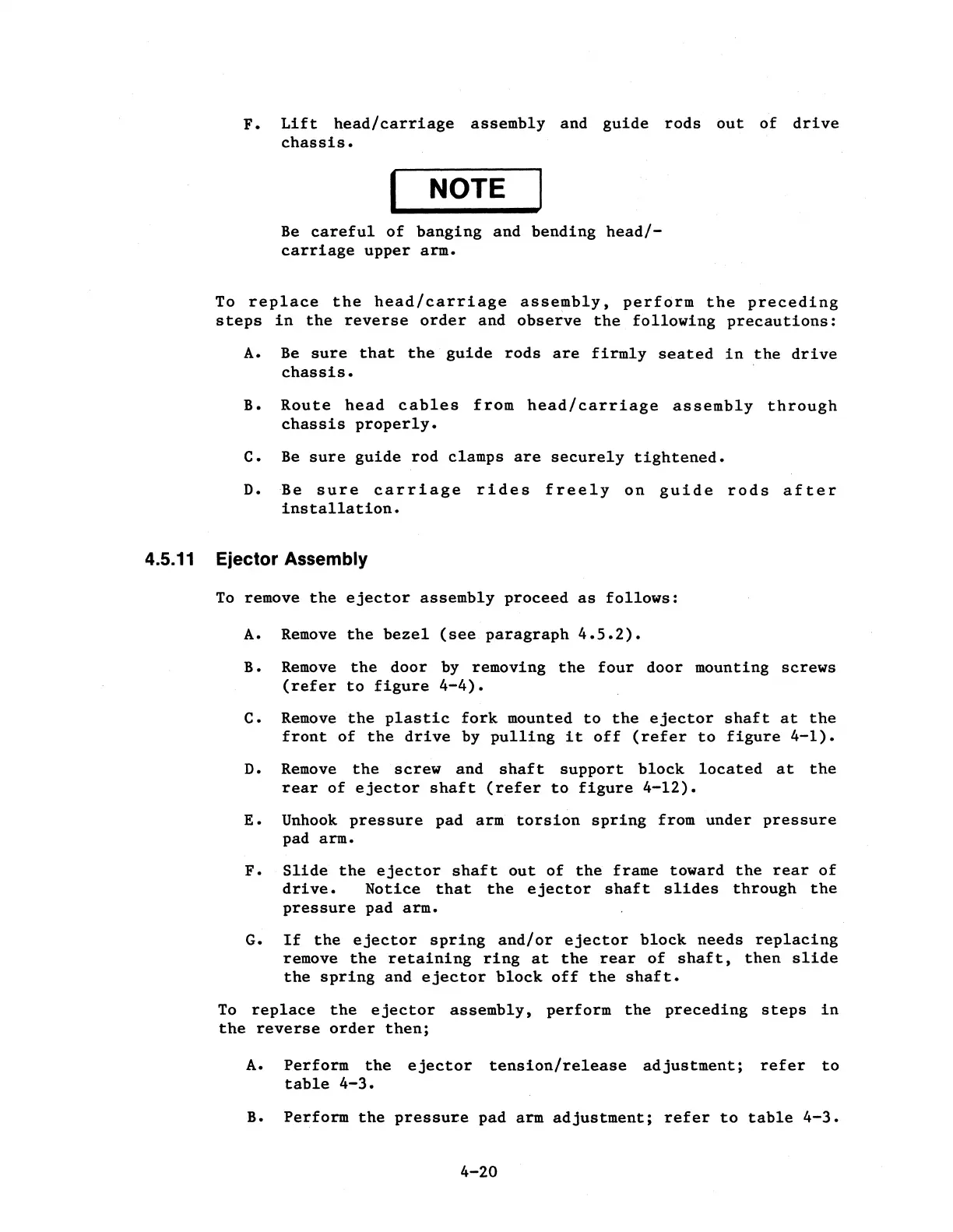

F. Lift head/ carriage assembly and guide rods out of drive
chassis.
I NOTE
Be careful of banging and bending head/-
carriage upper arm.
To replace the head/carriage assembly, perform the preceding
steps in the reverse order and observe the following precautions:
A. Be sure that the guide rods are firmly seated in the drive
chassis.
B. Route head cables from head/carriage assembly through
chassis properly.
c. Be sure guide rod clamps are securely tightened.
D. Be sure carriage rides freely on guide rods after
installation.
4.5.11 Ejector Assembly
To remove the ejector assembly proceed as follows:
A. Remove the bezel (see paragraph 4.5.2).
B. Remove the door by removing the four door mounting screws
(refer to figure 4-4).
c. Remove the plastic fork mounted to the ejector shaft at the
front of the drive by pulling it off (refer to figure 4-1).
D. Remove the screw and shaft support block located at the
rear of ejector shaft (refer to figure 4-12).
E. Unhook pressure pad arm torsion spring from under pressure
pad arm.
F. Slide the ejector shaft out of the frame toward the rear of
drive. Notice that the ejector shaft slides through the
pressure pad arm.
G. If the ejector spring and/or ejector block needs replacing
remove the retaining ring at the rear of shaft, then slide
the spring and ejector block off the shaft.
To replace the ejector assembly, perform the preceding steps in
the reverse order then;
A. Perform the ejector tension/release adjustment; refer to
table 4-3.
B. Perform the pressure pad arm adjustment; refer to table 4-3.
4-20
