MPI 40 Series - Printed Circuit Board Assemblies (PCBA); Removal;Replacement Procedures

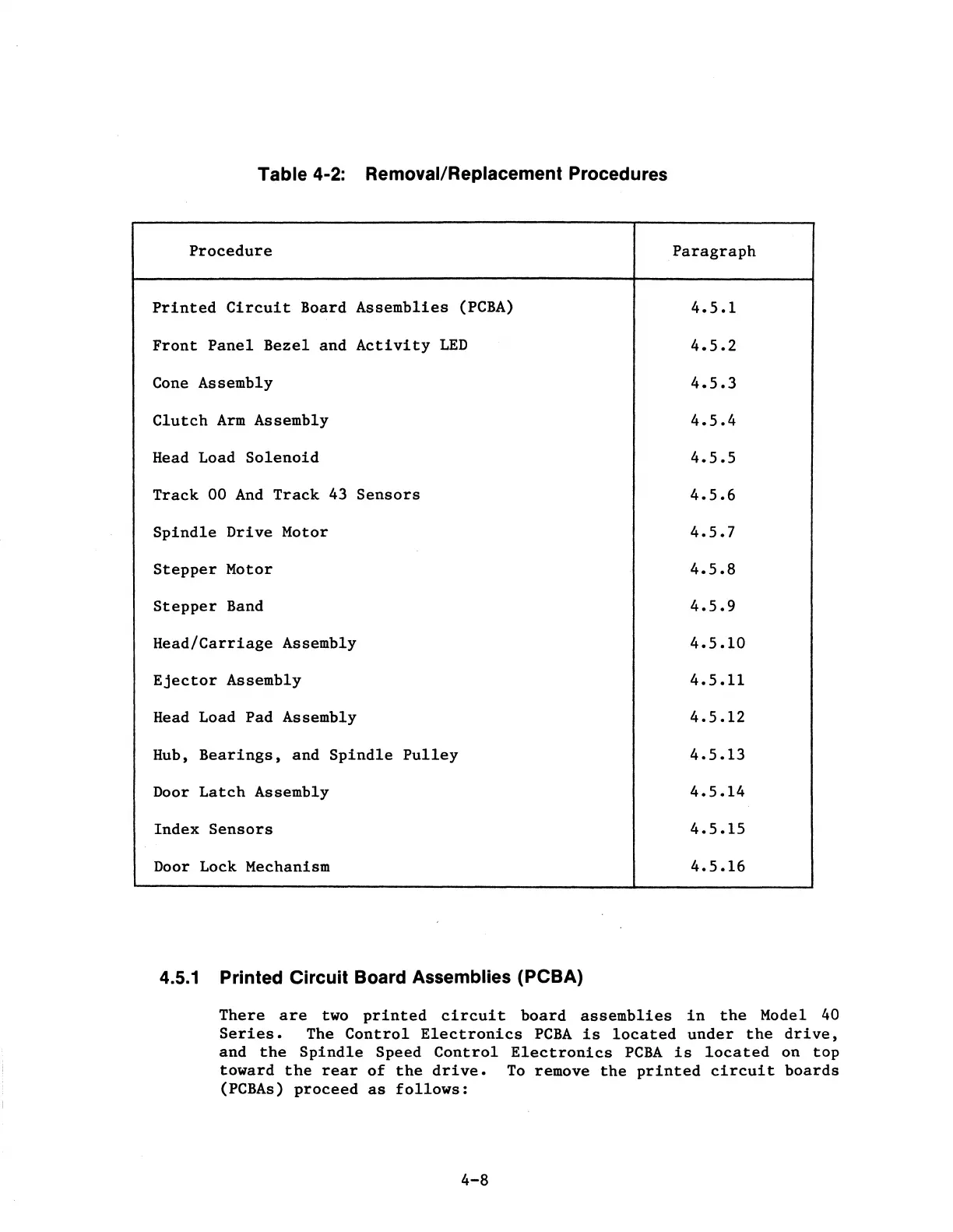

Table 4-2: Removal/Replacement Procedures
Procedure Paragraph
Printed Circuit Board Assemblies (PCBA)
4.5.1
Front Panel Bezel and Activity LED
4.5.2
Cone Assembly
4.5.3
Clutch Arm Assembly 4.5.4
Head Load Solenoid
4.5.5
Track 00 And Track 43 Sensors
4.5.6
Spindle Drive Motor
4.5.7
Stepper Motor
4.5.8
Stepper Band 4.5.9
Head/Carriage Assembly 4.5.10
Ejector Assembly 4.5.11
Head Load Pad Assembly 4.5.12
Hub, Bearings, and Spindle Pulley 4.5.13
Door Latch Assembly
4.5.14
Index Sensors
4.5.15
Door Lock Mechanism
4.5.16
4.5.1 Printed Circuit Board Assemblies (PCBA)
There are two printed circuit board assemblies in the Model 40
Series. The Control Electronics PCBA is located under the drive,
and the Spindle Speed Control Electronics PCBA is located on top
toward the rear of the drive. To remove the printed circuit boards
(PCBAs) proceed as follows:
4-8
