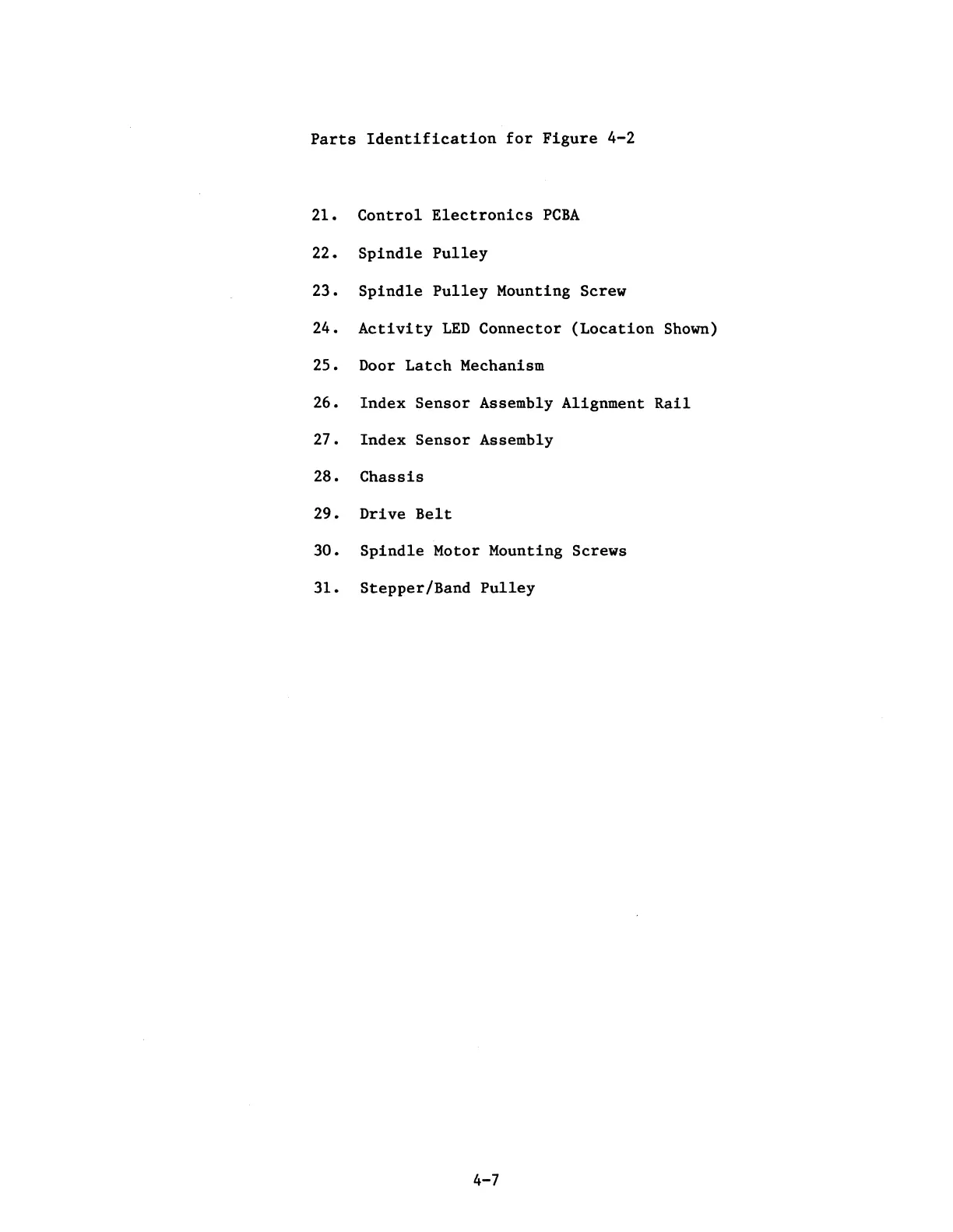

Parts Identification for Figure 4-2
21. Control
Electronics PCBA
22.
Spindle
Pulley
23.
Spindle
Pulley Mounting Screw
24.
Activity LED Connector (Location
Shown)
25.
Door Latch Mechanism
26.
Index Sensor Assembly Alignment
Rail
27.
Index Sensor Assembly
28.
Chassis
29. Drive Belt
30.
Spindle Motor
Mounting
Screws
31. Stepper/Band Pulley
4-7
