MPI 40 Series - Index Sensors; Door Lock Mechanism

c. Remove door latch, spring, and rod from the drive.
To replace the door latch assembly perform the preceding steps
in the reverse order and also;
A. Verify that door lock arm impedes latch movement when
solenoid arm is actuated manually, and does not impede latch
movement when solenoid arm is in the "at rest" position.
Door Lock Mechanism
Door Lock arm
Door Latch Rod

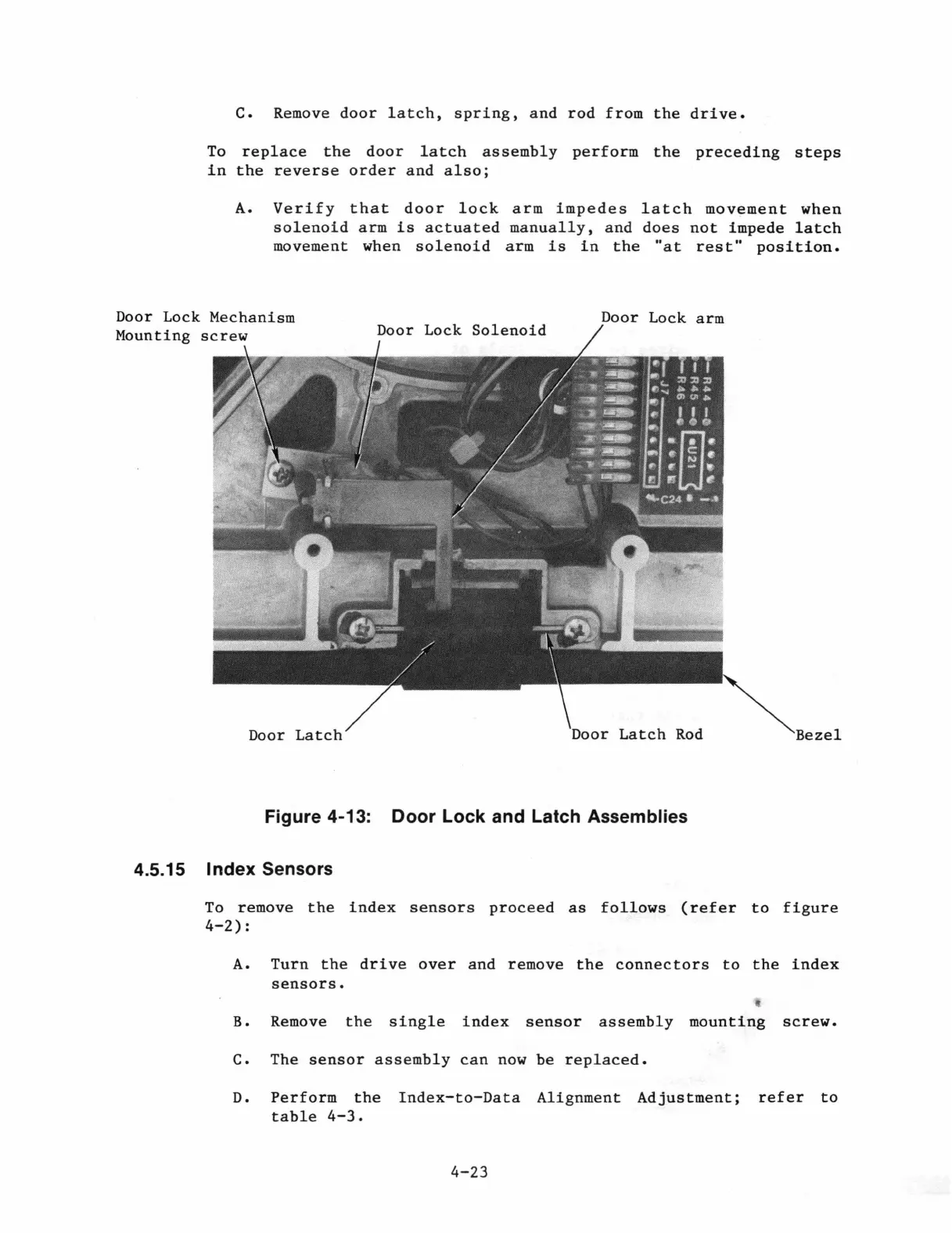

Figure 4-13: Door Lock and Latch Assemblies
4.5.15 Index Sensors
To remove the index sensors proceed as follows (refer to figure
4-2):
A. Turn the drive over and remove the connectors to the index
sensors.
B. Remove the single index sensor assembly mounting screw.
C. The sensor assembly can now be replaced.
D. Perform the Index-to-Data Alignment Adjustment; refer to
table 4-3.
4-23
