4.5.3 Cone Assembly
Frame/Chassis
The cone assembly fits within the drive spindle assembly and is
attached to the clutch arm. To remove this assembly proceed as
follows:
A. Remove the clutch arm (see paragraph 4.5.4).
B. Remove the snap ring and shims from the top of the clutch
arm assembly (refer to figure 4-6).
C. Cone can now be removed from clutch arm.
To replace the cone assembly perform the preceding steps in the
reverse order.
Cone/Clutch Snap Ring
Clutch Arm
LEDs
Mounting Screws

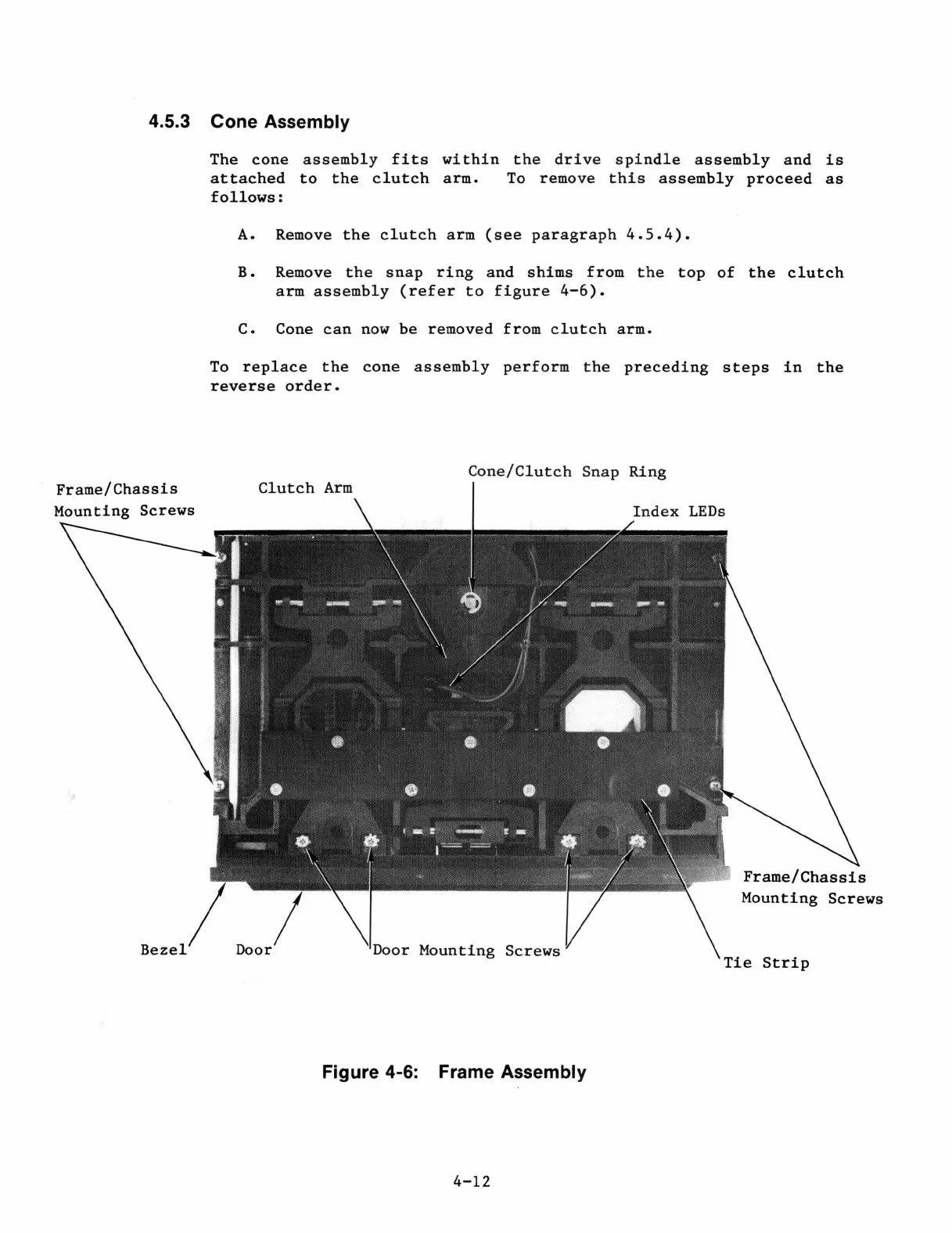

Figure 4-6: Frame Assembly
4-12
