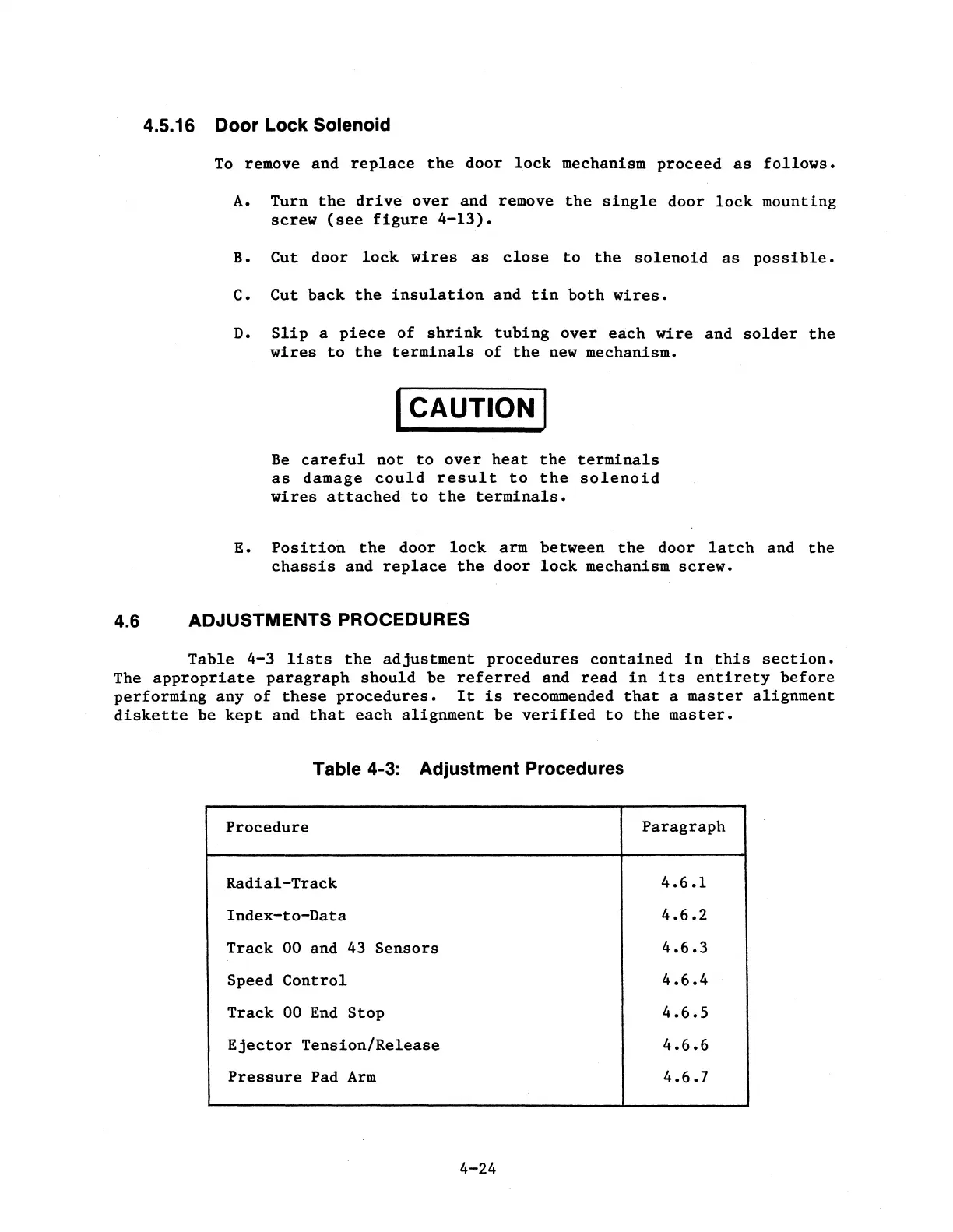

4.5.16 Door Lock Solenoid
To remove and replace the door lock mechanism proceed as follows.
A. Turn the drive over and remove the single door lock mounting
screw (see figure 4-13).
B. Cut door lock wires as close to the solenoid as possible.
C. Cut back the insulation and tin both wires.
D. Slip a piece of shrink tubing over each wire and solder the
wires to the terminals of the new mechanism.
I CAUTION I
Be careful not to over heat the terminals
as damage could result to the solenoid
wires attached to the terminals.
E. Position the door lock arm between the door latch and the
chassis and replace the door lock mechanism screw.
4.6 ADJUSTMENTS PROCEDURES
Table 4-3 lists the adjustment procedures contained in this section.
The appropriate paragraph should be referred and read in its entirety before
performing any of these procedures. It is recommended that a master alignment
diskette be kept and that each alignment be verified to the master.
Table 4-3: Adjustment Procedures
Procedure
Paragraph
Radial-Track
4.6.1
Index-to-Data
4.6.2
Track 00 and 43 Sensors
4.6.3
Speed Control 4.6.4
Track 00 End Stop 4.6.5
Ejector Tension/Release 4.6.6
Pressure Pad Arm
4.6.7
