is
active
it
disables
the
write
operation.
For
single
sided
drives
(Model
41),
a
"flippy"
option
for
write
protect
is
available
which
allows
double
sided
diskette
usage
in
single
sided
drives.

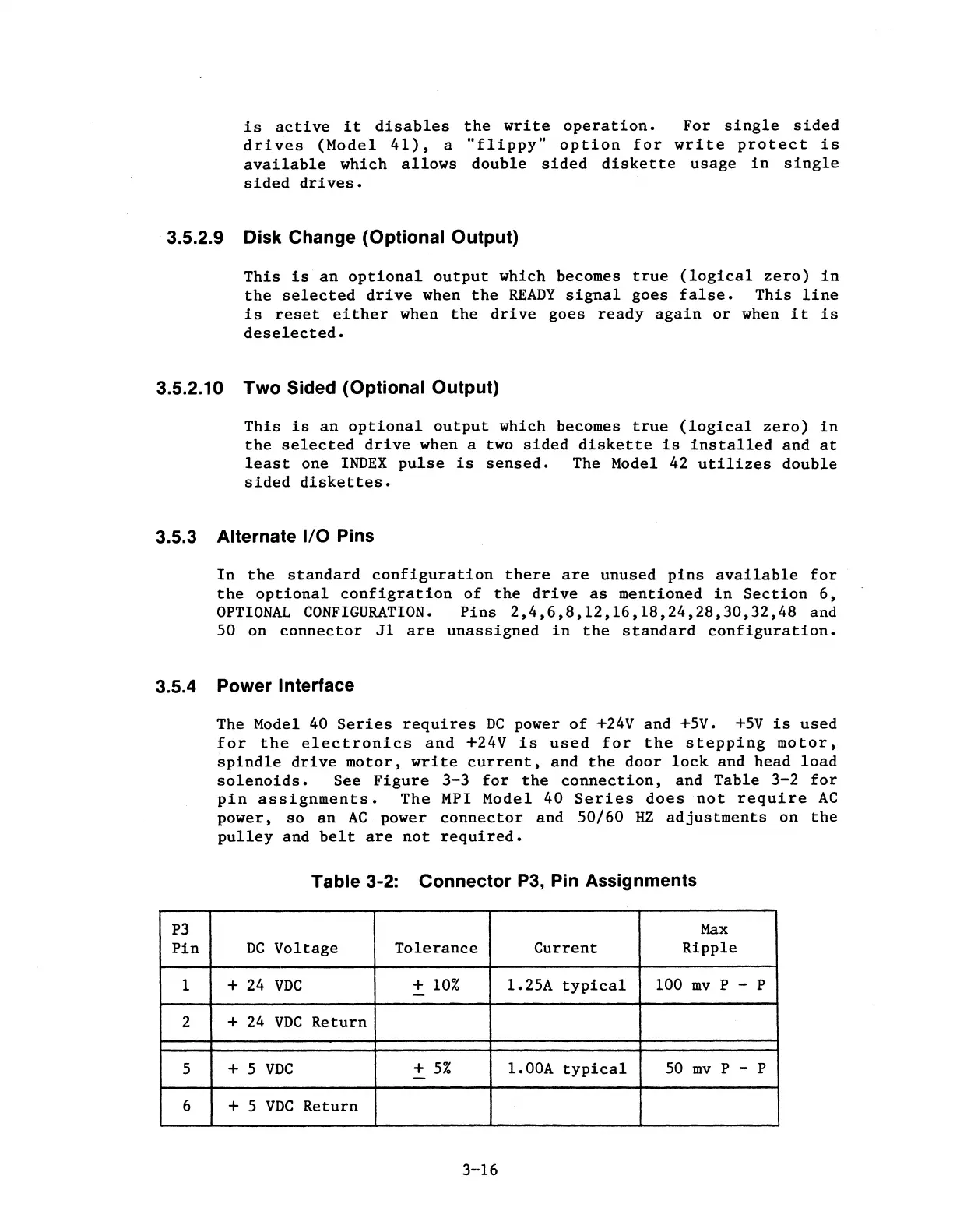

3.5.2.9 Disk Change (Optional Output)
This
is
an
optional
output
which
becomes
true
(logical
zero)
in
the
selected
drive
when
the
READY
signal
goes
false.
This
line
is
reset
either
when
the
drive
goes
ready
again
or
when
it
is
deselected.
3.5.2.10 Two Sided (Optional Output)
This
is
an
optional
output
which
becomes
true
(logical
zero)
in
the
selected
drive
when a two
sided
diskette
is
installed
and
at
least
one
INDEX
pulse
is
sensed.
The Model 42
utilizes
double
sided
diskettes.
3.5.3 Alternate 1/0 Pins
In
the
standard
configuration
there
are
unused
pins
available
for
the
optional
configration
of
the
drive
as
mentioned
in
Section
6,
OPTIONAL
CONFIGURATION.
Pins
2,
4,
6,
8,
12, 16,
18,
24, 28,
30, 32,
48 and
50 on
connector
Jl
are
unassigned
in
the
standard
configuration.
3.5.4 Power Interface
P3
Pin
1
2
5
6
The Model 40
Series
requires
DC
power
of
+24V
and
+5V.
+5V
is
used
for
the
electronics
and
+24V
is
used
for
the
stepping
motor,
spindle
drive
motor,
write
current,
and
the
door
lock
and
head
load
solenoids.
See
Figure
3-3
for
the
connection,
and
Table
3-2
for
pin
assignments.
The
MPI
Model
40
Series
does
not
require
AC
power,
so
an
AC
power
connector
and
50/60
HZ
adjustments
on
the
pulley
and
belt
are
not
required.
Table
3~2:
Connector P3, Pin Assignments
Max
DC
Voltage
Tolerance
Current
Ripple
+ 24
VDC
+
10%
1.25A
typical
100
mv
P -
p
-
+
24
VDC
Return
+
5
VDC
+
5%
1.00A
typical
50
mv
P - P
-
+
5
VDC
Return
