it down with weights. The following procedure tells you how to anchor
the pedestal to a concrete floor.

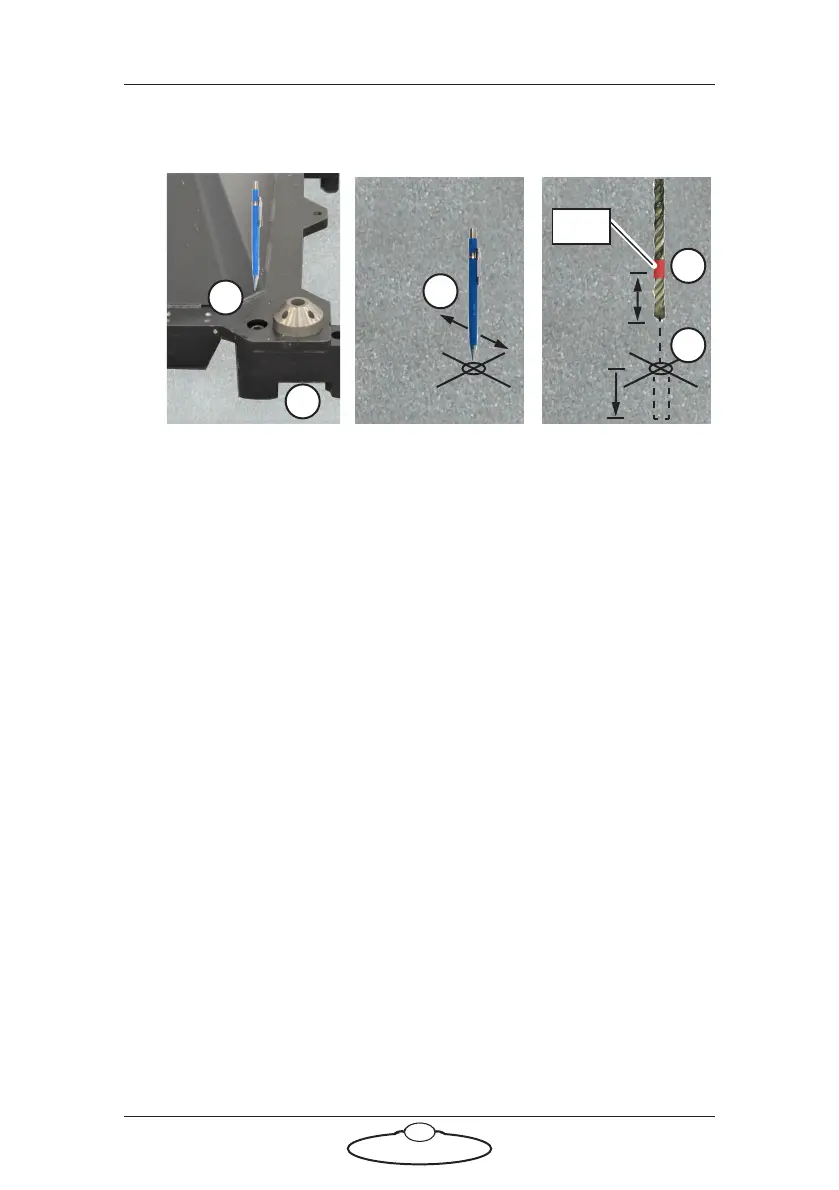

1. Temporarily put the Bolt X On Pedestal into place where you want.
2. At one corner of the pedestal, use one of the two holes to draw a
circle on the concrete with a pencil, to mark the position of the hole.
You can use either hole.
Repeat for the other three corners of the pedestal.
3. Temporarily remove Bolt X On Pedestal and at one of the four
circles that you have drawn, draw a cross centred on the circle, to
help you precisely locate the drill bit.
Repeat for the other three corners.
4. On the 20mm diameter drill bit, put tape around the bit 5 cm from
the tip. This will help you gauge the depth of the hole in the next
step.
5. At one of the corner circles, drill a hole 5 cm deep into the concrete,
centred on the cross. When the tape on the drill bit reaches the floor,
drilling is complete.
Repeat for the other three corners.
6. Clean the four holes.
× 4 corners
2
1
2
× 4 corners
3
× 4 corners
5 cm
5 cm
Tap e
5
4
To Next Page
