Bolt X Quick Start Guide
12

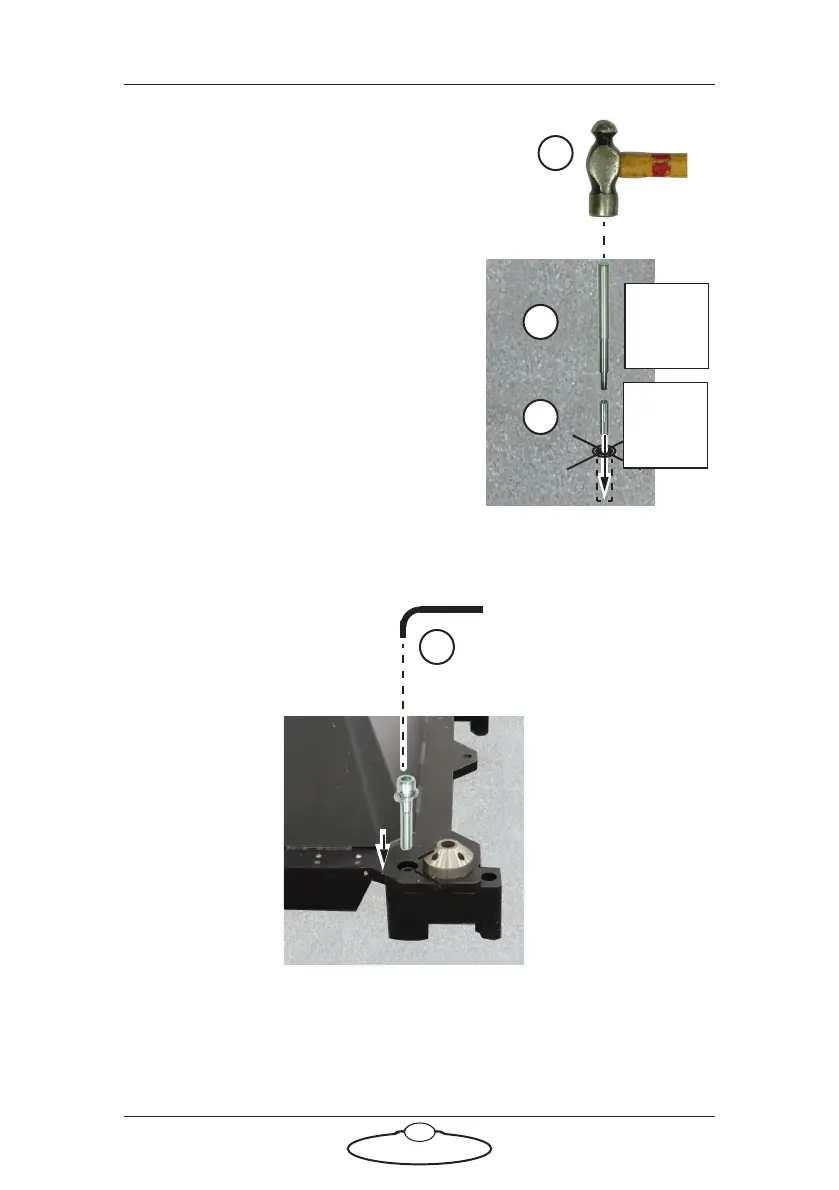

7. At one of the holes insert the drop-in
anchor insert, threads upward, all
the way to the bottom.
8. Insert the anchor spreader tool into
the drop-in anchor insert.
9. Hit the top of the anchor spreader
tool with a hammer until the anchor
is fully spread in the concrete.
10. Remove the anchor spreader tool.
11. Repeat steps 7 to 10 for the other
three corners.
12. Put Bolt X On Pedestal in place over
the holes.
13. Insert the four retaining bolts (M16)
through the corners of the base and
into the drop-in anchor inserts, and
tighten.
7
Anchor
spreader
tool
8
9
Drop-in
anchor
insert
× 4 corners
13
To Next Page
