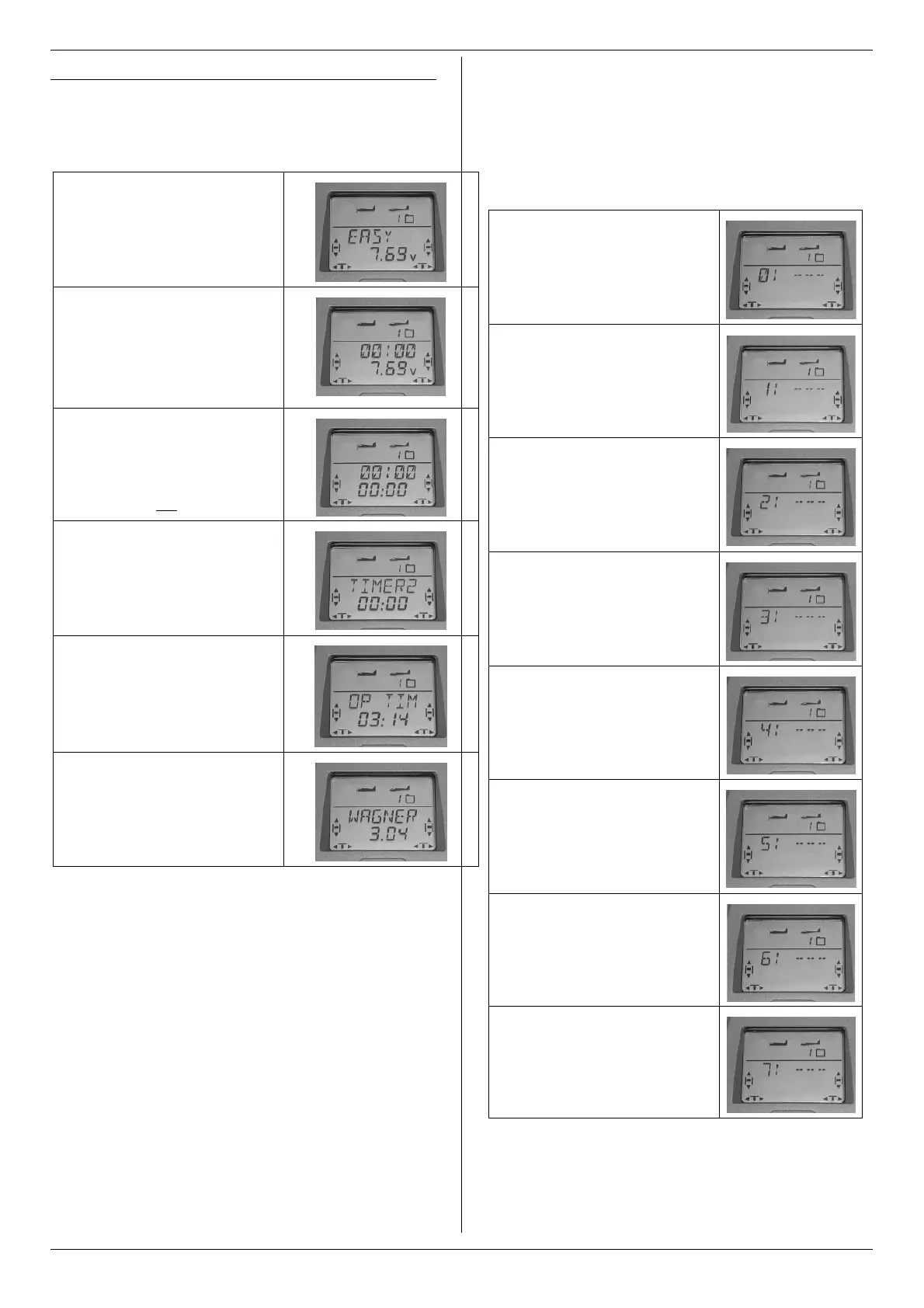

12.2. The INFO displays
The following tables show the INFO displays, and the
information they provide.
You can “leaf through” the INFO displays by turning (3
4) the 3-D digi-adjuster:
INFO 1
Model type symbols
Model memory number
Model name
Transmitter battery voltage
INFO 2
Model type symbols
Model memory number
Timer 1
Transmitter battery voltage
ª resets Timer 1 *
INFO 3
Model type symbols
Model memory number
Timer 1
Timer 2
ª resets Timers 1 and
2 *
INFO 4
Model type symbols
Model memory number
Timer 2
ª resets Timer 2 *
INFO 5
Model type symbols
Model memory number
Transmitter operating time
INFO 6
Model type symbols
Model memory number
Owner’s name (if entered)
Firmware version
* A long press (ª) on the 3-D digi-adjuster resets the
various timers in INFO displays 2 to 4.
INFO displays 7 – 14, which are shown below, allow
up to eight telemetry values to be displayed on the
screen of the C
OCKPIT SX M-LINK transmitter when
it is used in conjunction with a telemetry-capable
M-LINK receiver and external M-LINK sensors.
You can “leaf through” the INFO displays by turning (3
4) the 3-D digi-adjuster, and read off the individual
telemetry values:
INFO 7
Model type symbols
Model memory number
Address 0, unit (or name)
Telemetry value **
INFO 8
Model type symbols
Model memory number
Address 1, unit (or name)
Telemetry value **
INFO 9
Model type symbols
Model memory number
Address 2, unit (or name)
Telemetry value
INFO 10
Model type symbols
Model memory number
Address 3, unit (or name)
Telemetry value
INFO 11
Model type symbols
Model memory number
Address 4, unit (or name)
Telemetry value
INFO 12
Model type symbols
Model memory number
Address 5, unit (or name)
Telemetry value
INFO 13
Model type symbols
Model memory number
Address 6, unit (or name)
Telemetry value
INFO 14
Model type symbols
Model memory number
Address 7, unit (or name)
Telemetry value
! Tip:
If you are at one of the INFO displays 8 – 14, a brief
press (r) on the 3-D digi-adjuster switches directly to
the first telemetry display (INFO display 7 / Address 0).
