Example 2
This example demonstrates several scenarios of VLAN use and how the switch will handle VLAN and non-VLAN traffic.

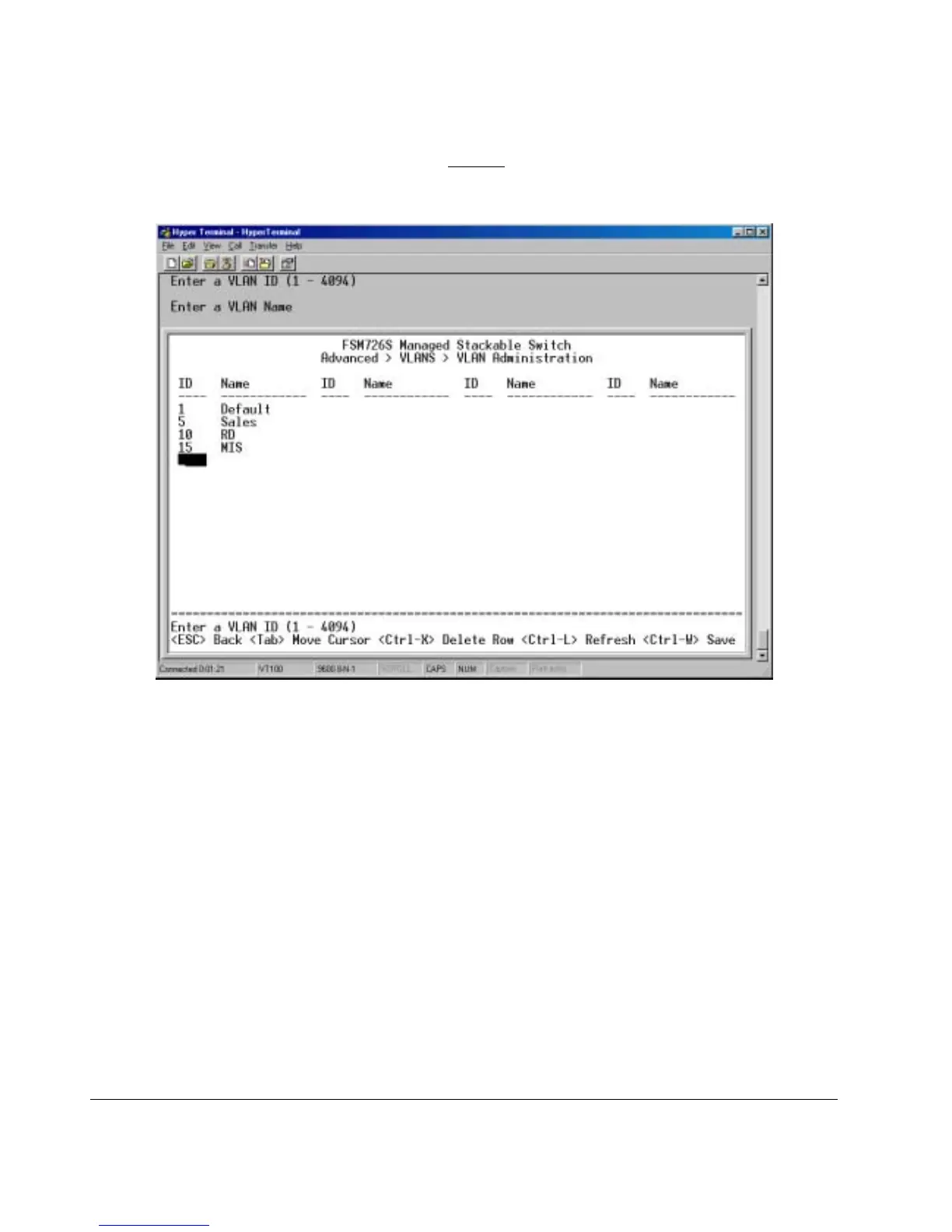

1) Setup the following VLANs:
2)
Configure the VLAN membership. Each image below shows a different VLAN to be setup. Be sure to set all of them as follows.
Note: this example uses a single switch, but the same principles apply to a VLAN that had ports on several switches in a stack
