Set-up> Port Configuration
You can configure the status per port at ‘Port Configuration’ menu.
o
Port Number: The port number on the switch
o
Port Name: The name of the port. This is a user-defined label.
o
Link Status: A green triangle pointing up indicates a valid link, while a red triangle pointing down indicates no link.
o
On/Off: Indicates if the port is enabled or disabled by the Administrator.
o
State: This refers to the Spanning Tree state of the port. Ports will be Blocking (Blk), Listening (Lis), Learning (Lrn),
Forwarding (Fwd) or Disabled (Dis).
o
Speed: Indicates the speed and duplex for the port. The possible entries are Auto-negotiation (Auto); 10 Mbps half duplex
(10M Half); 10 Mbps full duplex (10M Full); 100 Mbps half duplex (100M Half); or 100 Mbps full duplex (100M Full).
o
Flow Control: Indicates whether Flow Control support is set for automatic (Auto) or off (Disabled)

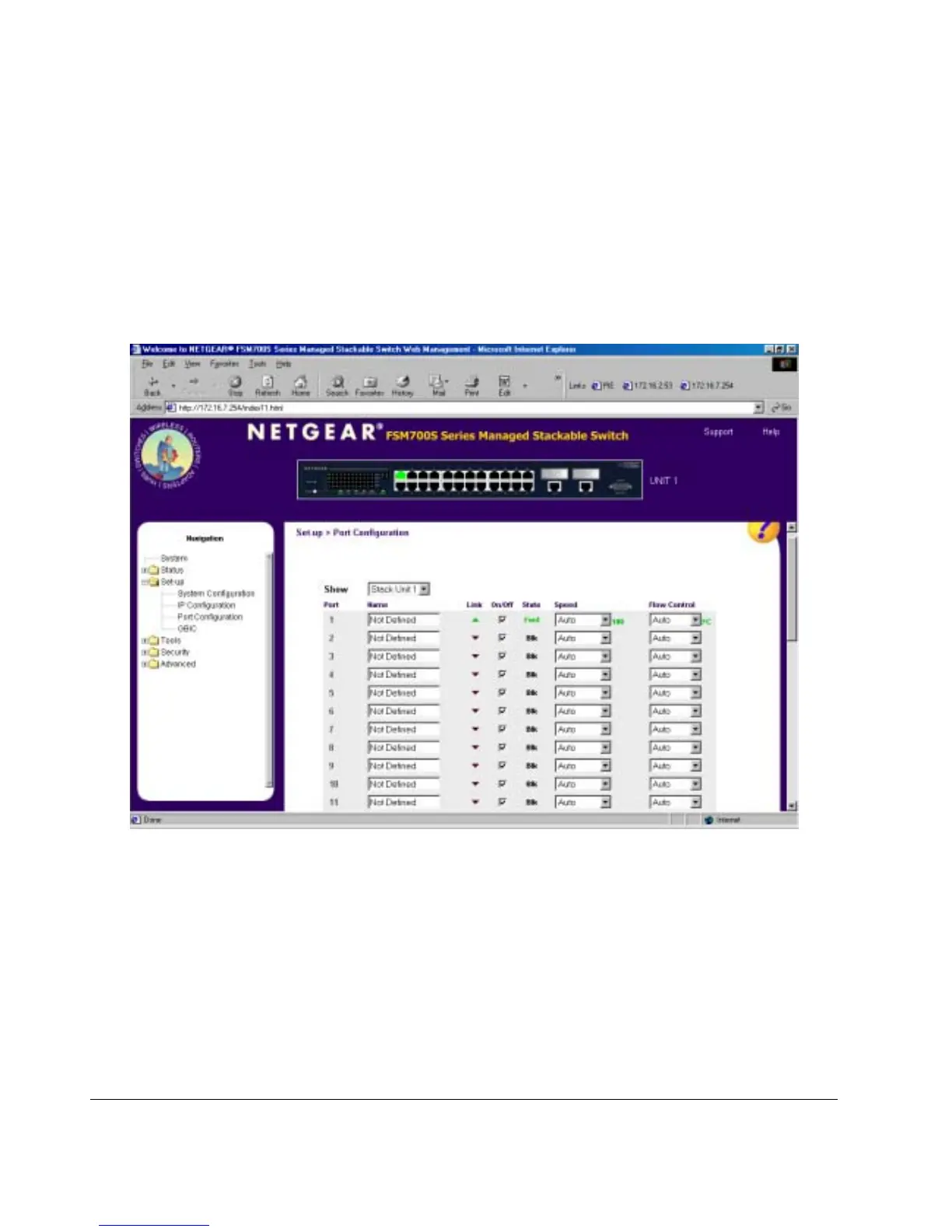

Figure 7-11: Setup: Port Configuration
