Set-up> GBIC
This page allows the user to choose the port type of the gigabit ports. The default is copper (RJ-45). If the user chooses to use a GBIC, the setting
on this page must be appropriately set.
Note: enabling the GBIC connector for a Gigabit Ethernet port disables the built-in 1000BASE-T port.

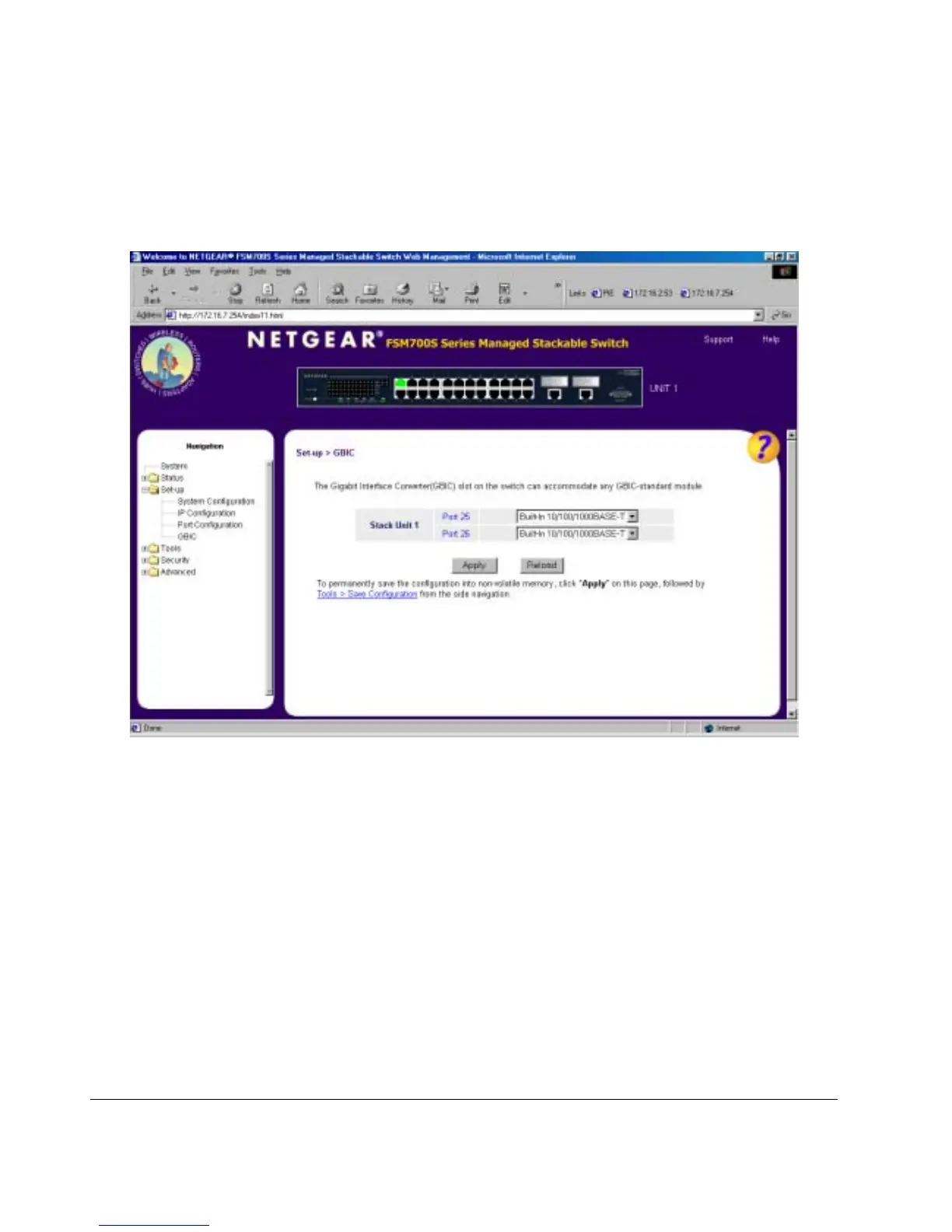

Figure 7-12: Setup: GBIC
