Status > Port Statistics
The Port Statistics Chart shows all the statistic types for one port over time.
o
Port The port on which data will be monitored
o
Refresh Rate The time interval between automatic refreshes
o
Color The color setting for the data
There are 12 kinds of Port Statistics
Inbound Octets: Received bytes
Inbound Unicast Packets: Received unicast packet
Inbound Non-unicast Packets: Received non-unicast packet
Inbound Discards: Received and is being discarded packet.
Inbound Errors: Received and is a error packet
Outbound Octets: Transmitted byte
Outbound Unicast Packets: Transmitted unicast packet
Outbound Non-unicast Packets: Transmitted non-unicast packet.
Outbound Discards: Transmitted and is being discarded packet
Outbound Errors: Transmitted and is an Error packet.
Ethernet Undersize Packets: Less than 64byte length packet
Ethernet Oversize Packets: more than 1518 byte length packet.

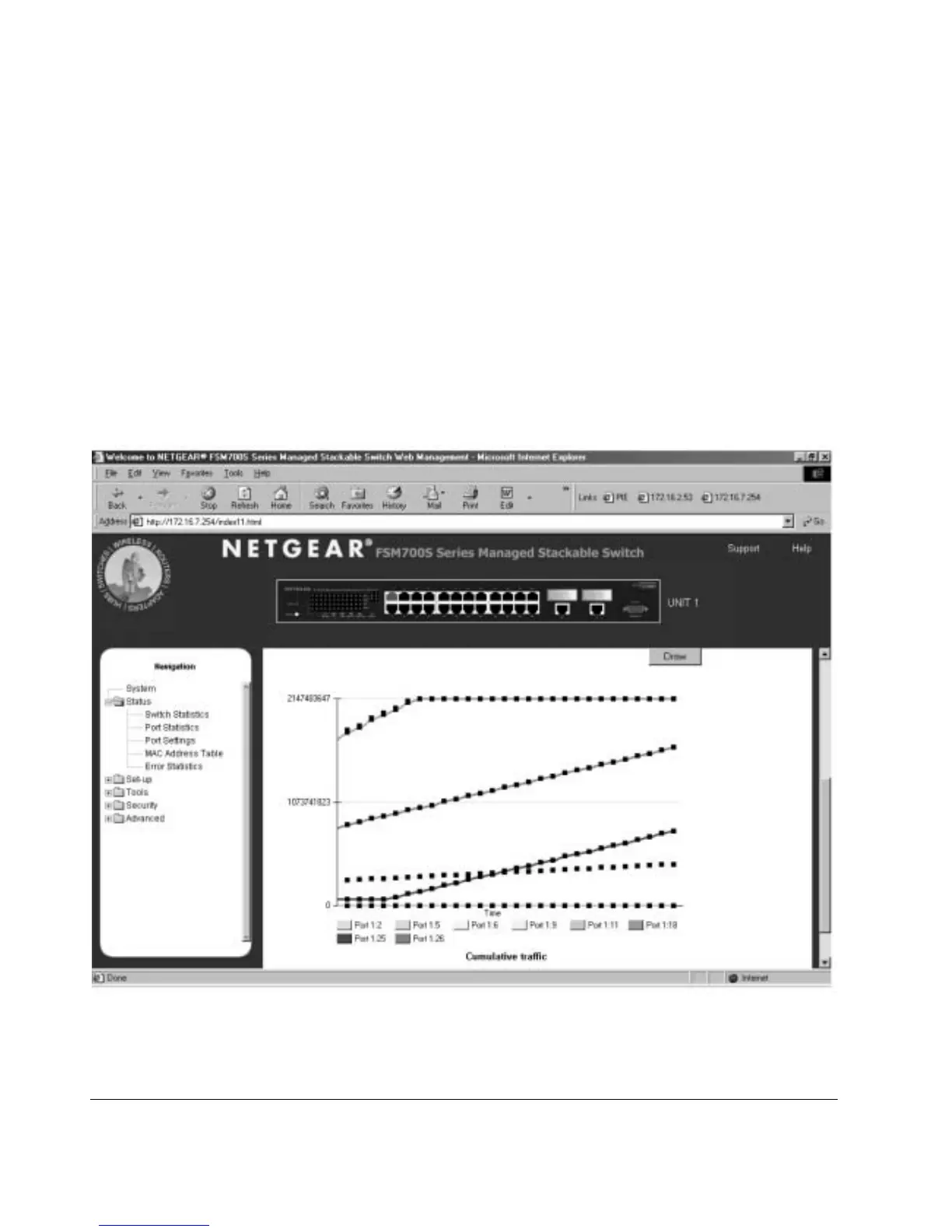

Figure 7-5: Statistics: Port Statiscis
